DH 235 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T29111001001 - T29111999999) FUEL SYSTEM Parts Diagram

Hedge Trimmer, Dual-Sided

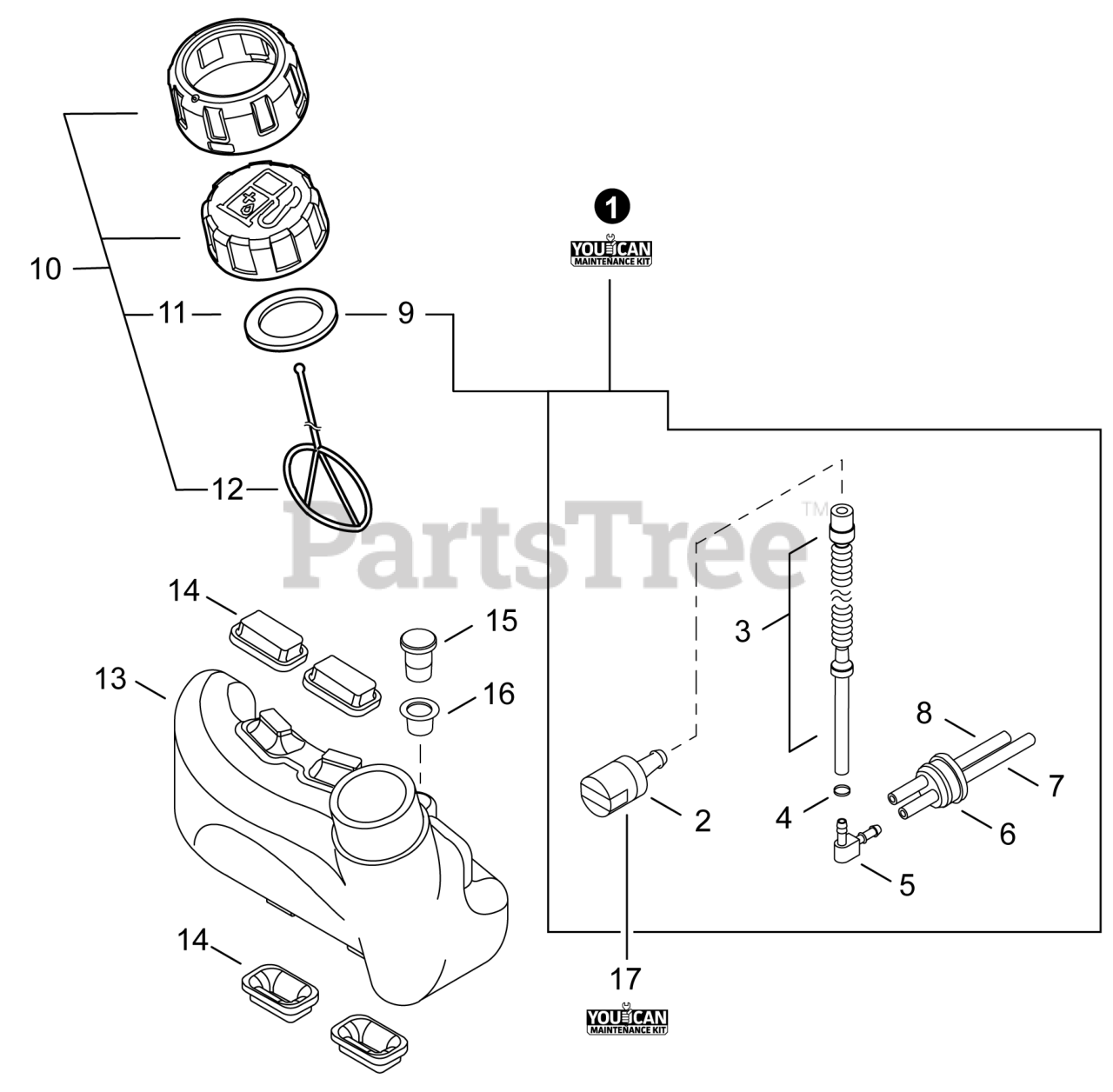

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 84006Y

FUEL SYSTEM KIT - YOUCAN?
(Superseded to Discontinued)

Note: Includes Items 2-9

$

$

Not available

2

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

3

Echo V471003510

PIPE, FUEL
(Superseded to V471003511)

$4.49

$

In Stock, Qty 5

0

4

Echo V490001230

CLIP 6.5 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

6

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

7

Echo V471004060

PIPE, FUEL 3x5x83 BLACK
(Superseded to V471005650)

$3.49

$

In Stock, Qty 20+

0

8

Echo 13201049730

PIPE, FUEL 3x6x85 YELLOW

$2.49

$

In Stock, only 3 left!

0

9

Echo V107000150

GASKET, FUEL CAP

Note: Included in Fuel System Kit

$4.49

$

In Stock, Qty 20+

0

10

Echo P021041580

CAP ASSY, FUEL

Note: Includes Items 11-12

$8.49

$

In Stock, only 2 left!

0

11

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

12

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

13

Echo A350001952

TANK, FUEL
(Superseded to A350001953)

$40.99

$

Usually ships in 2-4 days

0

14

Echo V420004490

CUSHION

$0.99

$

In Stock, Qty 11

0

15

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

16

Echo V137000000

GROMMET, FUEL
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

17

Echo 84014Y

TUNE-UP KIT - YOUCAN?

$18.99

$

Usually ships in 2-4 days

0
