DH 232 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T29013001001 - T29013999999) REAR HANDLE / THROTTLE CONTROL Parts Diagram

Hedge Trimmer, Dual-Sided

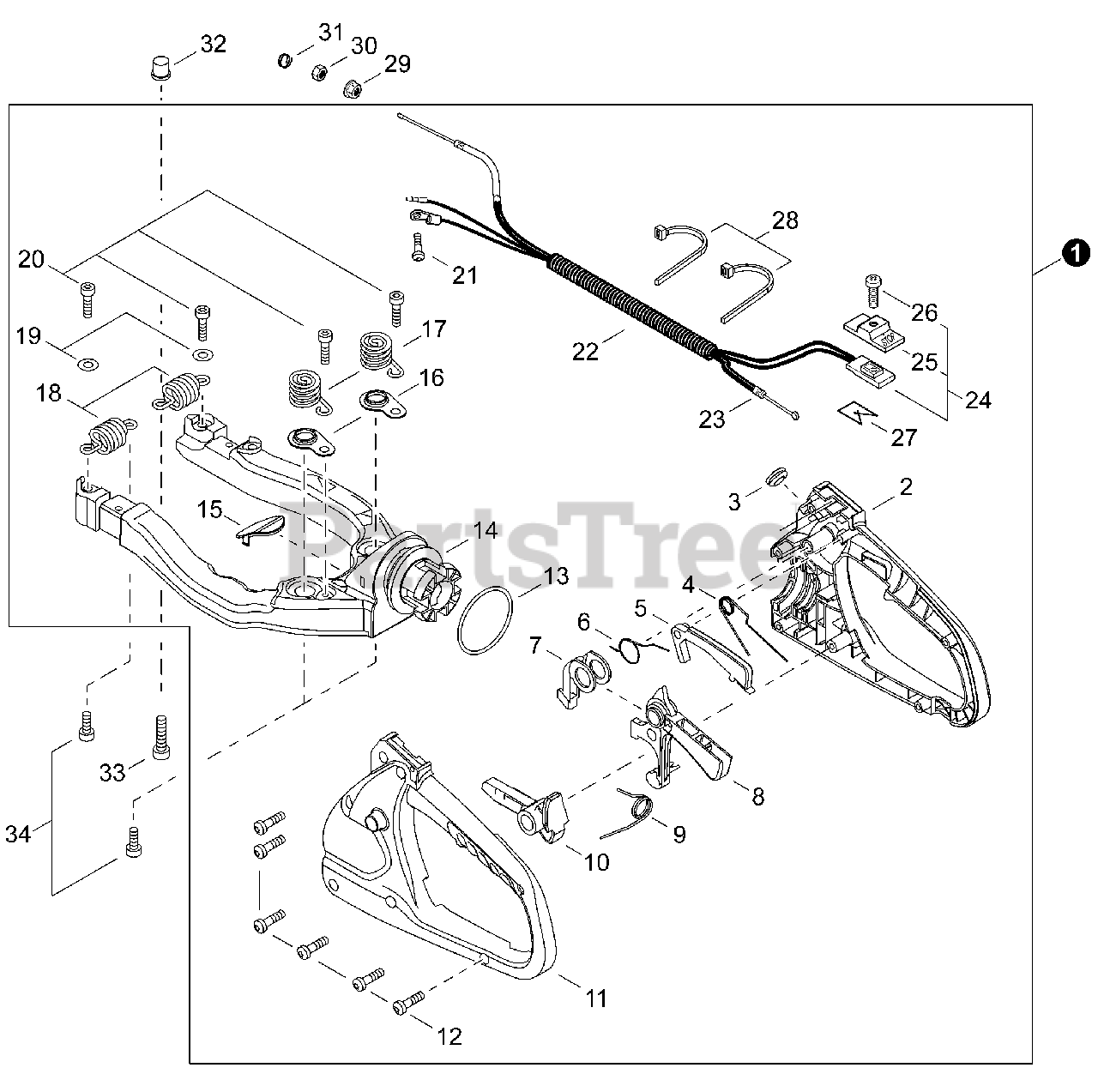

REAR HANDLE / THROTTLE CONTROL Parts Diagram

  • Title
1

Echo P021041590

HANDLE ASSY, REAR
(Superseded to P021041591)

Note: Includes Items 2-28

$94.99

$

Usually ships in 2-4 days

0

2

Echo C410000662

HANDLE, RIGHT REAR

$12.99

$

Usually ships in 2-4 days

0

3

Echo V162000400

GROMMET

$9.49

$

Usually ships in 2-4 days

0

4

Echo V452000660

SPRING, TORSION

$1.99

$

Usually ships in 2-4 days

0

5

Echo C460000220

LOCKOUT, THROTTLE

$14.99

$

Usually ships in 2-4 days

0

6

Echo V452000650

SPRING, COIL

$1.99

$

Usually ships in 2-4 days

0

7

Echo C453000370

LEVER, THROTTLE

$15.99

$

Usually ships in 2-4 days

0

8

Echo C450000560

TRIGGER, THROTTLE

$20.99

$

Usually ships in 2-4 days

0

9

Echo V452000670

SPRING, TORSION

$1.99

$

Usually ships in 2-4 days

0

10

Echo C661000130

LEVER, HANDLE RELEASE

$2.99

$

Usually ships in 2-4 days

0

11

Echo C410001220

HANDLE, LEFT REAR

$9.99

$

Usually ships in 2-4 days

0

12

Echo V804000010

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 16

0

13

$2.99

$

Usually ships in 2-4 days

0

14

Echo C600001191

FRAME
(Superseded to C600001192)

$22.99

$

In Stock, Qty 5

0

15

Echo C411000111

COVER, HANDLE

$9.99

$

In Stock, only 1 left!

0

16

Echo V456000150

HOLDER, SPRING

$1.99

$

Usually ships in 2-4 days

0

17

Echo V450001830

SPRING, COMPRESSION

$5.49

$

Usually ships in 2-4 days

0

18

Echo V450001820

SPRING, COMPRESSION

$7.49

$

In Stock, only 4 left!

0

19

$0.99

$

In Stock, only 2 left!

0

20

Echo V806000000

BOLT, TORX 6×20

$1.99

$

In Stock, Qty 5

0

21

Echo V804000030

BOLT, TORX 4×8

$0.99

$

In Stock, Qty 16

0

22

Echo V475004030

TUBE, PROTECTIVE

$2.49

$

Usually ships in 2-4 days

0

23

Echo V430003890

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0

24

Echo P021041650

SWITCH, ON-OFF

Note: Includes Items 25-26

$7.49

$

In Stock, only 2 left!

0

25

Echo A444000050

KNOB, SWITCH - RED

$0.99

$

Usually ships in 2-4 days

0

26

Echo 9154503010

SCREW 3×10

$0.99

$

In Stock, Qty 20+

0

27

$3.49

$

Usually ships in 2-4 days

0

28

Echo 17812143230

STRAP, TIE

$3.49

$

In Stock, only 4 left!

0

29

Echo 90051800006

NUT, FLANGE 6

$1.49

$

In Stock, Qty 13

0

30

$0.99

$

In Stock, only 2 left!

0

31

$0.99

$

In Stock, Qty 12

0

$2.99

$

Usually ships in 2-4 days

0

33

Echo V806000020

BOLT, TORX 6×25

$0.99

$

In Stock, Qty 20+

0

34

Echo V806000120

BOLT, TORX 6

$0.99

$

Usually ships in 2-4 days

0
