DH 232 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T23311001001 - T23311999999) Fuel System Parts Diagram

Hedge Trimmer, Dual-Sided

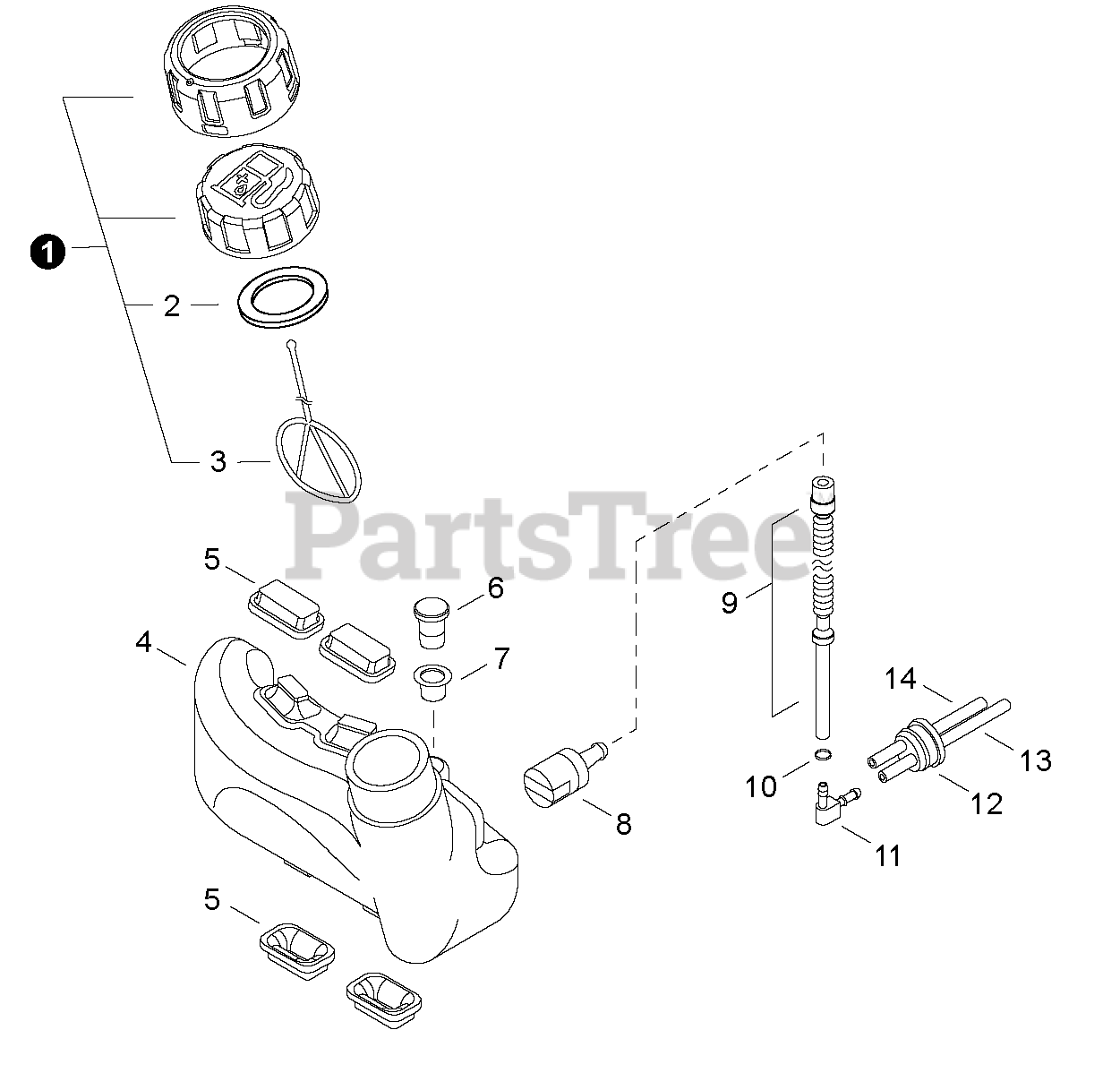

Fuel System Parts Diagram

  • Title

1

Echo P021041580

CAP ASSY

Note: Includes ITEMS 2-3

$8.49

$

In Stock, only 2 left!

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP

$1.49

$

In Stock, Qty 10

0

4

Echo A350001952

TANK, FUEL
(Superseded to A350001953)

$40.99

$

Usually ships in 2-4 days

0

5

Echo V420004490

CUSHION

$0.99

$

In Stock, Qty 11

0

6

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

7

Echo V137000000

GROMMET
(Superseded to V137000001)

$1.49

$

In Stock, only 2 left!

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

9

Echo V471003510

PIPE - FUEL
(Superseded to V471003511)

$4.49

$

In Stock, Qty 5

0

10

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

11

Echo V186000500

CONNECTOR, PIPE

$0.99

$

In Stock, Qty 20+

0

12

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

13

Echo V471004060

PIPE - 3X5X83 -- BLACK
(Superseded to V471005650)

$3.49

$

In Stock, Qty 20+

0

14

Echo 13201049730

PIPE - 3X6X85 -- CLEAR

$2.49

$

In Stock, Qty 7

0
