DH 232 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T22812001001 - T22812999999) Rear Handle, Throttle Control Parts Diagram

Hedge Trimmer, Dual-Sided

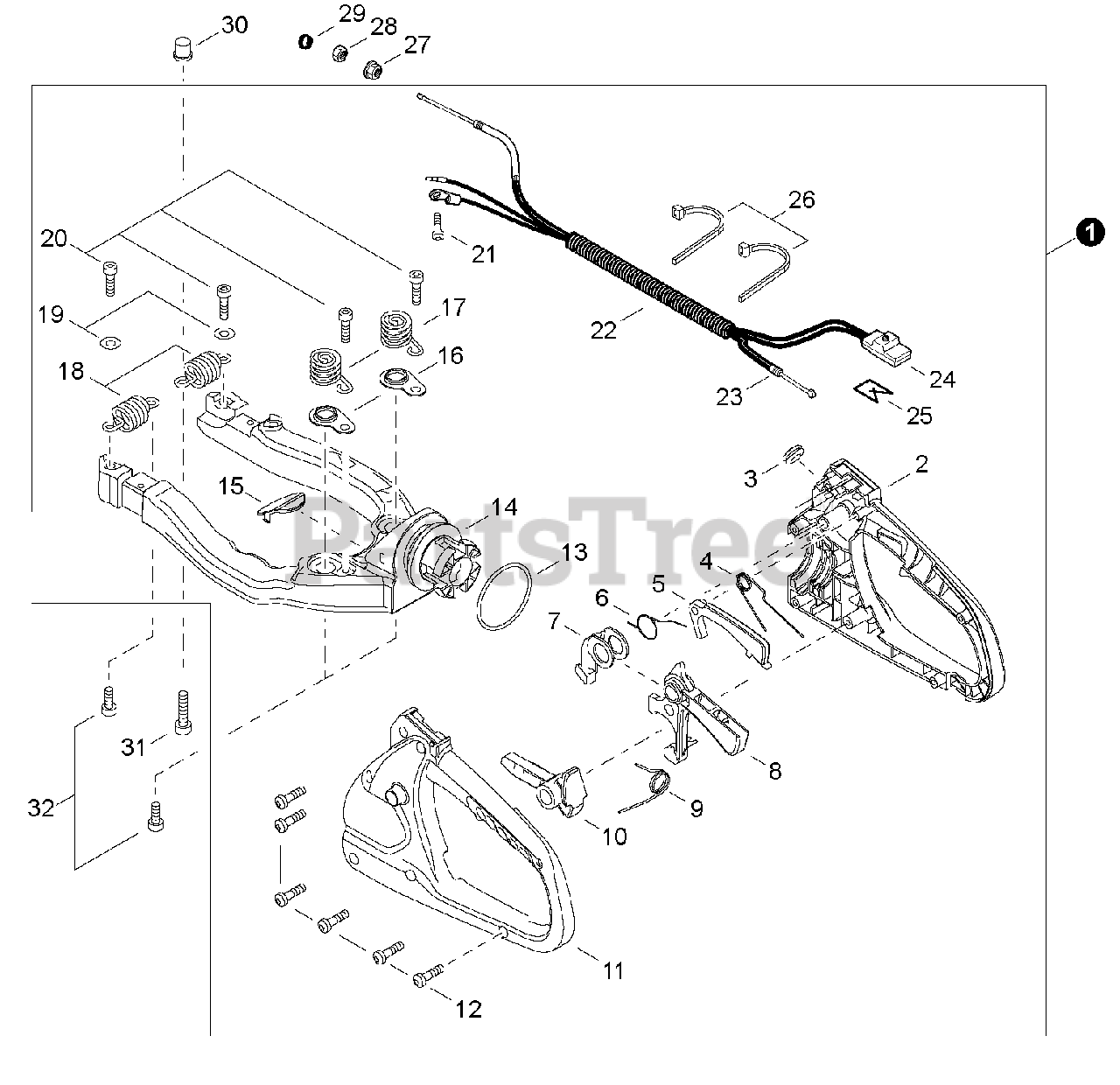

Rear Handle, Throttle Control Parts Diagram

  • Title
1

Echo P021041590

HANDLE ASSY - REAR
(Superseded to P021041591)

Note: Includes ITEMS 2-26

$94.99

$

Usually ships in 2-4 days

0

2

Echo C410000662

HANDLE, REAR - RIGHT

$12.99

$

Usually ships in 2-4 days

0

3

Echo V162000400

GROMMET

$9.49

$

Usually ships in 2-4 days

0

4

Echo V452000660

SPRING, LOCKOUT

$1.99

$

Usually ships in 2-4 days

0

5

Echo C460000220

LEVER, TRIGGER LOCKOUT

$14.99

$

Usually ships in 2-4 days

0

6

Echo V452000650

SPRING, TRIGGER

$1.99

$

Usually ships in 2-4 days

0

7

Echo C453000370

LEVER, THROTTLE

$15.99

$

Usually ships in 2-4 days

0

8

Echo C450000560

TRIGGER, THROTTLE

$20.99

$

Usually ships in 2-4 days

0

9

Echo V452000670

SPRING, TRIGGER

$1.99

$

Usually ships in 2-4 days

0

10

Echo C661000130

LEVER, HANDLE RELEASE

$2.99

$

Usually ships in 2-4 days

0

11

Echo C410001220

HANDLE, REAR - LEFT

$9.99

$

Usually ships in 2-4 days

0

12

Echo V804000010

SCREW - 4X16 -- TAPPING

$0.99

$

In Stock, Qty 16

0

13

$2.99

$

Usually ships in 2-4 days

0

14

Echo C600001191

FRAME
(Superseded to C600001192)

$22.99

$

In Stock, Qty 5

0

15

Echo C411000111

COVER, HANDLE

$9.99

$

In Stock, only 1 left!

0

16

Echo V456000150

HOLDER, SPRING

$1.99

$

Usually ships in 2-4 days

0

17

$5.49

$

Usually ships in 2-4 days

0

18

$7.49

$

In Stock, only 4 left!

0

19

$0.99

$

In Stock, only 2 left!

0

20

Echo V806000000

SCREW - 6X20

$1.99

$

In Stock, Qty 5

0

21

Echo V804000030

SCREW - 4X8

$0.99

$

In Stock, Qty 16

0

22

Echo V475004030

TUBE, PROTECTIVE

$2.49

$

Usually ships in 2-4 days

0

23

Echo V430003890

CABLE, THROTTLE

$19.99

$

In Stock, only 2 left!

0

24

Echo P021041650

SWITCH, IGNITION

$7.49

$

In Stock, only 2 left!

0

25

$3.49

$

Usually ships in 2-4 days

0

26

Echo V495002400

TIE, CABLE

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90051500006

NUT - 6 -- FLANGE

$0.99

$

Usually ships in 2-4 days

0

28

$0.99

$

In Stock, only 3 left!

0

29

$0.99

$

In Stock, Qty 12

0

$2.99

$

Usually ships in 2-4 days

0

31

Echo V806000020

SCREW - 6X25

$0.99

$

In Stock, Qty 20+

0

32

Echo V806000120

SCREW - 6

$0.99

$

Usually ships in 2-4 days

0
