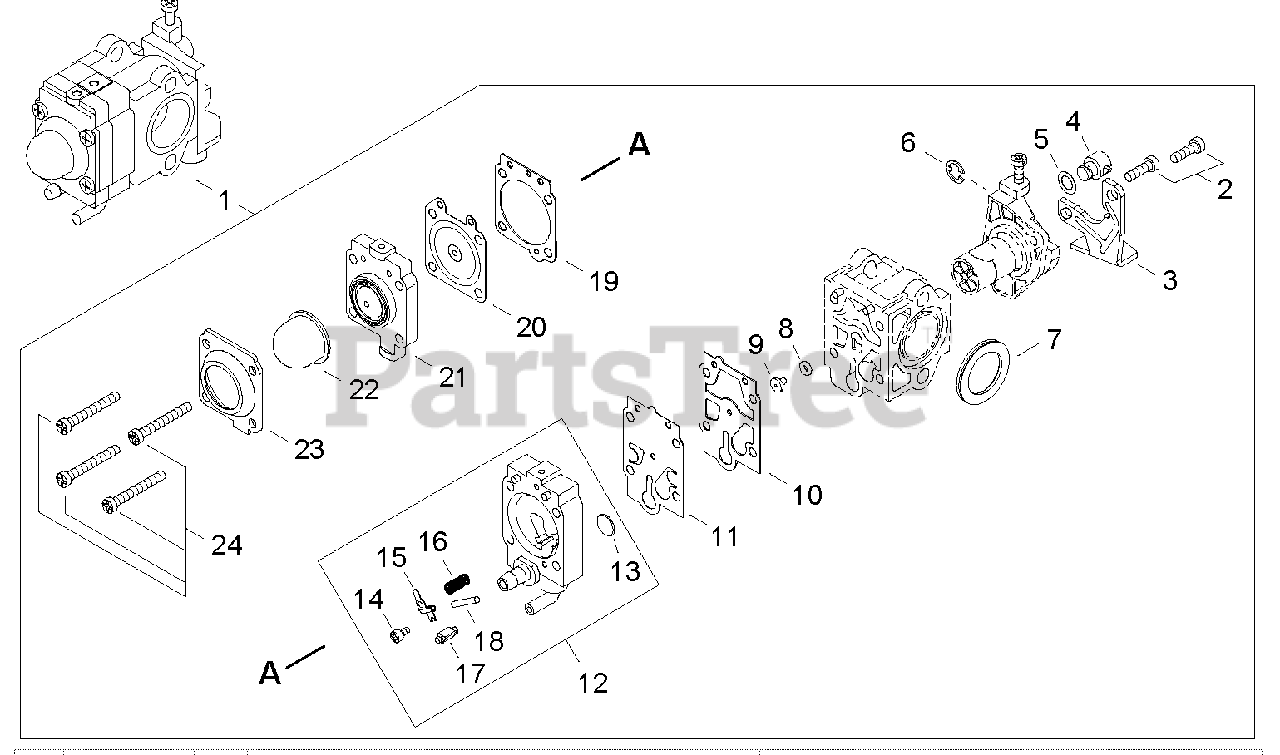

DH 231 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T09213001001 - T09213999999) Carburetor Parts Diagram

Hedge Trimmer, Dual-Sided

Carburetor Parts Diagram

  • Title

1

Echo A021003271

CARBURETOR WYJ-488A

Note: Includes ITEMS 2-24

$98.99

$

Usually ships in 2-4 days

0

2

Echo 12311440630

SCREW

$2.49

$

In Stock, only 3 left!

0

3

Echo 12312854230

BRACKET, THROTTLE CABLE

$5.49

$

Usually ships in 2-4 days

0

4

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

5

Echo 12314954230

WASHER

$0.99

$

In Stock, only 1 left!

0

6

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

7

Echo 12314312110

SEAL

$4.49

$

In Stock, only 3 left!

0

8

Echo 12318305960

O-RING

$1.99

$

In Stock, Qty 5

0

9

Echo 12318444330

JET, MAIN

$3.49

$

In Stock, only 4 left!

0

10

Echo 12312540630

GASKET, PUMP

$4.99

$

In Stock, only 1 left!

0

11

Echo 12311240630

DIAPHRAGM, PUMP

$12.99

$

In Stock, only 1 left!

0

12

Echo 12317905560

BASE, PURGE

Note: Includes ITEMS 13-18

$16.99

$

In Stock, only 1 left!

0

13

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 19

0

14

Echo 12313905560

SCREW, METERING LEVER PIN

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12312338330

LEVER, METERING

$6.49

$

In Stock, only 1 left!

0

16

Echo 12312205560

SPRING, METERING LEVER

$3.99

$

Usually ships in 2-4 days

0

17

Echo 12313719830

VALVE, INLET NEEDLE

$18.99

$

Usually ships in 2-4 days

0

18

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

19

Echo 12314005560

GASKET, METERING

$3.99

$

In Stock, only 2 left!

0

20

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 6

0

21

Echo 12318005560

PURGE BASE ASSY

$7.49

$

In Stock, only 1 left!

0

22

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

23

Echo 12314205560

RETAINER, PURGE BULB

$4.49

$

In Stock, Qty 20+

0

24

Echo 12311005560

SCREW, PUMP COVER

$2.99

$

In Stock, Qty 20+
