DE 40 (25A-564A101) - Cub Cadet Edger (1998) General Assembly Parts Diagram

Edger

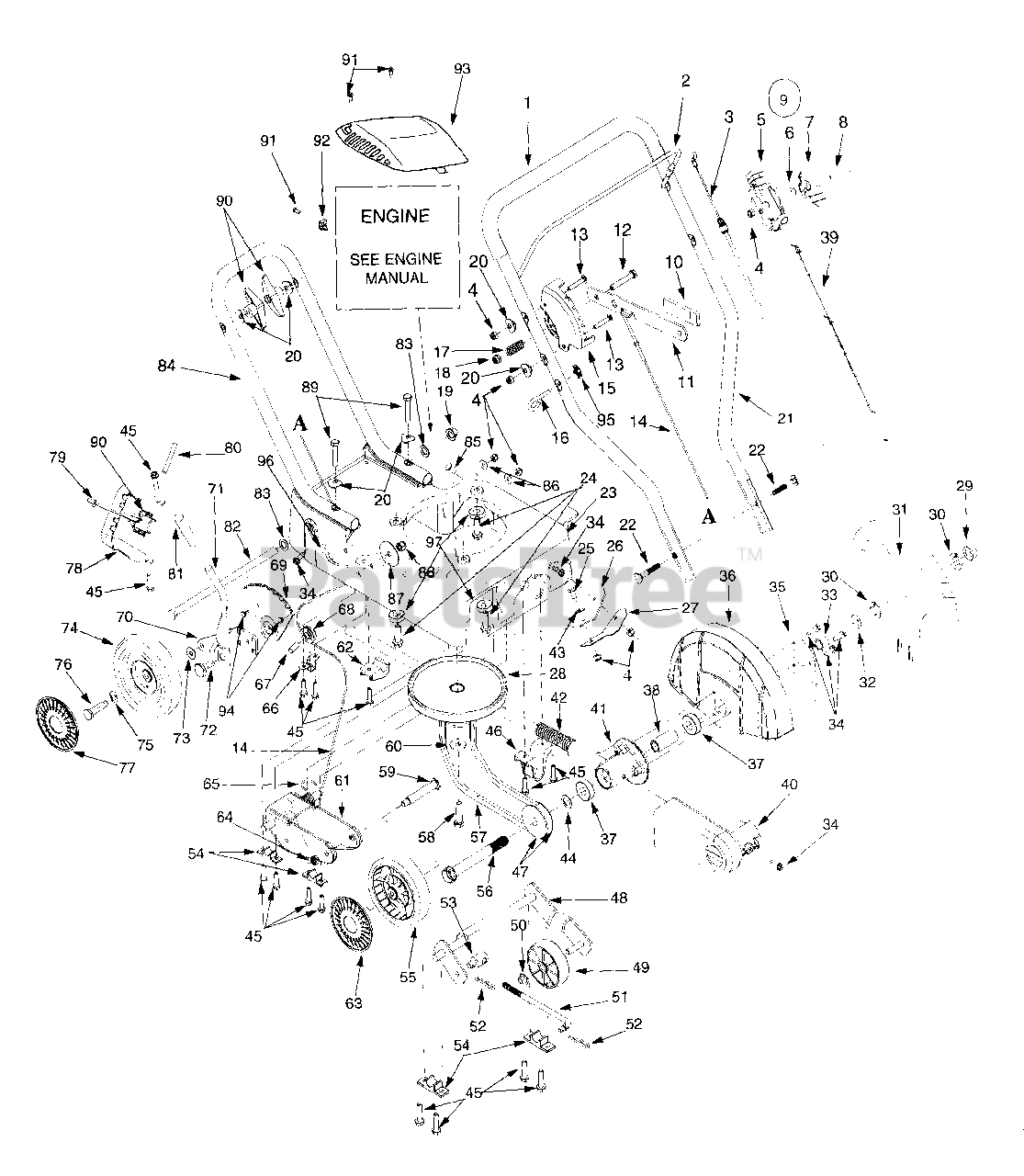

General Assembly Parts Diagram

  • Title

1

Cub Cadet 720-0297

Foam Grip

$

$

Not available

2

Cub Cadet 747-0976

Bail
(Superseded to 747-0976B)

Variations

Cub Cadet 747-0976-0637

Blade Control Bail - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

3

Cub Cadet 746-0966

Control Cable

$

$

Not available

4

Cub Cadet 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

5

Cub Cadet 646-0875

Throttle Hsg.
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

6

Cub Cadet 736-0501

Curved Washer .663 x .980 x .014
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

8

Cub Cadet 710-0605

Screw Oval C-Sunk 1/4-20 x 1.81 Lg.

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 811-00185

Throttle Comp.
(Superseded to 811-0185)

Note: (Inc. Ref. 4,5,6,7,8)

$36.99

$

In Stock, only 1 left!

0

10

Cub Cadet 720-0142

Grip - Black

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 781-0742

Depth Lever
(Superseded to 781-0742-0637)

Variations

Cub Cadet 781-0742-0637

LEVER DEPTH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0116

Hex Screw 5/16-18 x 2.0 Lg.
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0111

Carriage Bolt 1/4-20 x 1.50 Lg.

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 746-0955

Depth Cable

$

$

Not available

15

Cub Cadet 781-0741

Depth Bracket

$

$

Not available

16

Cub Cadet 710-1205

Eye Bolt 1/4-20

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 732-0369

Compression Spring .550 O.D. x 1.3
(Superseded to 932-0369)

$10.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 726-0299

Push Cap x 1/2 Rod

$8.49

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0451

Washer .320 ID x .93 O.D.

$4.49

$

In Stock, Qty 11

0

21

Cub Cadet 749-1079

Upper Handle
(Superseded to 749-1079-0637)

Variations

Cub Cadet 749-1079-0637

HANDLE UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2.0 Lg.

$7.49

$

In Stock, Qty 20+

0

23

Cub Cadet 631-0079

Edger Base Ass'y

$

$

Not available

24

Cub Cadet 710-0502A

Tapp Screw w/Hex Lock Wash 3/8-16

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 710-0289

Hex Screw 1/4-20 x .50 Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

26

Cub Cadet 731-1935

Discharge Shield Deflector

$

$

Not available

27

Cub Cadet 781-0746

Deflector Keeper

$

$

Not available

28

Cub Cadet 756-1150

Engine Pulley
(Superseded to 756-1150A)

$163.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0413

Hex Jam Nut 5/8-18

$6.49

$

In Stock, only 1 left!

0

30

Cub Cadet 736-0317

Bell Washer .63 I.D. x 1.25 O.D. x .18

$7.99

$

In Stock, Qty 20+

0

31

Cub Cadet 781-0748

Star Blade

Variations

Cub Cadet 781-0748-0637

Tri-Cut Edger Blade, Black - POWDER BLACK (0637)

$21.99

$

In Stock, Qty 13

0

$21.99

$

In Stock, Qty 13

0

32

Cub Cadet 712-0318

Hex Jam Nut 5/8-18

$3.49

$

In Stock, Qty 12

0

33

Cub Cadet 750-1163

Spacer .628 x .875 x .545 Lg.

$

$

Not available

34

Cub Cadet 710-0642

Hx Scr. w/Wash.: TT: 1/4-20 x .750 Lg.

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 781-0740

Blade Guide

Variations

Cub Cadet 781-0740-0637

BLADE GUIDE - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 731-1942

Blade Guard

$

$

Not available

37

Cub Cadet 741-0155

Ball Bearing .62 I.D. x 1.38 O.D. x .4
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

38

Cub Cadet 750-1158

Spacer .628 x .875 x 1.818 Lg.

$

$

Not available

39

Cub Cadet 746-0845

Throttle Cable
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

40

Cub Cadet 731-1939

Belt Guard

$

$

Not available

41

Cub Cadet 719-0387

Spindle w/Insert

$

$

Currently unavailable

42

Cub Cadet 732-0862

Compression Spring: Arbor

$

$

Not available

43

Cub Cadet 736-0342

Flat Washer .283 I.D. x .75 O.D. x .030

$7.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 736-0116

Flat Washer .635 I.D. x .93 O.D. x .06
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

45

Cub Cadet 710-1241

Hex Screw w/Wash 1/4

$6.99

$

In Stock, Qty 16

0

46

Cub Cadet 731-1929

Front Rod Handler

$

$

Not available

47

Cub Cadet 756-0449

Pulley
(Superseded to 956-0449)

$14.99

$

In Stock, only 2 left!

0

48

Cub Cadet 681-0140

Curb Whl Bracket Ass'y

Variations

Cub Cadet 681-0140-0637

CURB WHEEL SUPPORT BRACKET(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

49

Cub Cadet 731-1932

Curb Roller

$

$

Not available

50

Cub Cadet 726-0100

Push Cap x 3/8 Rod

$4.49

$

In Stock, Qty 18

0

51

Cub Cadet 747-0991

Rod 5/16-24

$

$

Not available

52

Cub Cadet 714-0104

Cotter Pin .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 711-1171

Ferrule 5/16-24 x .312

$

$

Not available

54

Cub Cadet 731-1931

Slack Bushing .515 Dia x .62

$

$

Not available

55

Cub Cadet 734-1869

Wheel 7" x 2" Link w/BB

$

$

Not available

Cub Cadet 741-0484

Bearing
(Superseded to 941-0484)

Note: (2 per wheel-Incl. w/No. 55), Not Illustrated

$7.49

$

In Stock, only 1 left!

0

56

Cub Cadet 710-1627

Hex Bolt 5/8-18 x 5.25 Lg.

$

$

Not available

57

Cub Cadet 754-0142

V-Belt
(Superseded to 954-0142)

$30.99

$

In Stock, Qty 12

0

58

Cub Cadet 710-1044

Hex Screw: 3/8-24 x 1.50 Lg.

$3.99

$

In Stock, Qty 8

0

59

Cub Cadet 738-0481

Shoulder Screw .500 x 2.62: 3/8-16
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

60

Cub Cadet 736-0452

Bell Wash. .396 I.D. x 1.140 O.D. x .095

$4.99

$

In Stock, Qty 5

0

61

Cub Cadet 681-0141

Front Wheel Brkt Ass'y.

$

$

Not available

62

Cub Cadet 731-1930

Rear Rod Handler

$

$

Not available

63

Cub Cadet 731-1888

Hubcap: Spoke w/Hole Beige

$10.99

$

In Stock, Qty 20+

0

64

Cub Cadet 712-3020

Jam Lock Nut 3/8-16
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

65

Cub Cadet 732-0867

Torsion Spring

$

$

Not available

66

Cub Cadet 781-0747

Cable Keeper

Variations

Cub Cadet 781-0747-0637

KEEPER - POWDER BLACK (0637)

$

$

Not available

$

$

67

Cub Cadet 747-0993

Idler Rod

$

$

Not available

68

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

69

Cub Cadet 781-0745

Index Plate
(Superseded to 781-0783)

$

$

Not available

70

Cub Cadet 781-0744

Pivot Arm

$

$

Not available

71

Cub Cadet 732-0806

Spring Lever

$

$

Not available

72

Cub Cadet 738-0507B

Shoulder Bolt .500 x .434 Lg.

$4.49

$

In Stock, Qty 20+

0

73

Cub Cadet 736-0105

Bell Wash. .401 I.D. x .870 O.D. x .063

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 734-1820

Wheel - 8" x 2" Link Beige w/BB
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-0484

Bearing
(Superseded to 941-0484)

Note: (2 per wheel-Incl. w/No. 74), Not Illustrated

$7.49

$

In Stock, only 1 left!

0

75

Cub Cadet 736-0504

Wave Washer .510 I.D. x .750 D.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

76

Cub Cadet 738-0102

Shoulder Bolt .498 x 1.445: 3/8-16

$9.99

$

In Stock, Qty 10

0

77

Cub Cadet 731-0982A

Hubcap: Radial Spoke Beige
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

78

Cub Cadet 781-0749

Tilt Bracket

$

$

Not available

79

Cub Cadet 681-0139

Adj. Lever Ass'y

$

$

Not available

80

Cub Cadet 715-0121

Pin 1/4 x 2.0" Lg.

$6.99

$

In Stock, Qty 8

0

81

Cub Cadet 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

82

Cub Cadet 711-1278

Curb Axle

$

$

Not available

83

Cub Cadet 736-3068

Flat Wash. .531 I.D. x .875 O.D. x .06

$6.99

$

In Stock, only 2 left!

0

84

Cub Cadet 749-1078

Lower Handle

Variations

Cub Cadet 749-1078-0637

HANDLE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

85

Cub Cadet 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 736-0211

Flat Wash. .285 I.D. x 1.25 O.D. x .06

$6.99

$

In Stock, only 3 left!

0

87

Cub Cadet 736-3040

Flat Wash. .406 I.D. x 1.92 O.D. x .06

$6.49

$

In Stock, Qty 6

0

88

Cub Cadet 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

89

Cub Cadet 710-3180

Hex Screw 5/16-18 x 1.75 Lg.

$5.49

$

In Stock, Qty 20+

0

90

Cub Cadet 732-0188A

Torsion Spring

$12.99

$

In Stock, Qty 9

0

90

Cub Cadet 720-0241

Wing Knob Nut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

91

Cub Cadet 710-1237

Hex Scr. w/Wash.: 7: #10-32 x .625 Lg.

$4.49

$

Usually ships in 3-6 days

0

92

Cub Cadet 751B213146

Clamp B&S Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

93

Cub Cadet 751B281476

Engine Shroud

$

$

Not available

94

Cub Cadet 710-1637

Screw Std. 1/4-20 x .75 Lg.

$

$

Not available

95

Cub Cadet 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

96

Cub Cadet 781-0758

Base Support

Variations

Cub Cadet 781-0758-0637

SUPPORT ED - POWDER BLACK (0637)

$

$

Not available

$

$

97

Cub Cadet 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0
