DE 14542RB A - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

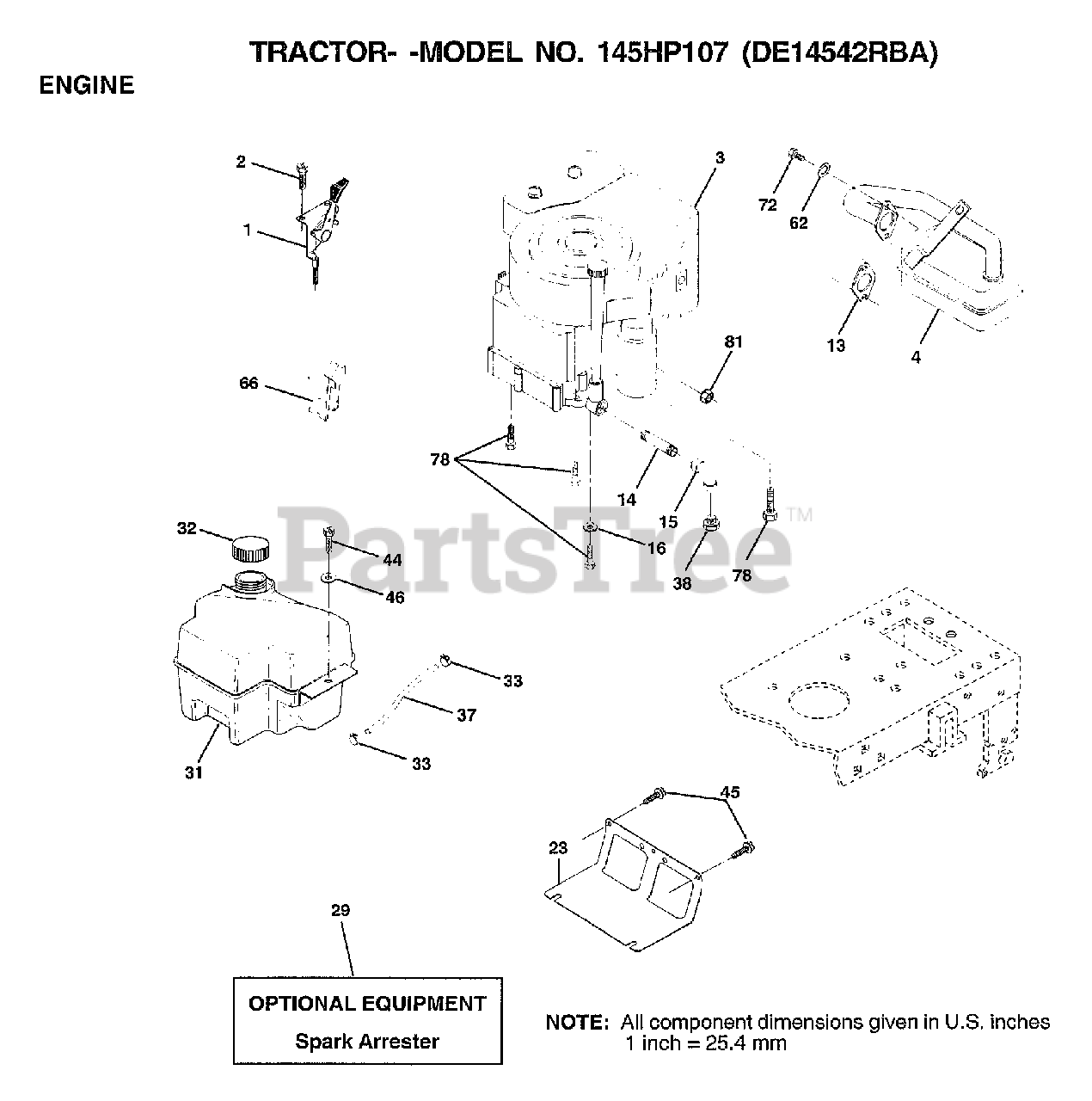

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 141359

CONTROL.THTL.23.5
(Superseded to 532170865)

$27.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

4

Electrolux/AYP 137352

MUFFLER
(Superseded to 532137352)

$45.99

$

In Stock, only 4 left!

0

13

Electrolux/AYP 165291

SUB= 272293
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

15

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 169837

SHIELD BROWNING
(Superseded to 532169837)

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

31

Electrolux/AYP 161911

TANK.FUEL.FRONT.
(Superseded to 532180645)

$

$

Not available

32

Electrolux/AYP 140527

CAP ASM FUEL
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 137040

LINE FUEL
(Superseded to 532137040)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

44

Electrolux/AYP 17670412

SCREW
(Superseded to 817670412)

$6.49

$

In Stock, only 2 left!

0

45

Electrolux/AYP 17000612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

46

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 127951

"STOP,DASH THROTT"
(Superseded to 539127951)

$2.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 71070512

SCREW
(Superseded to 596134201)

$3.99

$

In Stock, Qty 7

0

78

Electrolux/AYP 17060620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

81

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available
