DE 14542RB A - Electrolux/AYP Lawn Tractor BAGGER Parts Diagram

Lawn Tractor

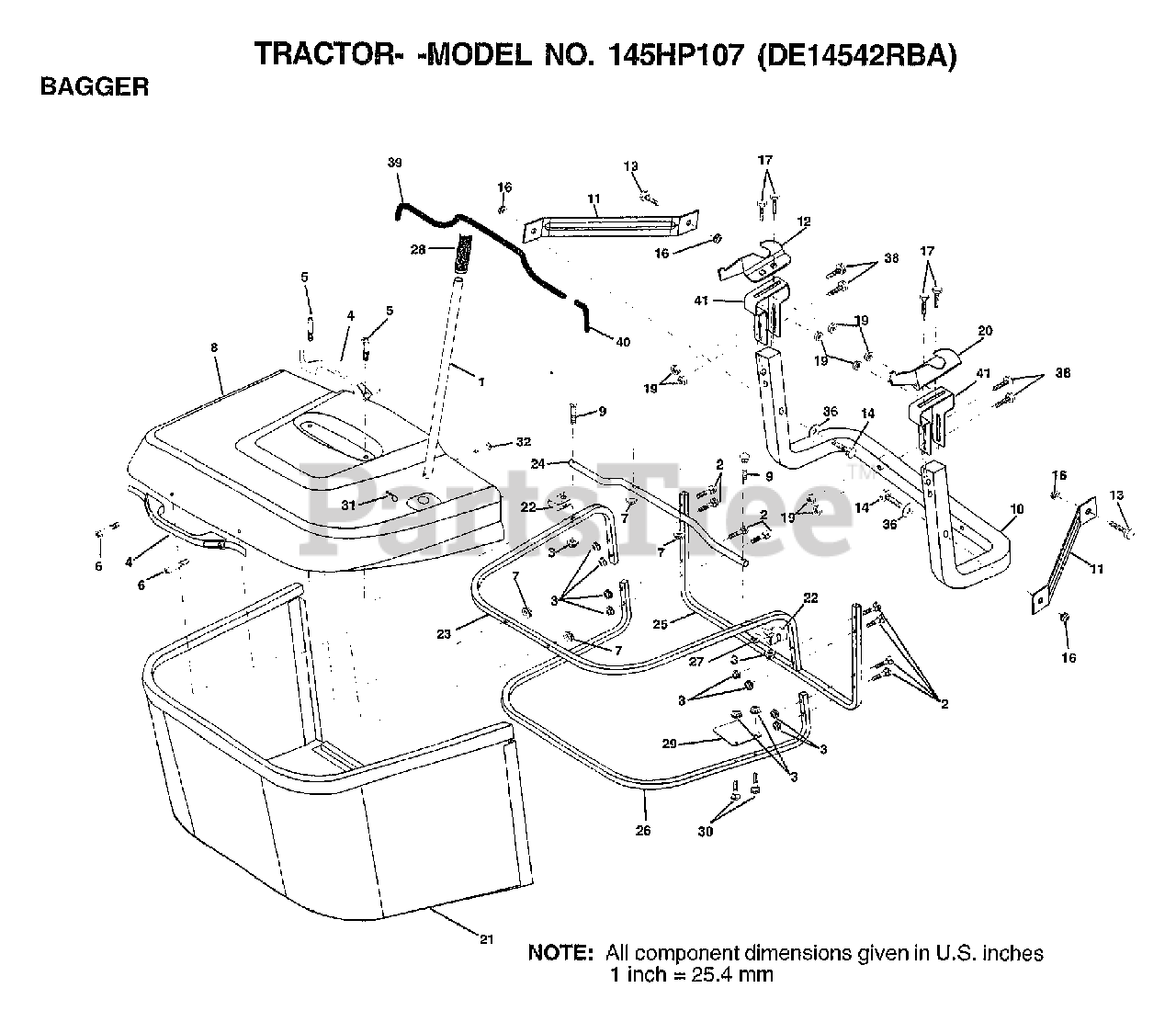

BAGGER Parts Diagram

  • Title

1

Electrolux/AYP 165249

TUBE.HDLE.BAG.CRD
(Superseded to 170690)

$5.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140416

BOLT.CARRIAGE.1/4-20X2.0
(Superseded to 583789801)

$2.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

4

Electrolux/AYP 169916

HANDLE BAGGER
(Superseded to 532169916)

$11.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 74981024

"SCREW,PAN.HEAD"
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

6

Electrolux/AYP 74981032

SCREW

$2.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 73401000

NUT.WIZ.LOCK
(Superseded to 873401000)

$7.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 165715X598

COVER.BAGGER.CRD

$261.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 72140418

BOLT CARRIAGE
(Superseded to 583789901)

$2.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 169688

TUBE SUPPORT BAGGER CRD

$29.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 165719

BRKT.SUPT.UPPER.BAG.CRD
(Superseded to 532165719)

$11.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 169685

BRACKET HORIZ ADJ BGGR LH CRD
(Superseded to 188848)

$2.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 74520640

BOLT.HEX.3/8-16X2-1/2
(Superseded to 596564404)

$3.99

$

In Stock, only 3 left!

0

16

Murray 73900600

SUB= 83923

$

$

Not available

17

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 73900500

"NUT HEX,LOCK,FLAN"
(Superseded to 596135701)

$3.99

$

In Stock, only 3 left!

0

20

Electrolux/AYP 169684

BRACKET HORIZ ADJ BGGR RH CRD
(Superseded to 188847)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 165780

BAG.ASM.CRD
(Superseded to 532406180)

$157.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 165781

BRKT.SIDE.BAG.CRD

$2.49

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 165782

TUBE.UPPER.BAG.CRD

$30.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 165783

TUBE.PIVOT.BAG.CRD
(Superseded to 532165783)

$26.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 165784

TUBE.FT.BAG.CRD
(Superseded to 583098501)

$

$

Not available

26

Electrolux/AYP 165785

TUBE.LOWER.BAG.CRD.

$27.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 169692

BUSHING SNAP BAGGER CRD

$

$

Not available

28

Electrolux/AYP 165787

GRIP.HANDLE.BLACK
(Superseded to 532165787)

$6.99

$

In Stock, only 2 left!

0

29

Electrolux/AYP 165839

PLATE.STOP.BAG.HDLE.CRD
(Superseded to 532165839)

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 72140410

BOLT.CARRIAGE
(Superseded to 583611301)

$2.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

32

Electrolux/AYP 126875X

RIVET.DRILL.1.75
(Superseded to 532126875)

$6.49

$

In Stock, Qty 20+

0

36

Electrolux/AYP 19132016

SUB= 19132012

$

$

Not available

38

Electrolux/AYP 72010520

BOLT.5/16-18X2.5
(Superseded to 872010520)

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 169999

SEAL

$

$

Not available

40

Electrolux/AYP 170000

SEAL

$

$

Not available

41

Electrolux/AYP 169683

BRACKET VERT ADJ BAGGER CRD

$3.99

$

Usually ships in 3-10 days

0
