DE 1336RB A - Electrolux/AYP Lawn Tractor MOWER Parts Diagram

Lawn Tractor

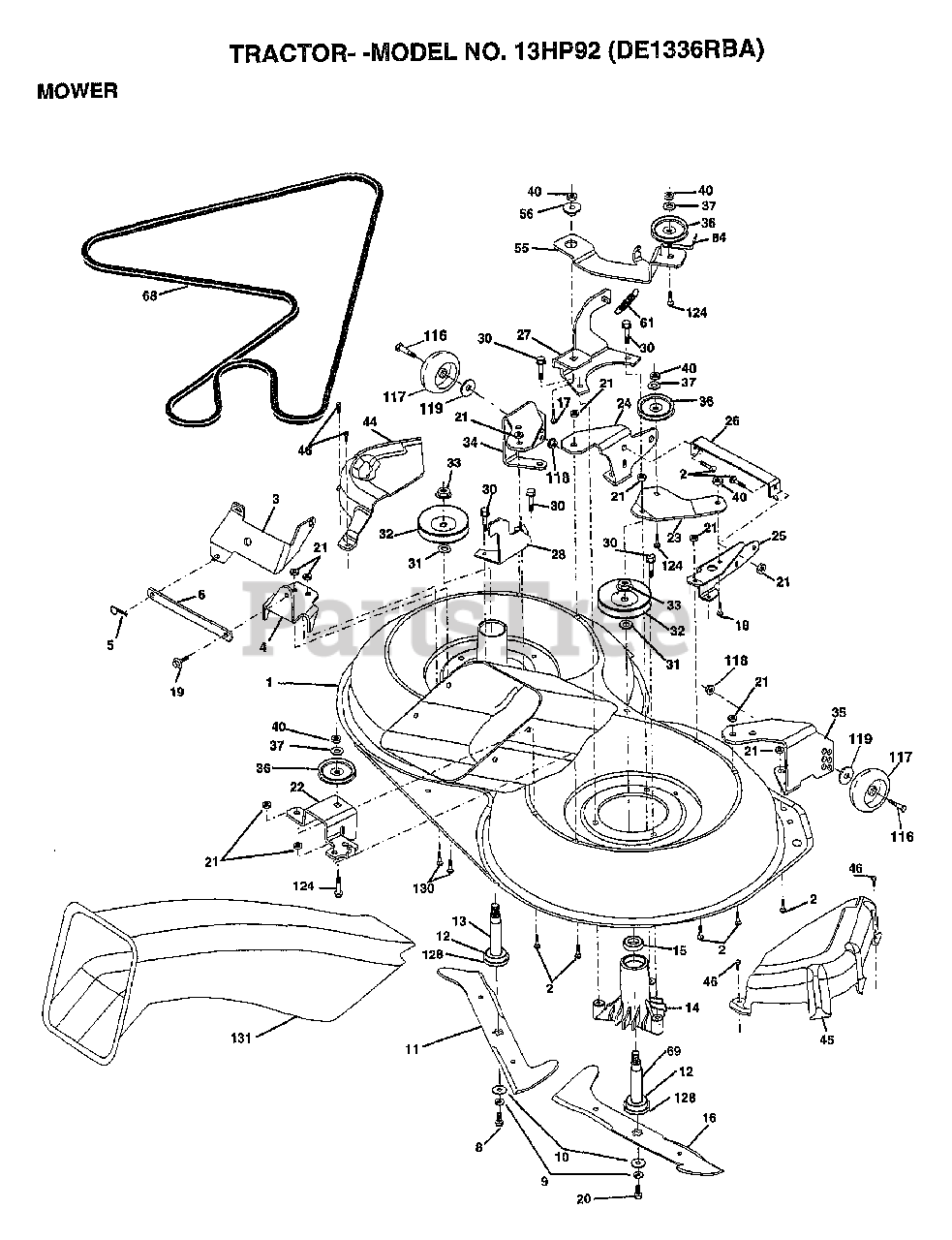

MOWER Parts Diagram

  • Title

1

Electrolux/AYP 165552

HOUSING.ASM.MOWER
(Superseded to 532176029)

$262.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 165569

BRKT.ASM.S-BAR.CHASSIS
(Superseded to 532431864)

$24.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 165558

BRKT.BAR.SWAY.DECK
(Superseded to 532165558)

$

$

Not available

5

Murray 4939M

SUB= 85902

$

$

Not available

6

Electrolux/AYP 165557

BAR.SWAY.92.CRD
(Superseded to 532165557)

$

$

Not available

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 165560

BLADE.3-1.LH.92.CRD
(Superseded to 532426323)

$78.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$34.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 7

0

16

Electrolux/AYP 165561

BLADE.3-1.RH.CRD.92

$23.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

20

Electrolux/AYP 165484

BOLT.3/8-24X1.25
(Superseded to 532165484)

$

$

Not available

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 165243

BRKT.IDLER.SPRT.CRD
(Superseded to 532431169)

$

$

Not available

23

Electrolux/AYP 165446

"BRKT.IDLER.SPRT.RF.92,CRD"
(Superseded to 532165446)

$

$

Not available

24

Electrolux/AYP 165242

BRKT.SUSP.LF.92.CRD
(Superseded to 532165242)

$

$

Not available

25

Electrolux/AYP 165244

BRKT.SUSP.RF.92.CRD
(Superseded to 532165244)

$

$

Not available

26

Electrolux/AYP 165237

BRACE.SUPT.SUSP.FRT.CRD

$4.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 165568

BRKT.ASM.SUSP.RR.92.CRD
(Superseded to 532165568)

$27.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 165567

BRKT.ASM.SUSP.LR.92.CRD
(Superseded to 532165567)

$

$

Not available

30

Electrolux/AYP 157722

"SCREW-THD ROLL,WA"
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 153531

PULLEY.MAND.36/46
(Superseded to 532173434)

$18.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 165239

BRKT.GUAGE.WHL.LF.92.CRD
(Superseded to 583259201)

$20.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 165238

BRKT.GUAGE.WHL.RF.92.CRD

$

$

Not available

36

Electrolux/AYP 146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 165724

COVER.MANDREL.LH.92.CRD
(Superseded to 532165724)

$51.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 165556

COVER.MANDREL.RH.92.CRD
(Superseded to 175539)

$10.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 165445

ARM.IDLER.92.CRD

$9.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

61

Electrolux/AYP 165945

SPRING.TENSION.BELT
(Superseded to 532165945)

$14.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 165555

HEX-BELT.92.MWR.105AA
(Superseded to 180217)

$59.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 165482

SHAFT.ASM.W/LWR.BRG.RH.THD
(Superseded to 532165482)

$68.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 156085

"KEEPER-BELT,IDLER"
(Superseded to 597024901)

$4.99

$

Usually ships in 3-10 days

0

116

Electrolux/AYP 137644

BOLT.SHOULDER
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 133957

WHEEL GAGE DONUT
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

118

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 19121414

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

124

Electrolux/AYP 72110612

BOLT.3/8-16X1.50
(Superseded to 872110612)

$6.49

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 153390

WASHER.FELT.
(Superseded to 532153390)

$6.49

$

In Stock, only 3 left!

0

130

Electrolux/AYP 72110506

SUB= 72270506
(Superseded to 872110506)

$7.49

$

In Stock, Qty 19

0

131

Electrolux/AYP 165661

CHUTE.BAGGER.CRD
(Superseded to 532165661)

$93.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 7

0

Electrolux/AYP 165579

MANDREL.ASM.CRD.LH.THREADS
(Superseded to 532165579)

$91.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 165578

DECK.MOWER.COMPLETE
(Superseded to 583171401)

$849.99

$

Usually ships in 3-10 days

0
