DE 11B36 A - Electrolux/AYP Lawn Tractor FENDER/CHASSIS Parts Diagram

Lawn Tractor

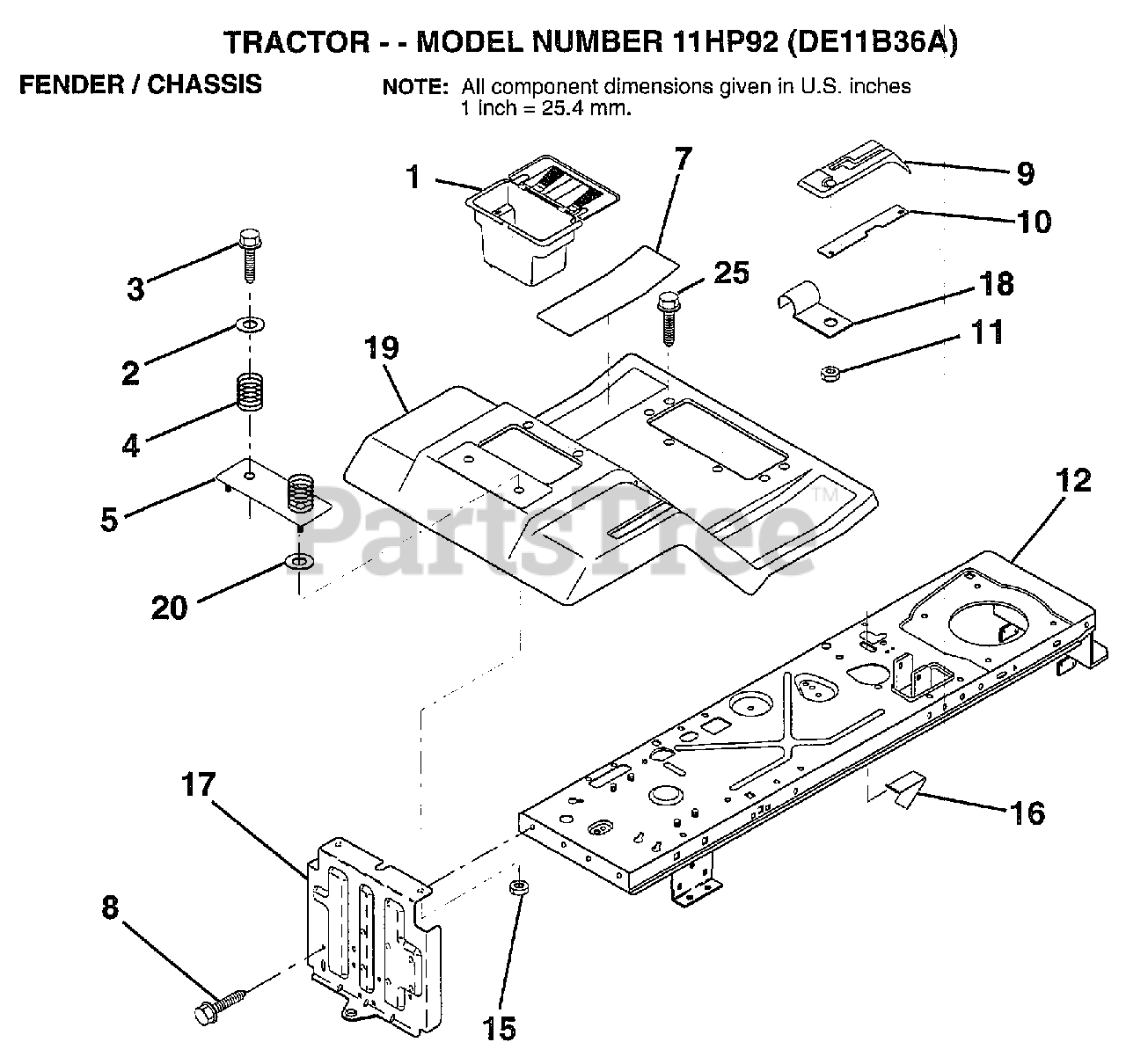

FENDER/CHASSIS Parts Diagram

  • Title
1

Electrolux/AYP 156417

"CASE,BATTERY.MECH"
(Superseded to 532404349)

$

$

Not available

2

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

5

Electrolux/AYP 127115X598

PLATE, BATTERY

$5.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124144X

PAD FOOTREST
(Superseded to 134214)

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 126996X428

CONSOLE.SHT.4SP.

$3.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 139783

PLATE LOCK SHIFT
(Superseded to 532124602)

$

$

Not available

11

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 145190

CHASSIS.WELD.ASM.
(Superseded to 532145190)

$

$

Not available

15

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

16

Electrolux/AYP 141736

SUB= 146613

$

$

Not available

17

Electrolux/AYP 140782

DRAWBAR ASM LR
(Superseded to 532140782)

$

$

Not available

18

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 140955X598

FENDER.FOOTREST

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 17060514

SCREW TAPPING
(Superseded to 584366501)

$1.99

$

Usually ships in 3-10 days

0
