DD 4045 - Toro EarthPro Directional Drill (2009) WRENCH ASSEMBLY Parts Diagram

EarthPro Directional Drill

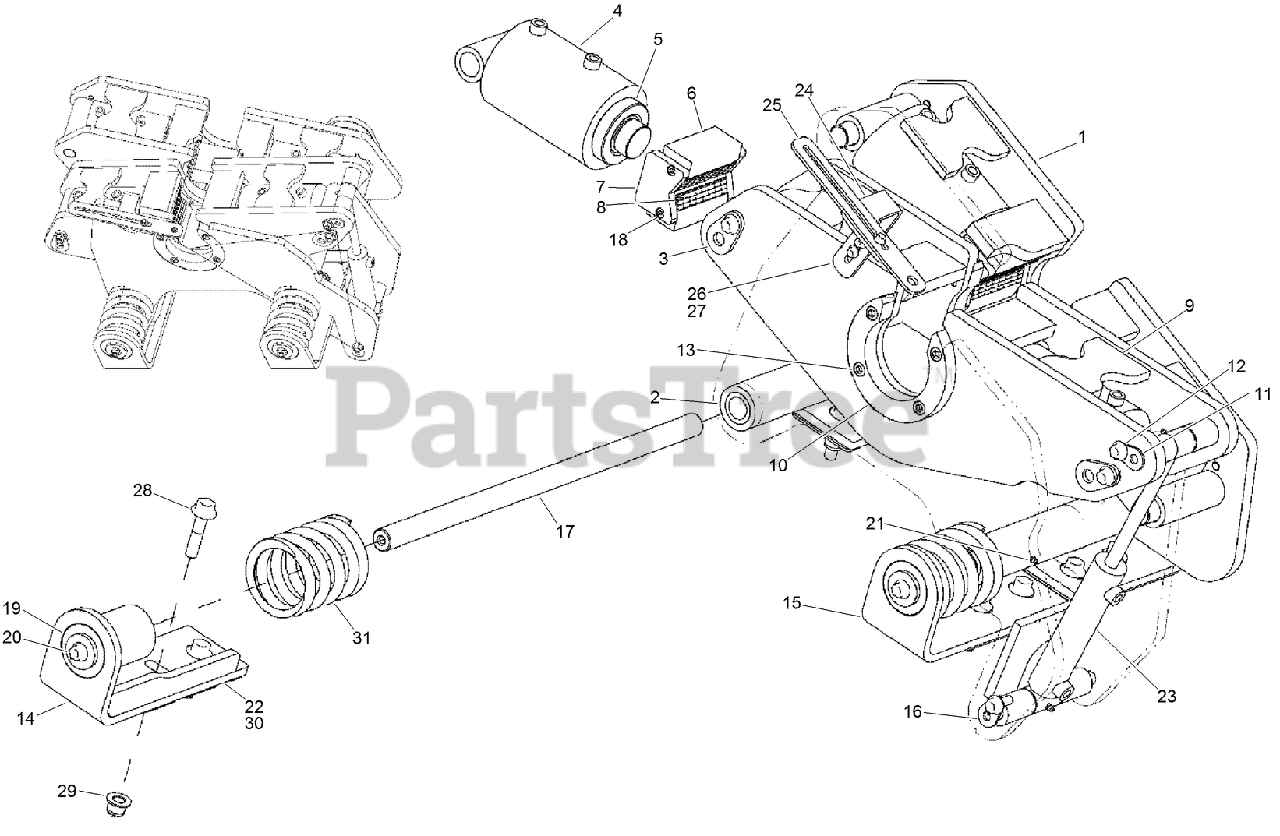

WRENCH ASSEMBLY Parts Diagram

  • Title

Toro AU123931

ASSEMBLY - Wrench

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116983

WRENCH

$

$

Currently unavailable

2

Toro AU119081

BEARING - Flanged Sleeve

$

$

Currently unavailable

3

Toro AU119056

PIN-W/FLAG

$

$

Currently unavailable

4

Toro AU116939

HYD CYLINDER ASM

$

$

Not available

5

Toro AU32GB6010

BUSHING - Cylinder

$

$

Currently unavailable

6

Toro AU119049

HOLDER-DIE, WRENCH

$

$

Currently unavailable

7

Toro AU119046

RETAINER - Wrench Die

$

$

Currently unavailable

8

Toro AU305643

TONG-DIE

$

$

Currently unavailable

9

Toro AU116999

WELDMENT - Wrench

$

$

Currently unavailable

10

Toro AU119038

GUIDE - Wrench

$

$

Currently unavailable

11

Toro AU32GB6225

PIN-RETAINNG

$

$

Currently unavailable

12

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

13

Toro AU861-12025

SCREW - Soc Hd M12 x 25 Class 12.9 BLO
(Superseded to 93-8752)

$9.49

$

Usually ships in 3-6 days

0

14

Toro AU123858

BRACKET - Wrench Mounting

$

$

Currently unavailable

15

Toro AU123857

BRACKET - Wrench Mounting

$

$

Currently unavailable

16

Toro AU32GB6226

PIN-RETAINING

$

$

Not available

17

Toro AU123860

PIN-WRENCH

$

$

Currently unavailable

18

Toro AU861-8025

SCREW - Soc Hd, M8 x 25 Class 12.9 BLO

$

$

Currently unavailable

19

Toro AU195-81269

WASHER - 0.531 x 2.000 x 0.25 in CST ZND

$

$

Currently unavailable

20

Toro AU100418

SCREW, METRIC FLANGE FULL - M12 x 50

$

$

Currently unavailable

21

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

22

Toro AU123875

PLATE - Wrench Shim

$

$

Currently unavailable

23

Toro AU8HC10007

HYD CYLINDER ASM

$

$

Currently unavailable

24

Toro AU121079

PLATE - Nozzle Mount

$

$

Currently unavailable

25

Toro AU121080

PLATE - Nozzle Mount

$

$

Currently unavailable

26

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

27

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU100364

SCREW-FLANGE

$15.99

$

Usually ships in 3-6 days

0

29

Toro AU100529

NUT-HHF

$6.99

$

Usually ships in 3-6 days

0

30

Toro AU123846

PLATE, Wrench Shim

$

$

Currently unavailable

31

Toro AU123859

SPRING-COMPRESSION

$

$

Currently unavailable
