DD 4045 - Toro EarthPro Directional Drill (2009) UNDERCARRIAGE ASSEMBLY Parts Diagram

EarthPro Directional Drill

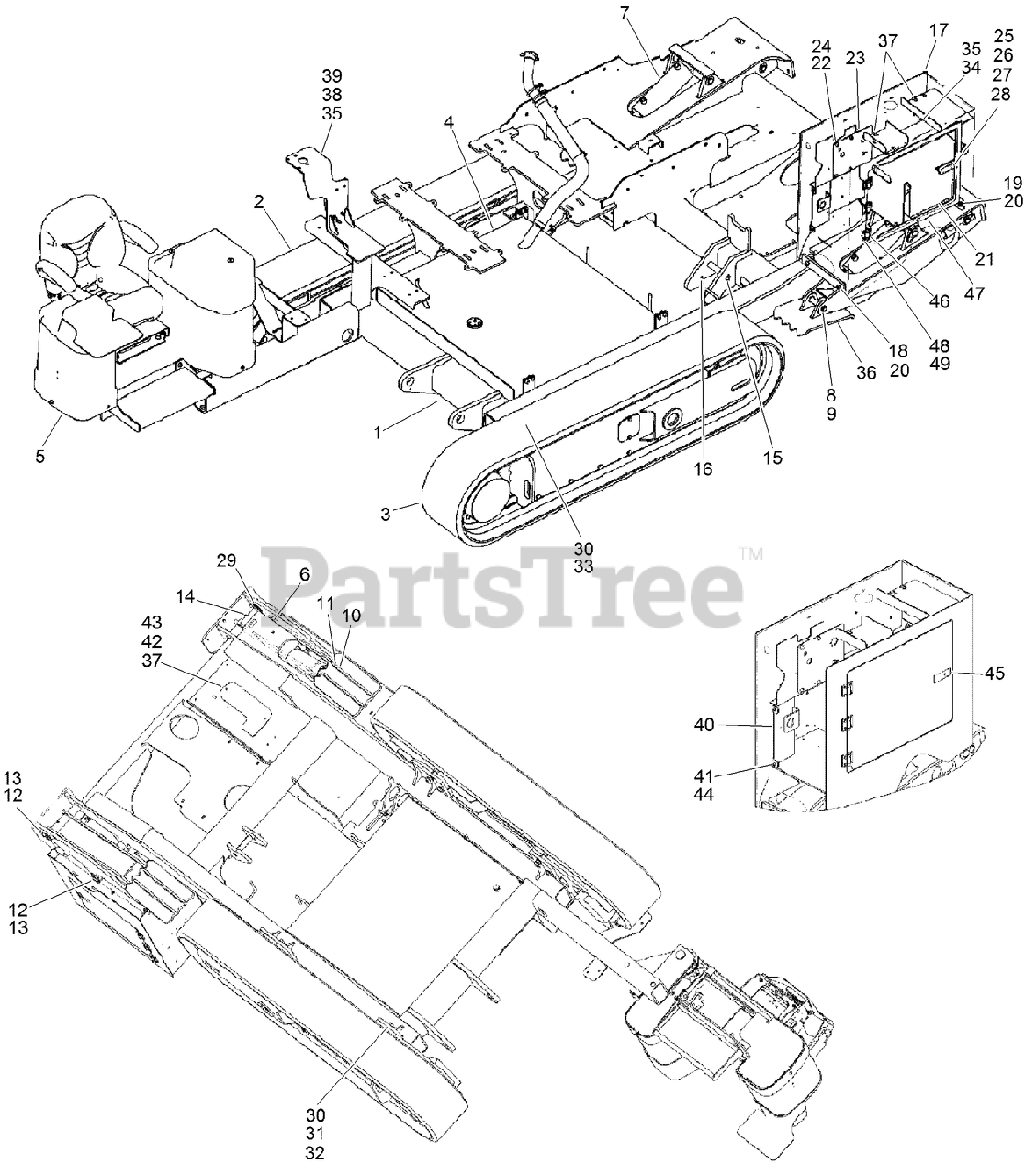

UNDERCARRIAGE ASSEMBLY Parts Diagram

  • Title

Toro AU116140

ASSEMBLY - Undercarriage

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116131

WELDMENT - Chassis

$

$

Currently unavailable

2

Toro AU32GB2405

ASSEMBLY - Track Drive, Right Hand

$

$

Currently unavailable

3

Toro AU32GB2406

ASSEMBLY - Track Drive, Left Hand

$

$

Currently unavailable

4

Toro AU117640

ASSEMBLY - Fuel Tank

$

$

Currently unavailable

5

Toro AU117958

ASSEMBLY - Operators Console

$

$

Currently unavailable

6

Toro AU116295

WELDMENT - Stabilizer Assembly

$

$

Currently unavailable

7

Toro AU116285

HYD CYLINDER ASM

$

$

Currently unavailable

8

Toro AUH434379

PIN (STABILIZER PAD END)

$

$

Currently unavailable

9

Toro AU103-16112

RING-RETAINING
(Superseded to 100-6785)

$4.99

$

Usually ships in 3-6 days

0

10

Toro AUH434380

PIN-STABILIZER (CYLINDER ROD END)

$

$

Currently unavailable

11

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

12

Toro AU116290

PIN-W/FLAG

$

$

Currently unavailable

13

Toro AU100414

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

14

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU111271

PIN-DIPPER CYLINDER TO BOOM

$

$

Not available

16

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

17

Toro AU117613

ASSEMBLY - Console

$

$

Currently unavailable

18

Toro AU100331

SCREW-HHF

$

$

Currently unavailable

19

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

20

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

21

Toro AU117625

PLATE - Cover
(Superseded to AU117625-03)

$

$

Not available

22

Toro AU100862

NUT-U

$4.99

$

Usually ships in 3-6 days

0

23

Toro AU117632

PLATE - Rear Controls Panel

$

$

Currently unavailable

24

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

25

Toro AUD125079

ANGLE-HOLDDOWN, BATTERY

$32.99

$

Usually ships in 3-6 days

0

26

Toro AU117616

PLATE-Battery Hold Down
(Superseded to AU117616-03)

$

$

Not available

27

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$41.99

$

Usually ships in 3-6 days

0

28

Toro AU231-5146

NUT-Serr Flg 3/8-16 UNC GR5 ZND
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

29

Toro AU496-11131

WASHER-HARDENED

$

$

Currently unavailable

30

Toro AU495-11081

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU426-1248

BOLT-hex, 3/4 NC x 3 inch, grade 8
(Superseded to 328-25)

$5.49

$

Usually ships in 3-6 days

0

32

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0

33

Toro AU426-1224

BOLT

$

$

Not available

34

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

35

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

36

Toro AU120109

WELDMENT - Stabilizer Foot

$

$

Currently unavailable

37

Toro AU100861

NUT-U

$6.49

$

Usually ships in 3-6 days

0

38

Toro AU120230

ASSEMBLY - Filter Mount

$

$

Currently unavailable

39

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

40

Toro AU117627

PLATE - Corner

$

$

Currently unavailable

41

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

42

Toro AU122040

COVER - 5 Section Valve

$

$

Currently unavailable

43

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

44

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

45

Toro AU50GB2302

LATCH-TRIGGER, RAISED (W/LOCK)

$

$

Not available

46

Toro AU123695

HINGE

$

$

Currently unavailable

47

Toro AU123696

PLATE - Door

$

$

Currently unavailable

48

Toro AU440-11012

SCREW - PHd Type 1 #10 - 24 x 0.75 CST ZND
(Superseded to 3250-13)

$1.99

$

Usually ships in 3-6 days

0

49

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

$0.99

$

In Stock, only 3 left!

0
