DD 4045 - Toro EarthPro Directional Drill (2009) THRUST FRAME MOUNTING ASSEMBLY Parts Diagram

EarthPro Directional Drill

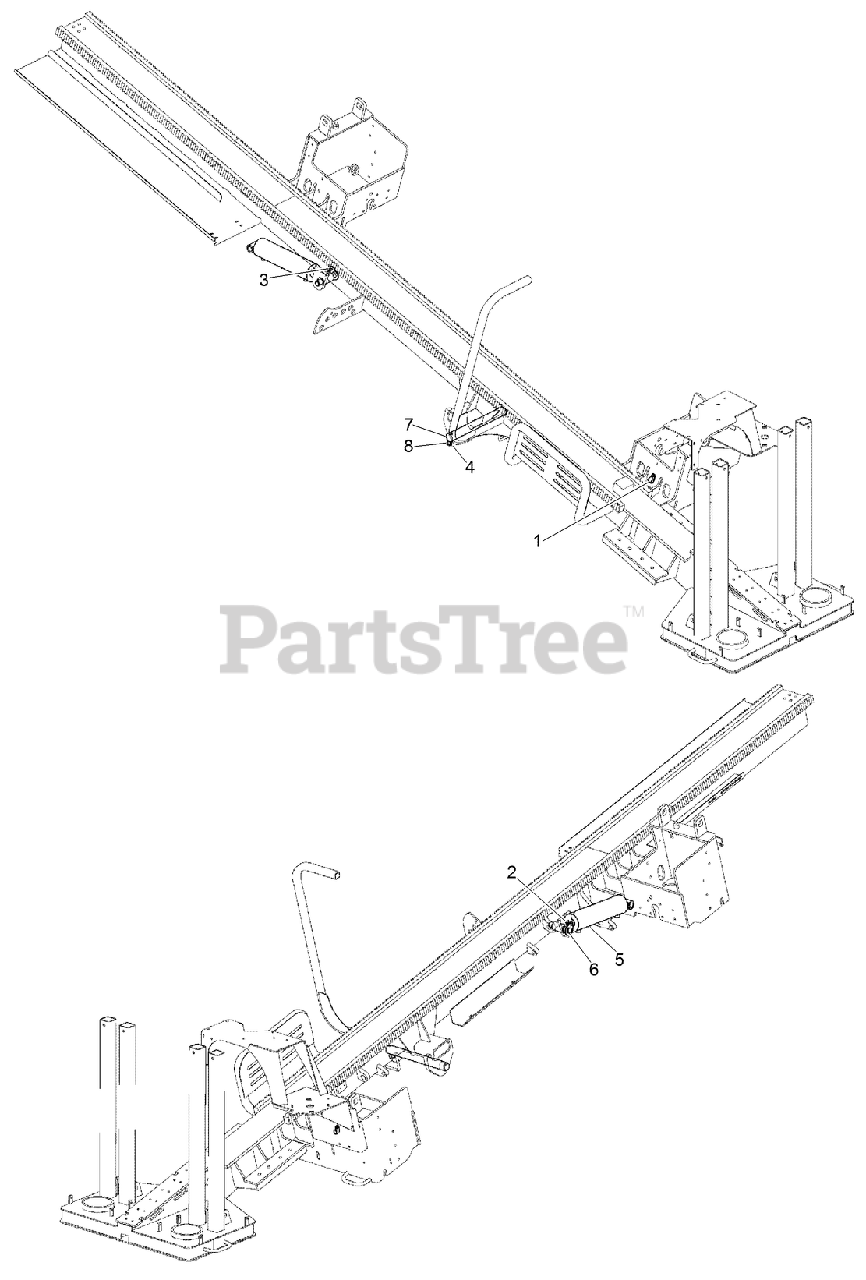

THRUST FRAME MOUNTING ASSEMBLY Parts Diagram

  • Title

Toro AU115522

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU515-25254

CLAMP - Insul 25.4mm M12 Bolt ZND

$

$

Currently unavailable

2

Toro AU100319

SCREW, METRIC FLANGE w/BODY - M8 x 40

$

$

Currently unavailable

3

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

5

Toro AU116296

HYD CYLINDER ASM
(Superseded to 127-0933)

$

$

Not available

6

Toro AU117944

PIN-PIVOT

$

$

Currently unavailable

7

Toro AU118521

PIN-PIVOT, MAIN

$

$

Currently unavailable

8

Toro AUH313981

PIN-RETAINER

$64.99

$

Usually ships in 3-6 days

0
