DD 4045 - Toro EarthPro Directional Drill (2009) THRUST FRAME MIRROR AND ROD LOADER GUARD ASSEMBLY Parts Diagram

EarthPro Directional Drill

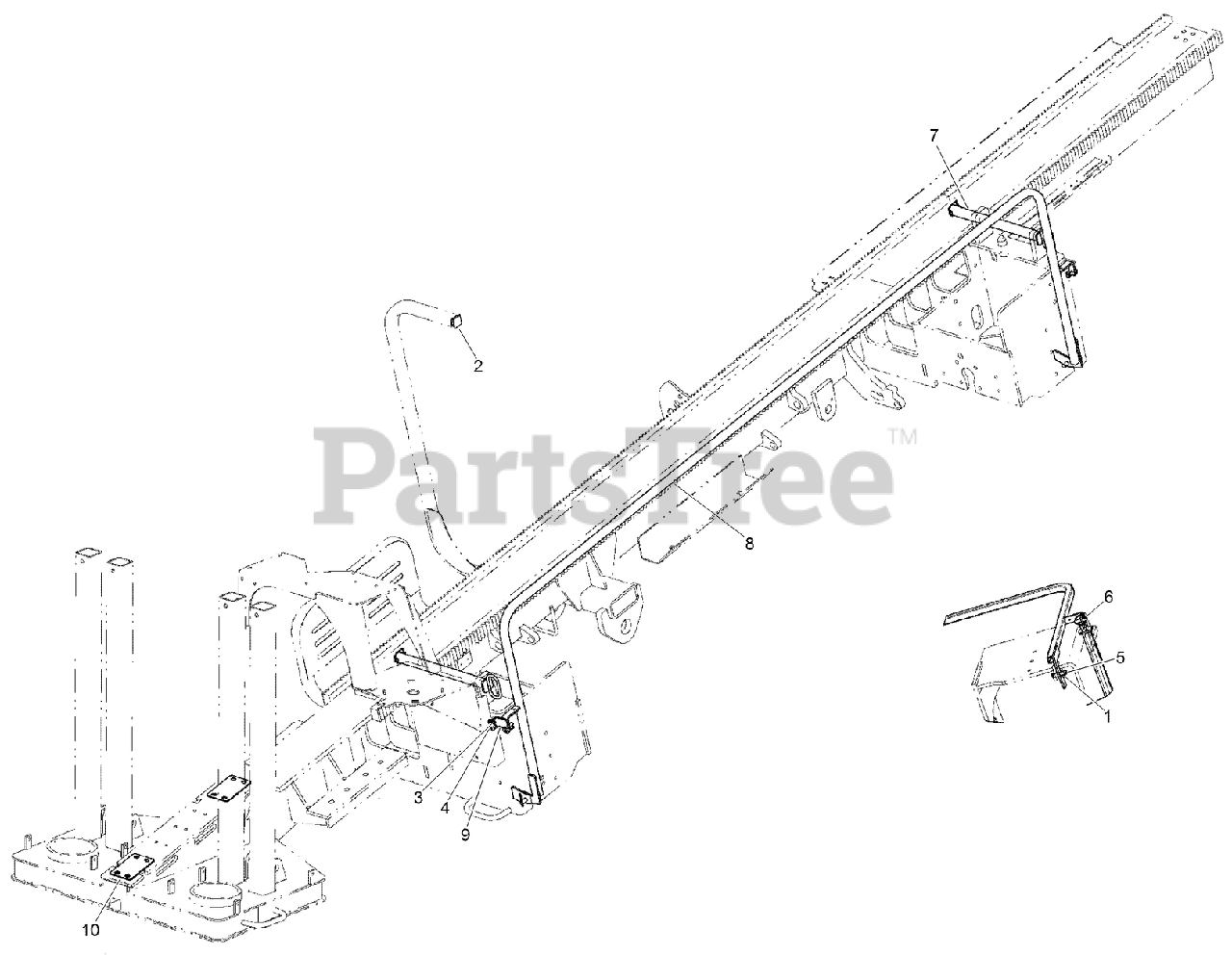

THRUST FRAME MIRROR AND ROD LOADER GUARD ASSEMBLY Parts Diagram

  • Title

Toro AU115522

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU432-1028

PIN-cotter, 5/32 x 1-3/4 inch
(Superseded to 3272-17)

$2.99

$

In Stock, Qty 5

0

2

Toro AU8PP92001

CAP-SQUARE, PLASTIC

$

$

Currently unavailable

3

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

5

Toro AU109964

PIN-CLEVIS

$

$

Currently unavailable

6

Toro AU109970

PIN-SNAP RING

$

$

Currently unavailable

7

Toro AU118581

ASSEMBLY - Rod Box Pin

$

$

Currently unavailable

8

Toro AU119031

ASSEMBLY - Guard

$

$

Currently unavailable

9

Toro AU119037

BRACKET-ANGLE, GUARD

$

$

Currently unavailable

10

Toro AU123409

PLATE-SHIM, BUSHING GUIDE

$

$

Currently unavailable
