DD 4045 - Toro EarthPro Directional Drill (2009) THRUST FRAME CAM 2 ASSEMBLY Parts Diagram

EarthPro Directional Drill

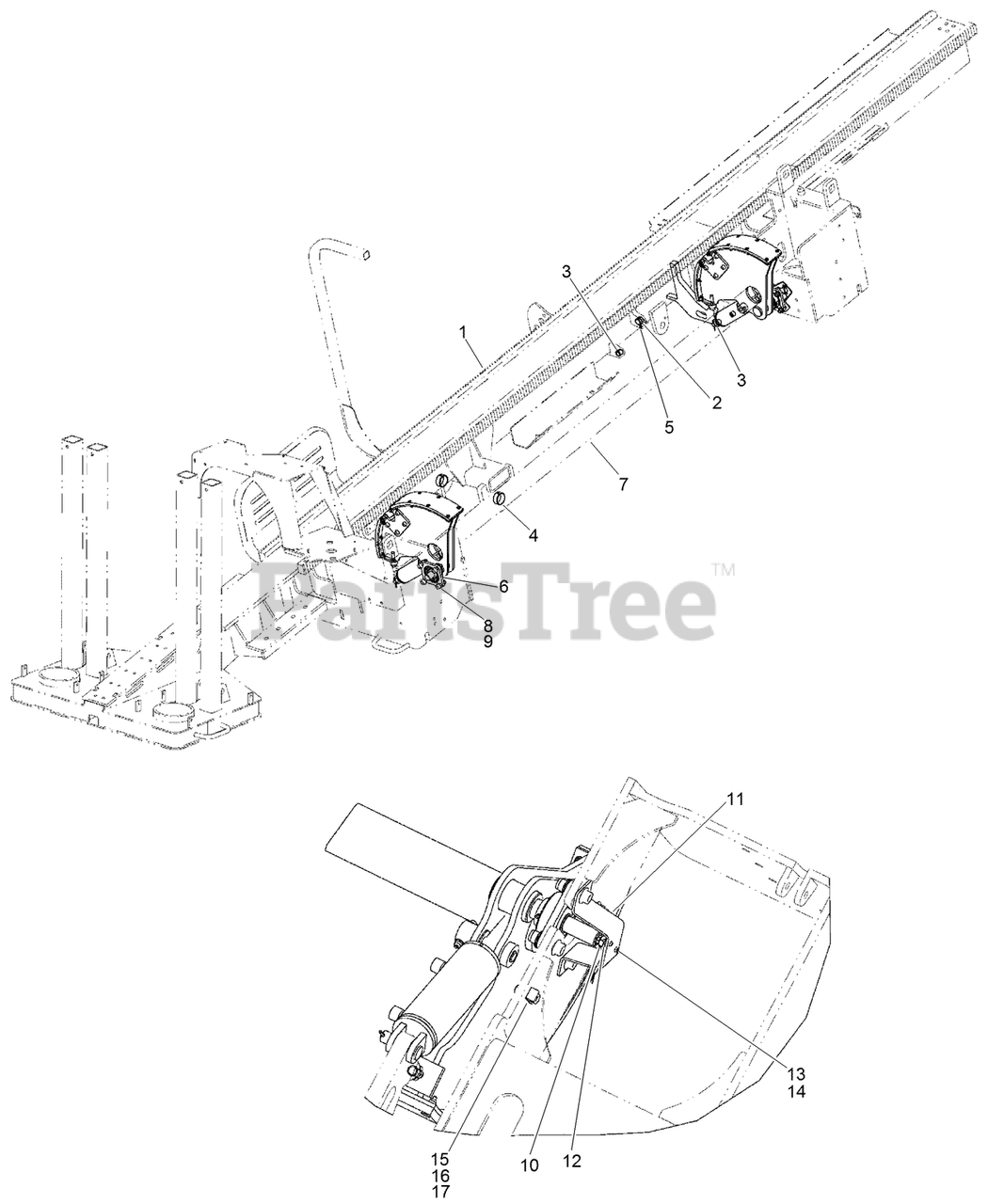

THRUST FRAME CAM 2 ASSEMBLY Parts Diagram

  • Title

Toro AU115522

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU122448

WELDMENT - Thrust Frame

$

$

Currently unavailable

2

Toro AU118035

SPRING BUSHING - 1.00 ID x 1.25 OD x 1.00 Long

$

$

Currently unavailable

3

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

4

Toro AU118566

SPRING BUSHING - 2.00 ID x 2.25 OD x 1.00 Long

$

$

Currently unavailable

5

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

6

Toro AU121325

BEARING-FLANGED Y, SQUARE

$

$

Currently unavailable

7

Toro AU117272

ASSEMBLY - Rod Loader

$

$

Currently unavailable

8

Toro AU100347

SCREW-HHF

$

$

Currently unavailable

9

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

10

Toro AU124272

JAM NUT - M10 - 1.0

$

$

Currently unavailable

11

Toro AU124265

PLATE - Mounting
(Superseded to AU124265-03)

$

$

Not available

12

Toro AU124270

SENSOR - Rotary
(Superseded to 130-4461)

$

$

Not available

13

Toro AU440-1088

SCREW

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU193-1002

NUT-#8-32 KEPS
(Superseded to 32149-9)

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU515-2312

CLAMP - Insul 12.7 mm 3/8 in Bolt ZND

$

$

Currently unavailable

16

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0
