DD 4045 - Toro EarthPro Directional Drill (2009) THRUST FRAME CAM 1 ASSEMBLY Parts Diagram

EarthPro Directional Drill

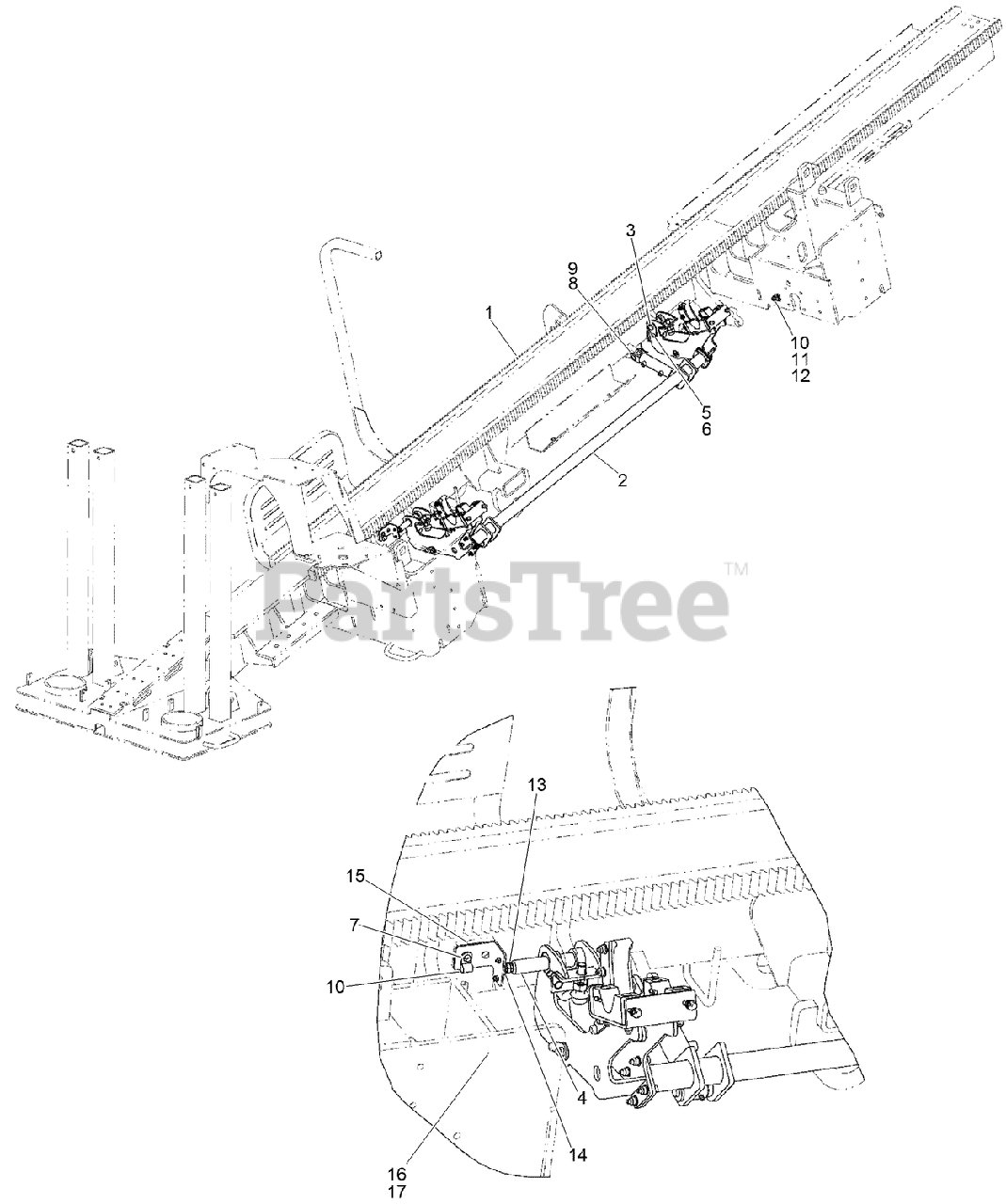

THRUST FRAME CAM 1 ASSEMBLY Parts Diagram

  • Title

Toro AU115522

ASSEMBLY - Thrust Frame

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU122448

WELDMENT - Thrust Frame

$

$

Currently unavailable

2

Toro AU117460

ASSEMBLY - Rod Loader

$

$

Currently unavailable

3

Toro AU118048

PIN-PIVOT, CAM

$

$

Currently unavailable

4

Toro AU124261

PIN-PIVOT

$

$

Currently unavailable

5

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

6

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU100867

SCREW, METRIC FLANGE w/BODY - M6 x 12

$2.49

$

Usually ships in 3-6 days

0

8

Toro AU109885

PIN-CLEVIS

$

$

Currently unavailable

9

Toro AU432-1028

PIN-cotter, 5/32 x 1-3/4 inch
(Superseded to 3272-17)

$2.99

$

In Stock, Qty 5

0

10

Toro AU515-23127

CLAMP - Insul, 12.7mm 3/8 in Bolt ZND

$1.99

$

Usually ships in 3-6 days

0

11

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU124272

JAM NUT - M10 - 1.0

$

$

Currently unavailable

14

Toro AU124270

SENSOR - Rotary
(Superseded to 130-4461)

$

$

Not available

15

Toro AU124266

PLATE - Mounting
(Superseded to AU124266-03)

$

$

Not available

16

Toro AU440-1088

SCREW

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU193-1002

NUT-#8-32 KEPS
(Superseded to 32149-9)

$1.49

$

Usually ships in 3-6 days

0
