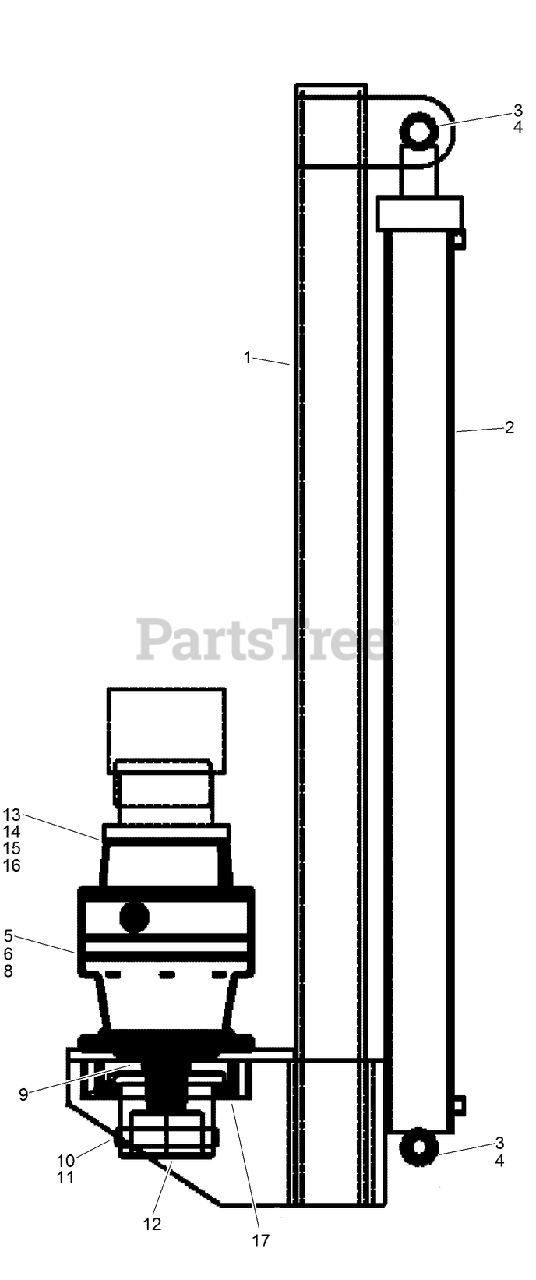

DD 4045 - Toro EarthPro Directional Drill (2009) STAKEDOWN ASSEMBLY Parts Diagram

EarthPro Directional Drill

STAKEDOWN ASSEMBLY Parts Diagram

  • Title

Toro AU32GB7520

ASSEMBLY - Stakedown

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU32GB7521

WELDMENT - Stakedown

$

$

Currently unavailable

2

Toro AU8HC25036

HYD CYLINDER ASM

$

$

Currently unavailable

3

Toro AU32GB7522

PIN-BAR

$

$

Currently unavailable

4

Toro AU8CP10407

PIN - Cotter, 1/8 inch Diameter x 2 inch Long
(Superseded to 3272-15)

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU8GB80063

PLANETARY GEARBOX ASM

$

$

Currently unavailable

6

Toro AU100326

SCREW, METRIC FLANGE w/BODY - M8 x 80

$

$

Currently unavailable

8

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU32GB7509

SPACER - Gearbox

$

$

Currently unavailable

10

Toro AU32GB7507

PIN-BAR, AUGER COUPLER

$

$

Currently unavailable

11

Toro AU8SR16001

RING-RETAINING, E-TYPE
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

12

Toro AU32GB7526

COUPLER - Stakedown Auger Drive

$

$

Currently unavailable

13

Toro AU8HM24048

HYD MOTOR ASM

$

$

Currently unavailable

14

Toro AU8HH51256

SCREW - Cap, Hex Head, 5/16 - 18 x 1-1/4 inch Long

$

$

Currently unavailable

15

Toro AU8HS51236

SEAL - O-Ring

$

$

Currently unavailable

16

Toro AU864-12035

SCREW - Cap, Hex Head, M12 x 1/75 x 35 MM Long

$

$

Currently unavailable

17

Toro AU32GB7527

RETAINER - Stakedown Auger Drive

$

$

Currently unavailable
