DD 4045 - Toro EarthPro Directional Drill (2009) SEAL PLATE ASSEMBLY Parts Diagram

EarthPro Directional Drill

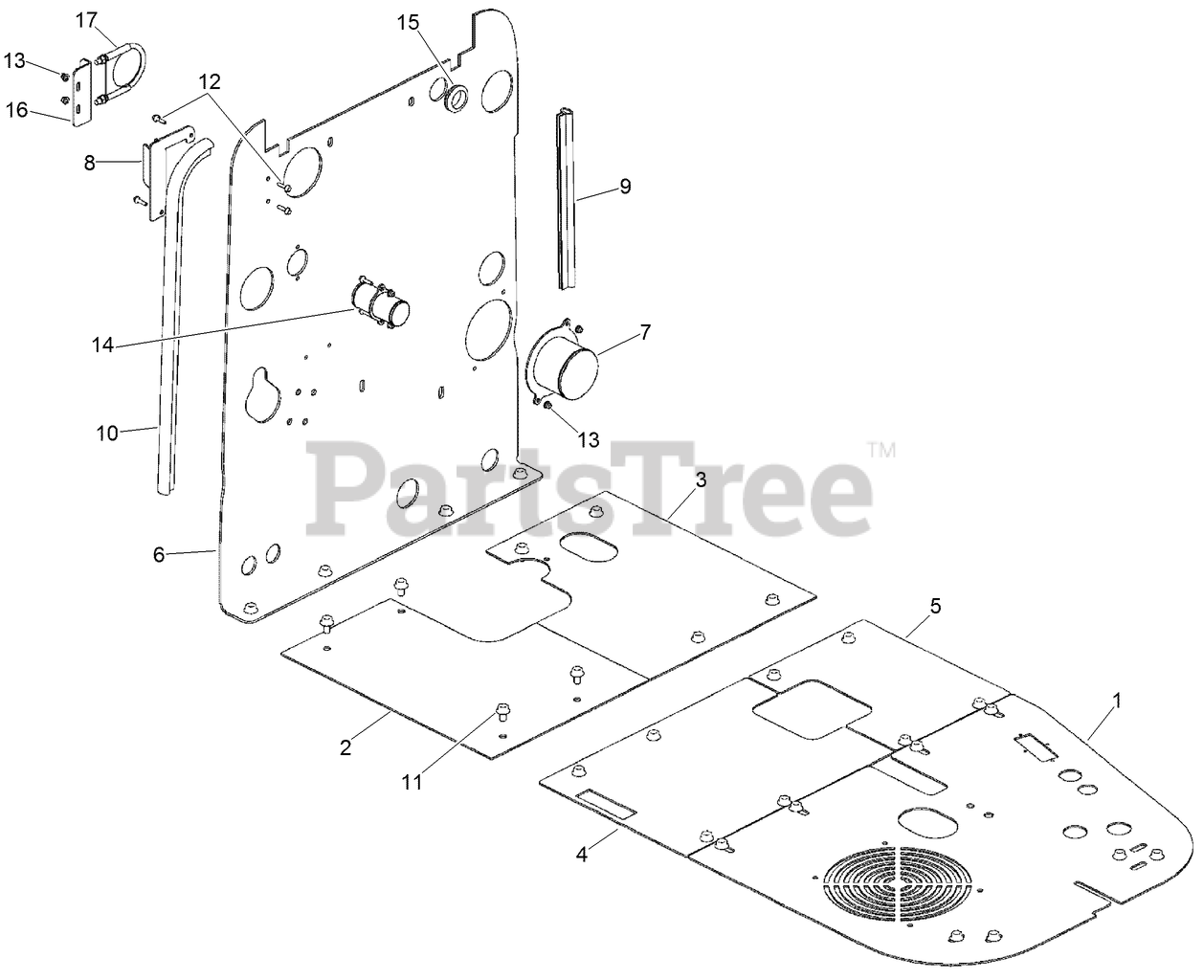

SEAL PLATE ASSEMBLY Parts Diagram

  • Title

Toro AU116330

WELDMENT - Seal Plates

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116571

PLATE - Hood Seal

$

$

Currently unavailable

2

Toro AU116572

PLATE - Hood Seal

$

$

Currently unavailable

3

Toro AU116573

PLATE - Hood Seal

$

$

Currently unavailable

4

Toro AU118532

PLATE - Hood Seal

$

$

Currently unavailable

5

Toro AU120220

PLATE - Hood Seal

$

$

Currently unavailable

6

Toro AU118213

PLATE - Bulkhead

$

$

Currently unavailable

7

Toro AU119406

MOUNT - Fresh Air Intake

$

$

Currently unavailable

8

Toro AU119404

PLATE - Air Intake, Heat Deflector

$

$

Currently unavailable

9

Toro AU118539

SEAL - Bulb, 389 mm Cut Length

$

$

Currently unavailable

10

Toro AU118724

SEAL - Bulb, 775 mm Cut Length

$

$

Currently unavailable

11

Toro AU100413

SCREW, METRIC FLANGE FULL - M12 x 20

$

$

Currently unavailable

12

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

14

Toro AU120224

BULKHEAD - Radiator

$

$

Currently unavailable

15

Toro AU120853

GROMMET - Rubber, 1.5 ID

$

$

Currently unavailable

16

Toro AU120221

PLATE - Exhaust Support

$

$

Currently unavailable

17

Toro AU8NG28118

CLAMP-GUILLOTINE

$

$

Currently unavailable
