DD 4045 - Toro EarthPro Directional Drill (2009) REAR COMPARTMENT ASSEMBLY Parts Diagram

EarthPro Directional Drill

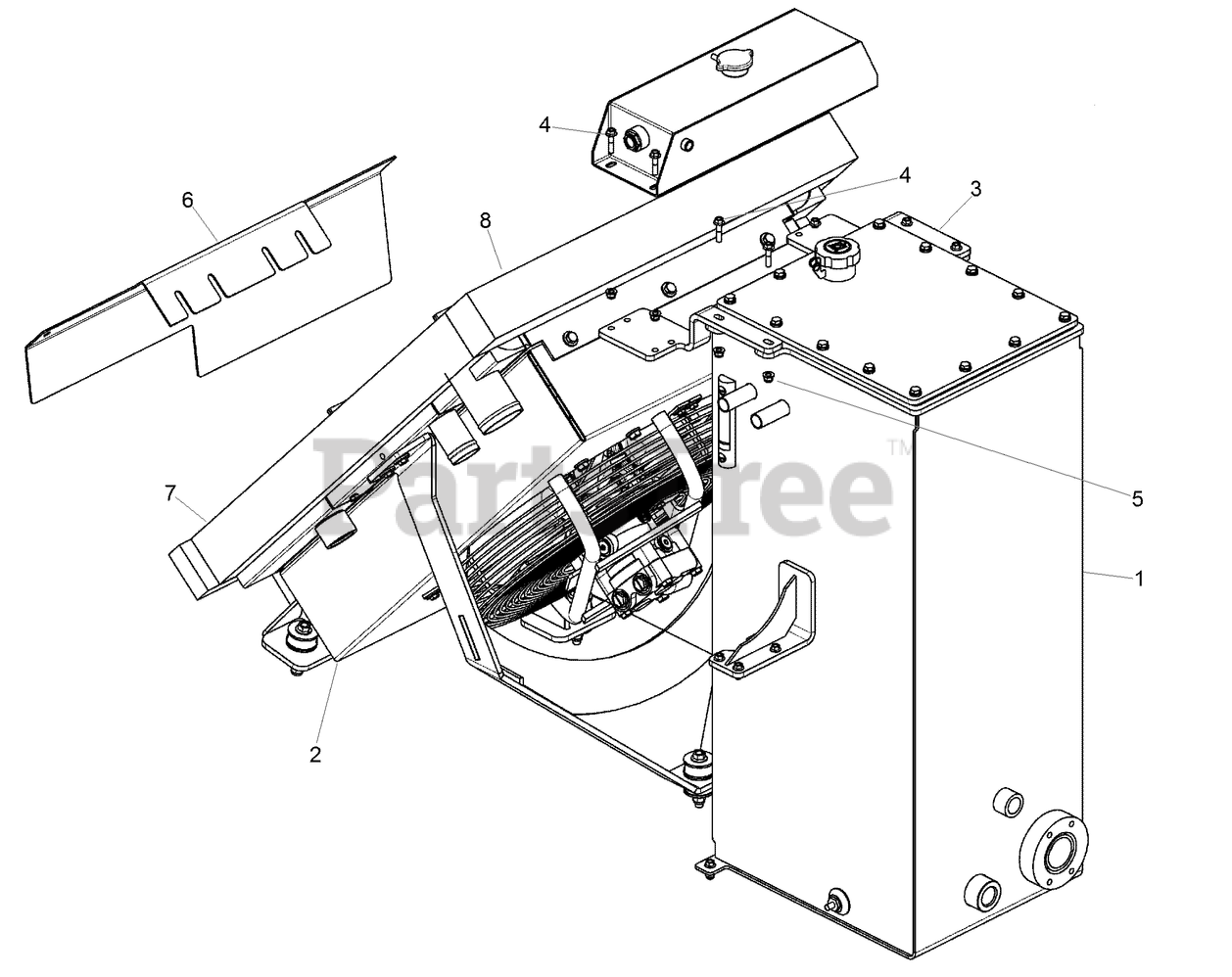

REAR COMPARTMENT ASSEMBLY Parts Diagram

  • Title

Toro AU116325

ASSEMBLY - Rear Compartment

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116143

HYD TANK ASM

$

$

Currently unavailable

2

Toro AU117986

MOUNTING - Cooling Package

$

$

Currently unavailable

3

Toro AU123439

MOUNT - Filler / Surge Tank

$

$

Currently unavailable

4

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU121548

SEAL PLATE - Below Cooler

$

$

Currently unavailable

7

Toro AU124068

FOAM - Polyurethane

$

$

Currently unavailable

8

Toro AU124069

FOAM-POLYURETHANE

$

$

Currently unavailable
