DD 4045 - Toro EarthPro Directional Drill (2009) OPERATORS STATION ASSEMBLY Parts Diagram

EarthPro Directional Drill

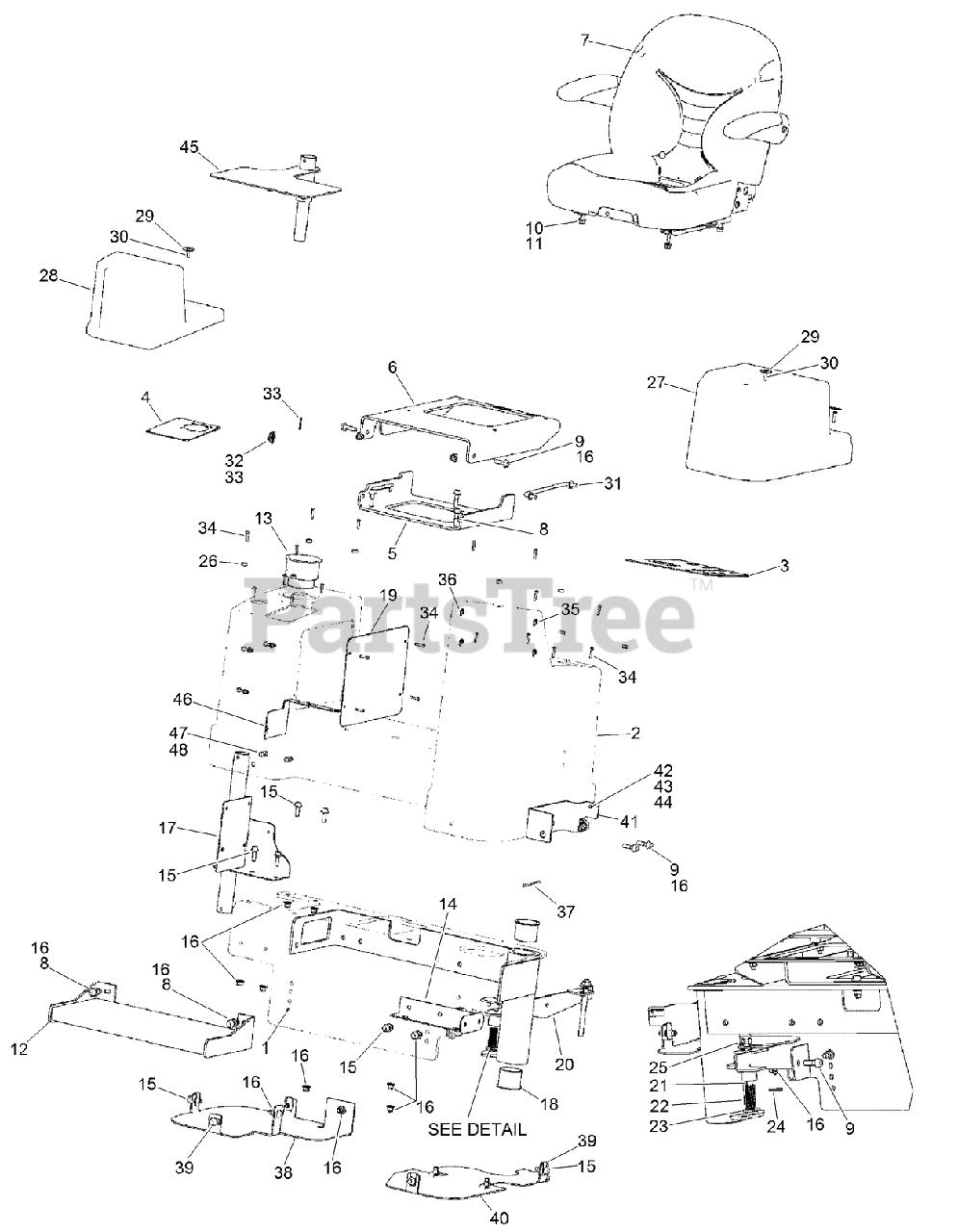

OPERATORS STATION ASSEMBLY Parts Diagram

  • Title

Toro AU117958

ASSEMBLY - Operators Console

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110259

WELDMENT - Operators Console

$

$

Currently unavailable

2

Toro AU12GB9210

CONSOLE - Fiberglass

$

$

Currently unavailable

3

Toro AU117959

PLATE - Console/Switch

$

$

Not available

4

Toro AU117961

PLATE - Joystick Mount

$

$

Not available

5

Toro AU108632

PLATE - Seat Mount Bottom
(Superseded to AU108632-03)

$

$

Not available

6

Toro AU117641

PLATE - Seat Mount Top
(Superseded to AU117641-03)

$

$

Not available

7

Toro AU8EP47010

OPERATOR SEAT ASM (STATIC)

$

$

Currently unavailable

8

Toro AU100331

SCREW-HHF

$

$

Currently unavailable

9

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

10

Toro AU495-81129

WASHER - 0.406 x 0.750 x 0.119 in CST ZND

$

$

Currently unavailable

11

Toro AU329-106

NUT - Hex .375 - 16 GR8 PHC

$

$

Currently unavailable

12

Toro AU12GB9202

ASSEMBLY - Foot Rest

$

$

Currently unavailable

13

Toro AU8EO24121

CUP-HOLDER

$3.49

$

Usually ships in 3-6 days

0

14

Toro AU12GB9228

WELDMENT - Operators Console Support
(Superseded to AU12GB9228-03)

$

$

Not available

15

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

16

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU114805

WELDMENT - Umbrella Mount
(Superseded to AU114805-03)

$

$

Not available

18

Toro AU32GB9215

BEARING - Seat Pivot

$

$

Currently unavailable

19

Toro AU108634

PLATE - Seat Ins Panel
(Superseded to AU108634-03)

$

$

Not available

20

Toro AU108997

ARM - Seat Adjustment
(Superseded to AU108997-03)

$

$

Not available

21

Toro AU108909

ROD-SWING, SEAT

$

$

Currently unavailable

22

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

23

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

24

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 5

0

25

Toro AU425-108

NUT-Hex 0.500-13 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU8EO24122

GROMMET-RUBBER

$

$

Currently unavailable

27

Toro AU12GB9218

COVER-PROTECTIVE, LEFT
(Superseded to 130-4494)

$

$

Not available

28

Toro AU12GB9219

COVER-PROTECTIVE, RIGHT
(Superseded to 130-4495)

$

$

Not available

29

Toro AU495-81119

WASHER

$

$

Currently unavailable

30

Toro AU8BH21012

SCREW - Button Head (Allen)
(Superseded to 3274-65)

$1.99

$

Usually ships in 3-6 days

0

31

Toro AU109357

ROD-PROP, SEAT

$

$

Currently unavailable

32

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

33

Toro AU136-159

PIN - Cotter Hair Int 3/16 in ZND

$

$

Not available

34

Toro AU440-11016

SCREW - PHD Type 1, #10 - 24 x 1.00 CST ZND

$

$

Currently unavailable

35

Toro AU363-11014

SCREW - Hex Hd #10 - 24 x 0.875 CST PHC

$

$

Currently unavailable

36

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

$0.99

$

In Stock, only 3 left!

0

37

Toro AU432-1248

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

38

Toro AU114287

PLATE - Splash Guard

$

$

Currently unavailable

39

Toro AU100863

NUT-U

$

$

Currently unavailable

40

Toro AU115218

PLATE - Splash Guard

$

$

Currently unavailable

41

Toro AU115236

PLATE - Cord Retaining
(Superseded to AU115236-03)

$

$

Not available

42

Toro AU115238

CLIP - Tool

$

$

Currently unavailable

43

Toro AU440-1068

SCREW - PHd Type 1 #6 - 32 x 0.500 CST ZND

$

$

Not available

44

Toro AU193-1003

NUT - KEPS Ext T Wshr #6 - 32 UNC ZP

$0.99

$

Usually ships in 3-6 days

0

45

Toro AU121823

MOUNT - Locator

$

$

Currently unavailable

46

Toro AU108897

PLATE - Mount

$

$

Currently unavailable

47

Toro AU100871

SCREW, METRIC FLANGE w/BODY - M6 x 30

$3.49

$

Usually ships in 3-6 days

0

48

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0
