DD 4045 - Toro EarthPro Directional Drill (2009) MUD PUMP ASSEMBLY Parts Diagram

EarthPro Directional Drill

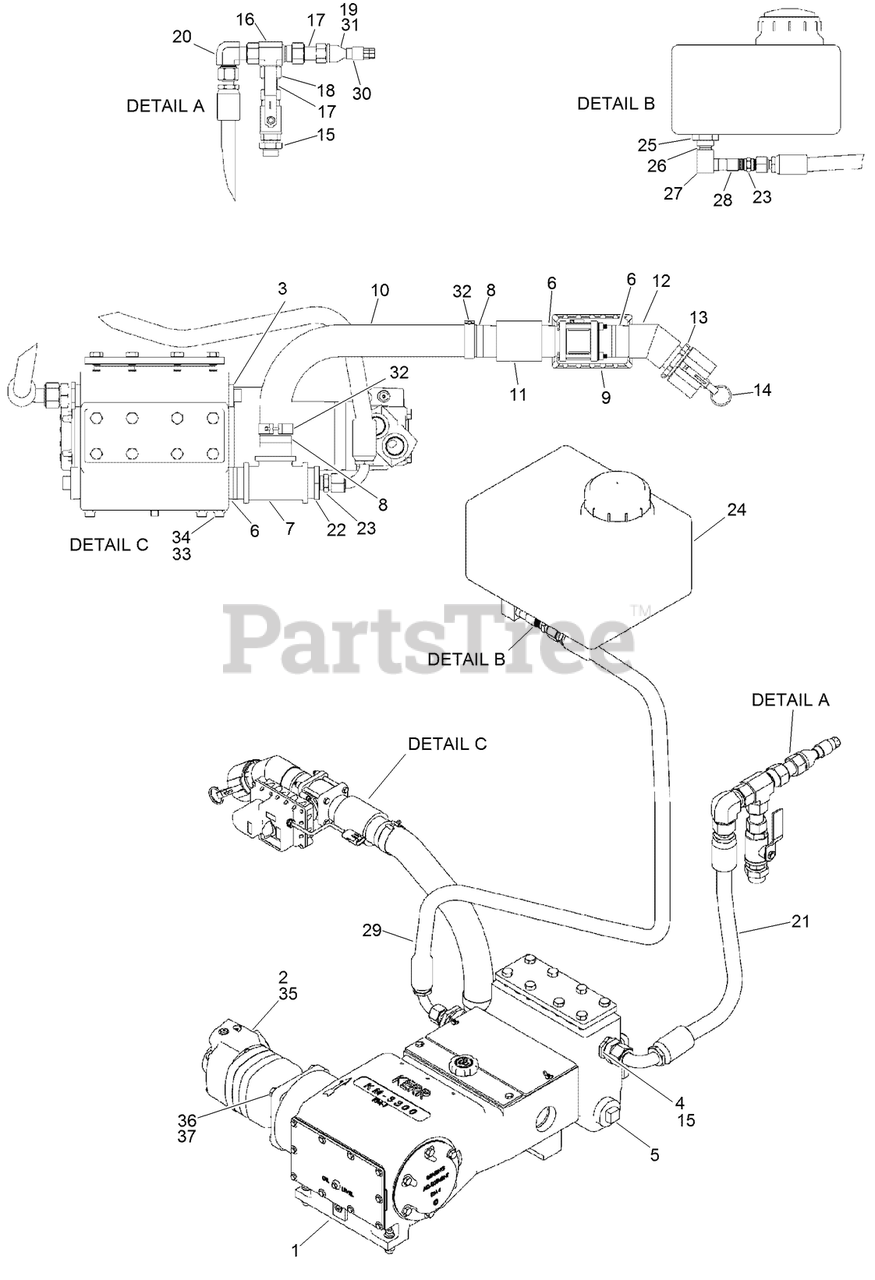

MUD PUMP ASSEMBLY Parts Diagram

  • Title

Toro AU116270

ASSEMBLY - Mud Pump

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116271

PUMP - Mud (Kerr KM3300)
(Superseded to 127-5292)

$

$

Not available

2

Toro AU117459

HYD MOTOR ASM

$

$

Currently unavailable

3

Toro AU217-532

PLUG - Sq Hd Pipe 1-1/4 - 11.5 NPTF STL PLN

$

$

Currently unavailable

4

Toro AU221-70

FITTING-REDUCER

$

$

Currently unavailable

5

Toro AU8PP10032

PLUG-PIPE, SQUARE HEAD

$

$

Currently unavailable

6

Toro AU8PN23200

NIPPLE-PIPE

$

$

Currently unavailable

7

Toro AU8PT10032

TEE-PIPE

$

$

Currently unavailable

8

Toro AU8PN11332

NIPPLE-COMBINATION

$

$

Currently unavailable

9

Toro AU6HV29033

2 INCH BALL VALVE ASM (ELECTRIC)

$

$

Currently unavailable

10

Toro AU116299

HOSE - Tank to Pump

$

$

Currently unavailable

11

Toro AU65-CI-1960

COUPLING - Pipe, Hi Pressure, NPT

$

$

Currently unavailable

12

Toro AU8PE15032

ELBOW-PIPE-45

$

$

Currently unavailable

13

Toro AU110378

ADAPTER-MALE

$

$

Currently unavailable

14

Toro AU110379

CAP-CONNECT, QUICK

$

$

Not available

15

Toro AU8OA11616

FITTING-STRAIGHT

$

$

Currently unavailable

16

Toro AU8OR91616

FITTING-TEE, BULKHEAD

$

$

Currently unavailable

17

Toro AU8OA65016

FITTING-STRAIGHT

$

$

Currently unavailable

18

Toro AU8HV22016

VALVE-BALL

$

$

Currently unavailable

19

Toro AU8PC11604

FITTING-REDUCER

$

$

Currently unavailable

20

Toro AU8OL81616

CONNECTION - 90 Degree, -16 ORFS / -16 ORFS

$

$

Currently unavailable

21

Toro AU117617

HOSE ASM-HYD

$

$

Currently unavailable

22

Toro AU65-CI-1750

FITTING-REDUCER

$

$

Currently unavailable

23

Toro AU8OA11212

FITTING-STRAIGHT

$

$

Currently unavailable

24

Toro AU32GB1214

TANK - 6G, No Fitting - Poly

$

$

Not available

25

Toro AU20MC8508

FITTING-TANK, BULKHEAD (PLASTIC)

$

$

Currently unavailable

26

Toro AU221-1211

NIPPLE-STRAIGHT

$

$

Not available

27

Toro AU221-1415

ELBOW-STREET, 90 DEG

$

$

Not available

28

Toro AU8HV21012

VALVE-BALL

$

$

Currently unavailable

29

Toro AU117618

HOSE - Tank to Pump

$

$

Currently unavailable

30

Toro AU8QD55204

NIPPLE-CONNECT, QUICK

$

$

Currently unavailable

31

Toro AU8QD08204

CAP-DUST, PLASTIC
(Superseded to 125-6145)

$

$

Not available

32

Toro AU8CL14041

CLAMP-HOSE, T-BOLT

$

$

Currently unavailable

33

Toro AU100333

SCREW-FLANGE

$

$

Not available

34

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

35

Toro AU70-9004104-1580

O-RING

$

$

Not available

36

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, Qty 20+

0

37

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0
