DD 4045 - Toro EarthPro Directional Drill (2009) MOTOR HYDRAULIC FITTING KIT Parts Diagram

EarthPro Directional Drill

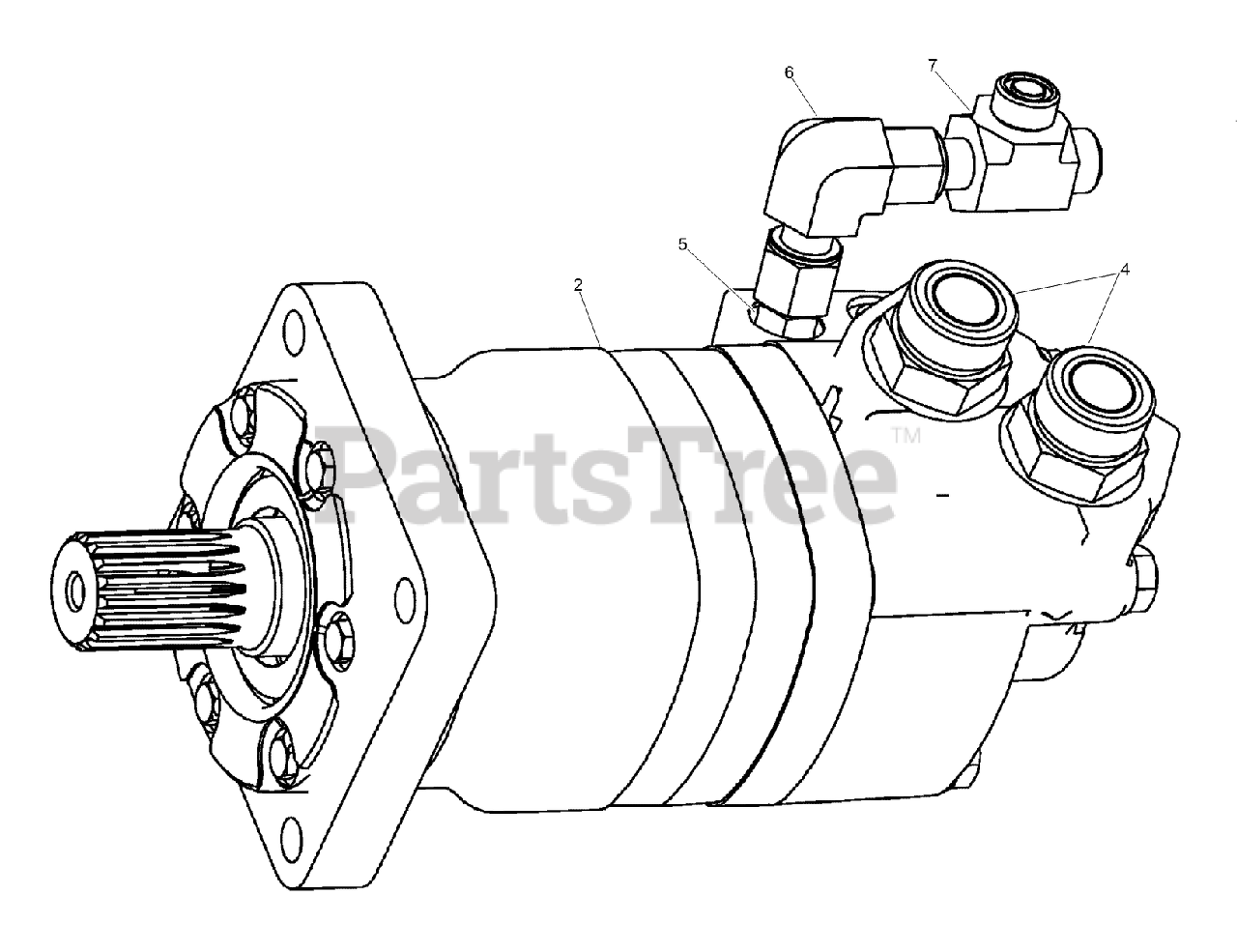

MOTOR HYDRAULIC FITTING KIT Parts Diagram

  • Title
1

Toro AU116581

KIT - Hydraulic Fittings

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU117459

HYD MOTOR ASM

$

$

Currently unavailable

3

Toro AU116270

ASSEMBLY - Mud Pump

Note: Not illustrated

$

$

Currently unavailable

4

Toro AU8OA31616

CONNECTION - Straight, -16 ORFS / -16 ORB

$

$

Currently unavailable

5

Toro AU8OA30806

CONNECTION - Straight, -8 ORFS / -6 ORB

$

$

Currently unavailable

6

Toro AU8OL80808

CONNECTION - 90 Deg, -8 ORFS / -8 ORFS

$

$

Currently unavailable

7

Toro AU8OR80808

CONNECTION - Run Tee, -8 ORFS / -8 ORFS

$

$

Currently unavailable
