DD 4045 - Toro EarthPro Directional Drill (2009) LIFE JACKET DEVICE ASSEMBLY Parts Diagram

EarthPro Directional Drill

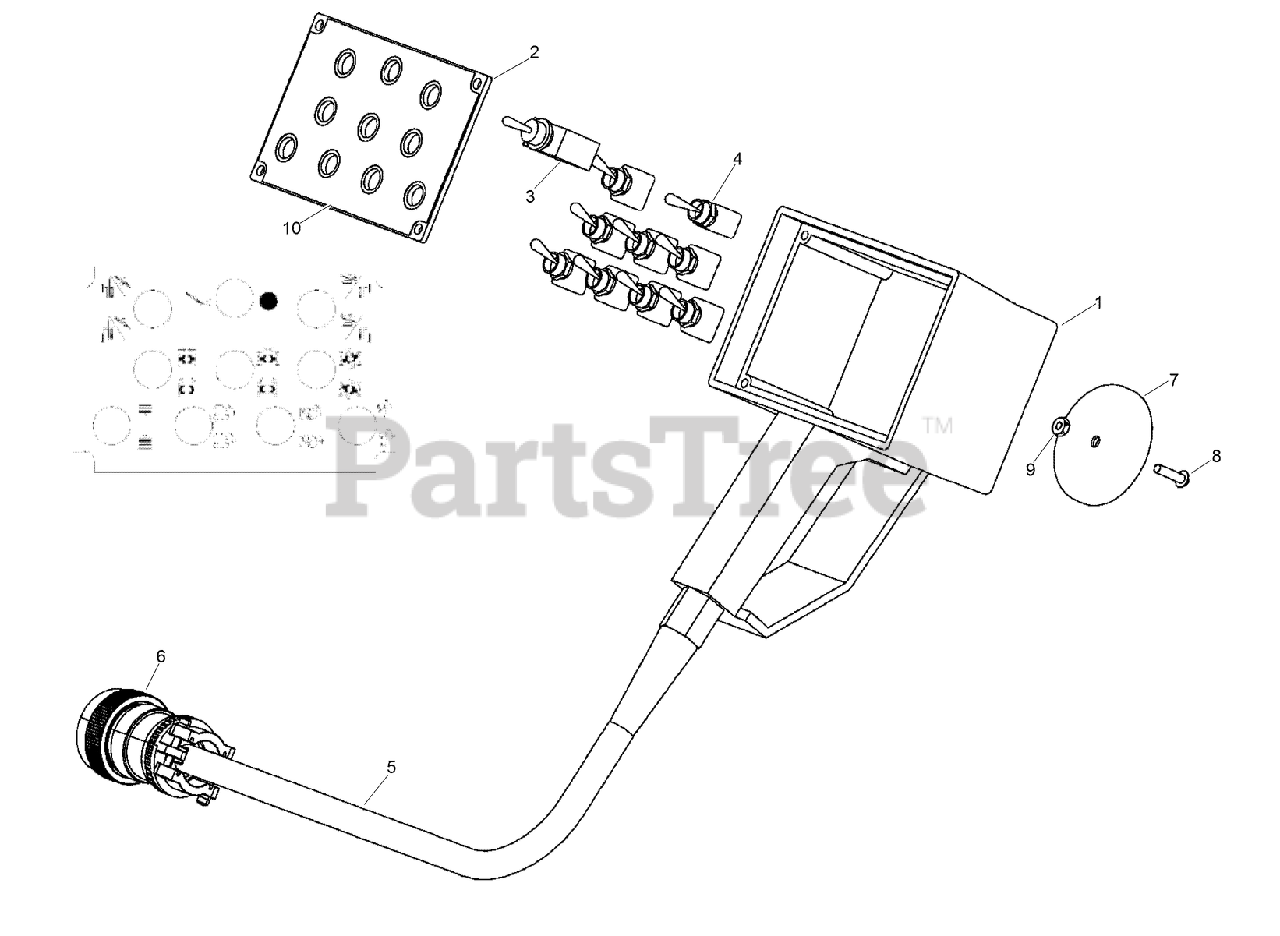

LIFE JACKET DEVICE ASSEMBLY Parts Diagram

  • Title

Toro AU117960

LIFEJACKET
(Superseded to 125-1628)

Note: Not illustrated

$

$

Not available

1

Toro AU118226

ENCLOSURE - Handheld Device

$

$

Currently unavailable

2

Toro AU124365

PLATE - Mounting, Life Jacket

$

$

Currently unavailable

3

Toro AU121460

SWITCH - Toggle, SPDT

$

$

Currently unavailable

4

Toro AU8EP46141

SWITCH - Toggle, Mini, (On)-Off-(On)

$

$

Currently unavailable

5

Toro AU118228

CORD - Control, Retractable, 24 / 10

$

$

Currently unavailable

6

Toro AU118205

CONNECTOR - Electrical, Deutsch HD36-24

$

$

Currently unavailable

7

Toro AU8EH12002

MAGNET - Ceramic, 2.03 Diameter x .312 H

$

$

Currently unavailable

8

Toro AU459-11012

SCREW - Machine, 10 - 32 x 3/4 Slotted Pan Head

$

$

Not available

9

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

10

Toro AU124366

DECAL - Life Jacket Device

$

$

Currently unavailable
