DD 4045 - Toro EarthPro Directional Drill (2009) LH TRACK ASSEMBLY Parts Diagram

EarthPro Directional Drill

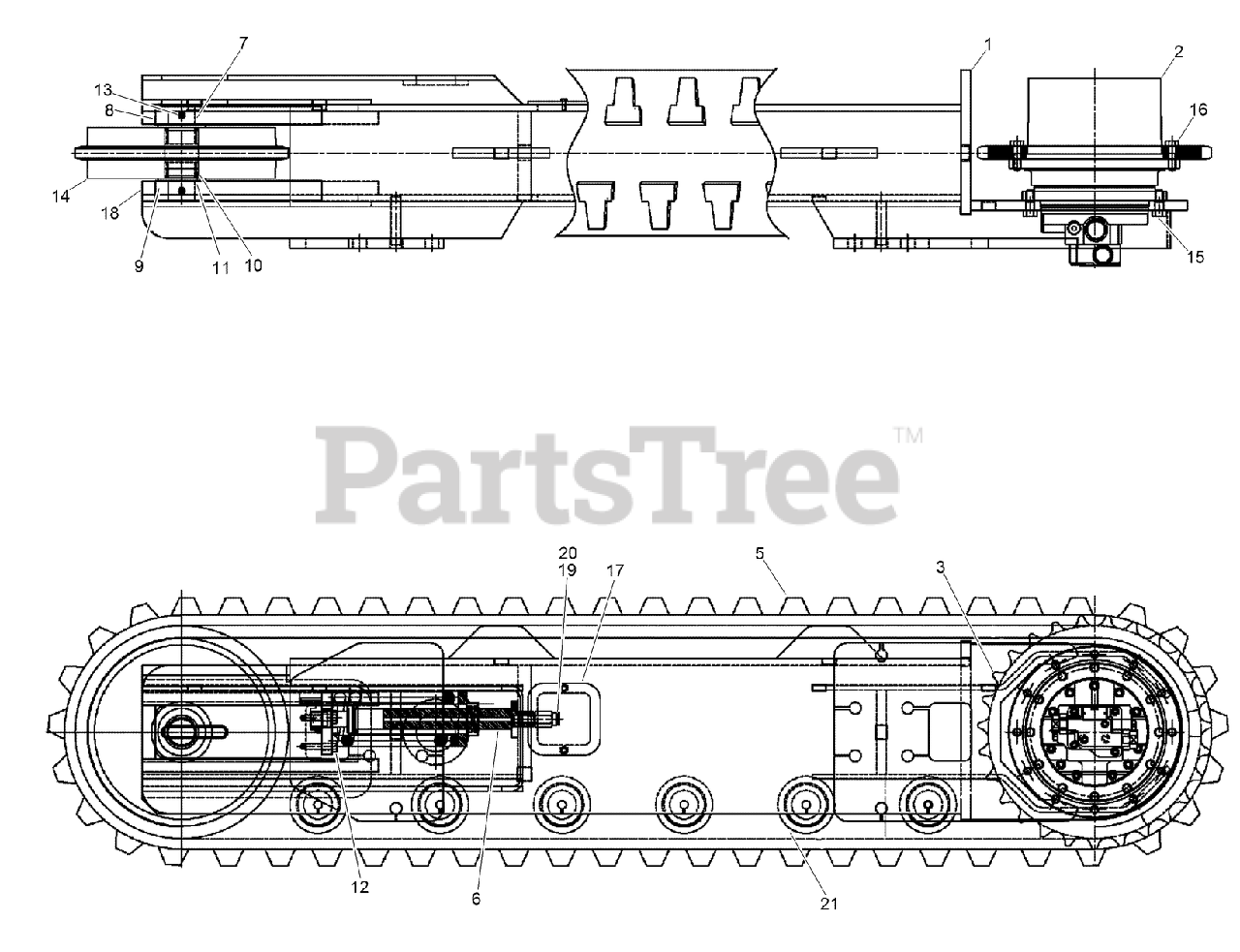

LH TRACK ASSEMBLY Parts Diagram

  • Title

Toro AU32GB2406

ASSEMBLY - Track Drive, Left Hand

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU32GB2404

WELDMENT - Track Drive, Left Hand

$

$

Currently unavailable

2

Toro AU8GB85017

PLANETARY GEARBOX ASM

$

$

Currently unavailable

3

Toro AU30DD2424

SPROCKET - Drive, Track, 27 Tooth

$

$

Currently unavailable

5

Toro AU32GB2414

TRACK-RUBBER

$

$

Not available

6

Toro AU32GB2412

TENSIONER-TRACK

$

$

Currently unavailable

7

Toro AU32GB2409

PIN-AXLE

$

$

Currently unavailable

8

Toro AU32GB2408

SLIDER - Tensioner Bar, 1-1/2 x 4 x 12-11/16 Long

$

$

Currently unavailable

9

Toro AU8CF90032

BEARING-THRUST

$

$

Currently unavailable

10

Toro AU8CF60032

BEARING - Roller, without Inner Ring, 2.00 ID x 2.562 OD
(Superseded to AUH748111)

$129.99

$

Usually ships in 3-6 days

0

11

Toro AU8HS11032

SEAL-SHAFT

$

$

Currently unavailable

12

Toro AU426-832

BOLT

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU8CP31631

PIN-SLOTTED, SPRING

$

$

Currently unavailable

14

Toro AU32GB2410

SPROCKET - Idler, 16-1/4 OD x 4 Thk
(Superseded to AU32GB2410-03)

$

$

Not available

15

Toro AU814-16040

SCREW-HH

$

$

Not available

16

Toro AU814-14045

SCREW-HH

$

$

Not available

17

Toro AU32GB2413

COVER - Access Opening

$

$

Currently unavailable

18

Toro AU32GB2408

SLIDER - Tensioner Bar, 1-1/2 x 4 x 12-11/16 Long

$

$

Currently unavailable

19

Toro AU30GB2412-1

FITTING - Grease, Giant Button Head
(Superseded to AU30-807L-1060)

$

$

Not available

20

Toro AU30GB2412-2

WASHER - Copper, Seal.
(Superseded to AU30-807L-1059)

$

$

Not available

21

Toro AU30DD2434

ROLLER-TRACK

$

$

Not available

22

Toro AU814-14030

SCREW-HH

Note: Not illustrated

$

$

Not available
