DD 4045 - Toro EarthPro Directional Drill (2009) HYDRAULIC TANK FITTING KIT Parts Diagram

EarthPro Directional Drill

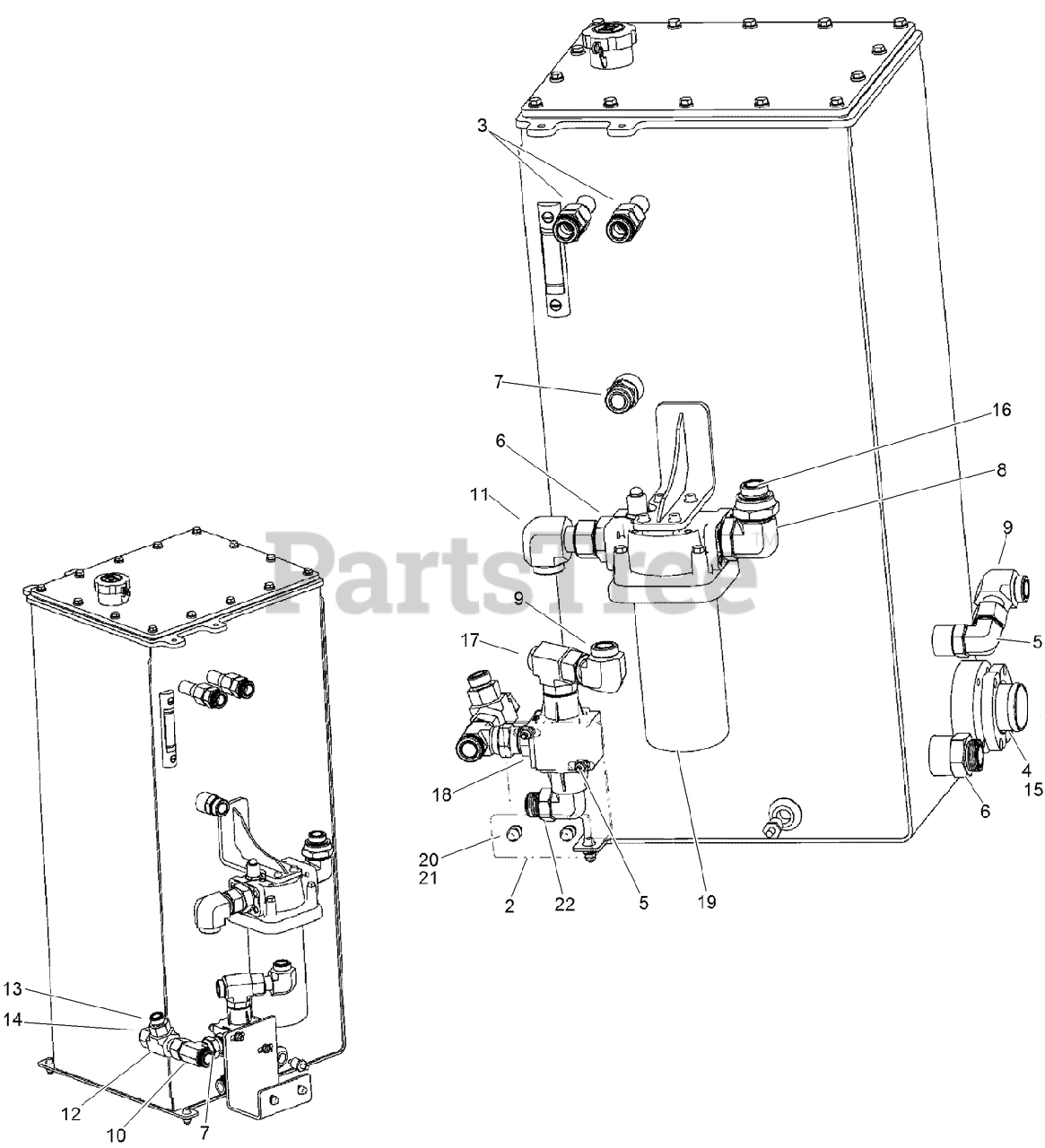

HYDRAULIC TANK FITTING KIT Parts Diagram

  • Title
1

Toro AU116581

KIT - Hydraulic Fittings

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU124864

PLATE - Mount, Thermal Bypass

$

$

Currently unavailable

3

Toro AU8OAB1616

FITTING-STRAIGHT

$

$

Currently unavailable

4

Toro AU117686

INSERT

$

$

Currently unavailable

5

Toro AU8OL31616

CONNECTION - 90 Deg, -16 ORFS / -16 ORB

$

$

Currently unavailable

6

Toro AU8OA32024

FITTING-STR

$

$

Currently unavailable

7

Toro AU8OA31616

CONNECTION - Straight, -16 ORFS / -16 ORB

$

$

Currently unavailable

8

Toro AU8OL32424

FITTING-ELBOW 90

$

$

Currently unavailable

9

Toro AU8OL81616

CONNECTION - 90 Degree, -16 ORFS / -16 ORFS

$

$

Currently unavailable

10

Toro AU8OB81616

FITTING-TEE

$

$

Currently unavailable

11

Toro AU8OL82020

FITTING-ELBOW, 90

$

$

Currently unavailable

12

Toro AU8OR81616

FITTING-TEE

$

$

Currently unavailable

13

Toro AU8OA81216

FITTING-REDUCER

$

$

Currently unavailable

14

Toro AU8OA80816

FITTING-REDUCER

$

$

Not available

15

Toro AU91-FF593-40

SPLIT FLANGE KIT

$

$

Currently unavailable

16

Toro AU8OA81624

FITTING-REDUCER

$

$

Currently unavailable

17

Toro AU8OB31616

CONNECTION - Branch Tee, -16 ORFS / -16 ORB

$

$

Currently unavailable

18

Toro AU8HV01001

VALVE-THERMOSTAT

$

$

Currently unavailable

19

Toro AU118533

FILTER-HYD, RETURN

$

$

Currently unavailable

20

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

21

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU100327

SCREW-FLANGE

$5.99

$

Usually ships in 3-6 days

0
