DD 4045 - Toro EarthPro Directional Drill (2009) HYDRAULIC TANK ASSEMBLY Parts Diagram

EarthPro Directional Drill

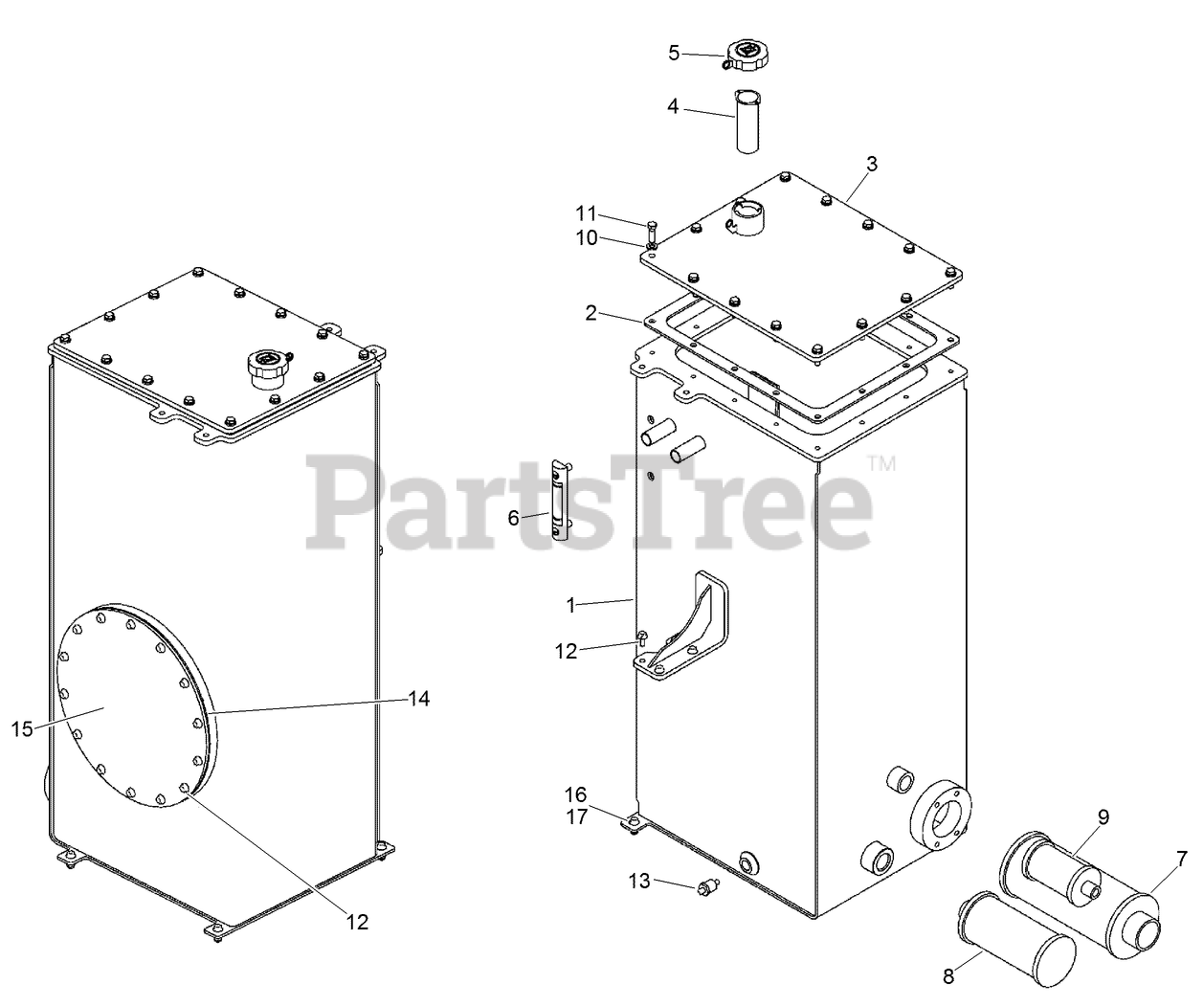

HYDRAULIC TANK ASSEMBLY Parts Diagram

  • Title

Toro AU116143

HYD TANK ASM

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116595

TANK-HYD

$

$

Currently unavailable

2

Toro AU117202

GASKET-COVER

$

$

Currently unavailable

3

Toro AU116328

WELDMENT - Cover, Hydraulic Tank

$

$

Currently unavailable

4

Toro AU101238

FILTER-SCREEN, MESH

$39.99

$

Usually ships in 3-6 days

0

5

Toro AU105820

CAP-HYD FLUID (W/ LOCK)

$

$

Currently unavailable

6

Toro AUL116247

GAUGE-SIGHT
(Superseded to AU8PG00005)

$

$

Not available

7

Toro AU116600

STRAINER-NIPPLE

$

$

Currently unavailable

8

Toro AU116599

STRAINER-SUCTION

$

$

Currently unavailable

9

Toro AU116598

STRAINER-NIPPLE

$

$

Currently unavailable

10

Toro AU495-81129

WASHER - 0.406 x 0.750 x 0.119 in CST ZND

$

$

Currently unavailable

11

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

12

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU30-460-8006

SENDER-TEMPERATURE, WATER

$

$

Currently unavailable

14

Toro AU122311

GASKET-HYD, TANK

$

$

Currently unavailable

15

Toro AU122304

GASKET - Hydraulic Tank

$

$

Currently unavailable

16

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0
