DD 4045 - Toro EarthPro Directional Drill (2009) HYDRAULIC PUMP AND ENGINE FITTING KIT Parts Diagram

EarthPro Directional Drill

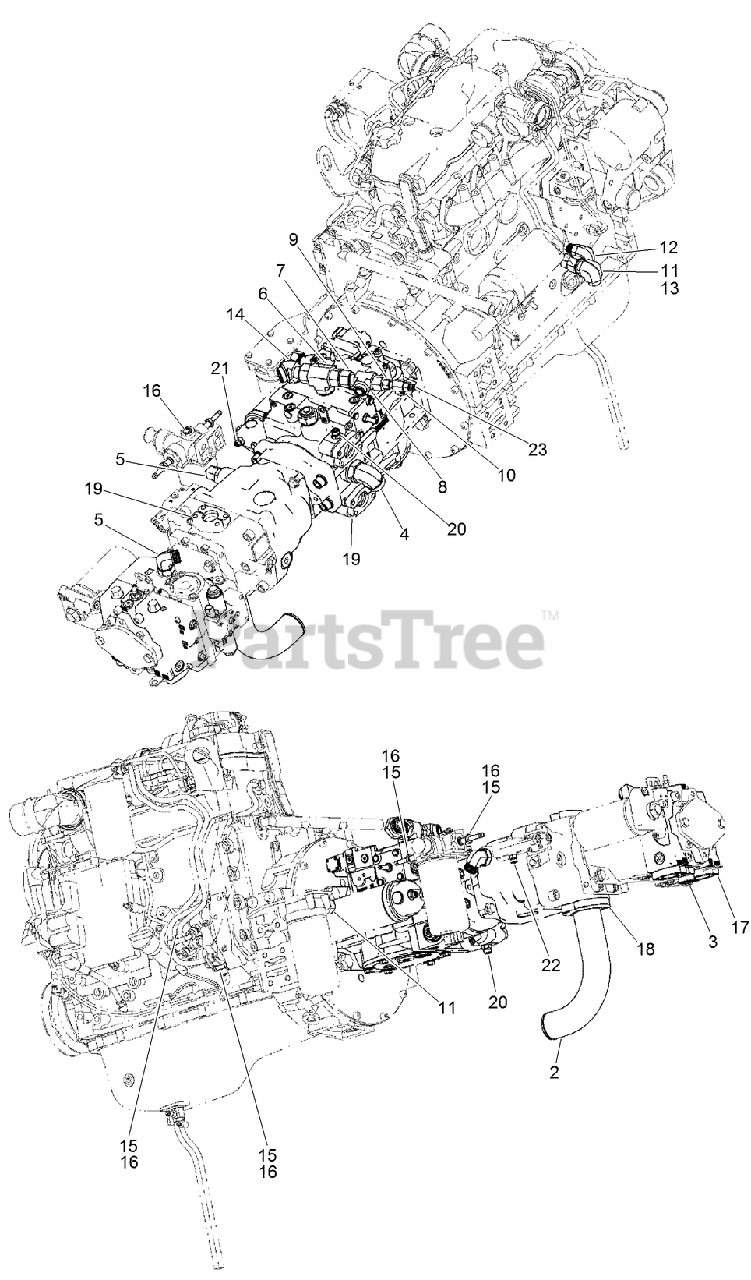

HYDRAULIC PUMP AND ENGINE FITTING KIT Parts Diagram

  • Title

1

Toro AU116581

KIT - Hydraulic Fittings

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU121324

TUBE-BENT

$

$

Currently unavailable

3

Toro AU8OA31616

CONNECTION - Straight, -16 ORFS / -16 ORB

$

$

Currently unavailable

4

Toro AU8OL32020

CONNECTION - 90 Deg, -20 ORFS / -20 ORB

$

$

Currently unavailable

5

Toro AU8OL31312

CONNECTION - 90 Deg, -12 ORFS / -12 ORB

$

$

Currently unavailable

6

Toro AU8OB31616

CONNECTION - Branch Tee, -16 ORFS / -16 ORB

$

$

Currently unavailable

7

Toro AU8OA81216

FITTING-REDUCER

$

$

Currently unavailable

8

Toro AU8OR81212

FITTING-TEE

$

$

Currently unavailable

9

Toro AU8OA80612

FITTING-REDUCER

$

$

Not available

10

Toro AU8OR80606

CONNECTION - Run Tee, -6 ORFS / -6 ORFS

$

$

Currently unavailable

11

Toro AU8OA31210

CONNECTION - Straight, -12 ORFS / -10 ORB

$

$

Currently unavailable

12

Toro AU8OL31210

CONNECTION - 90 Deg, -12 ORFS / -10 ORB

$

$

Currently unavailable

13

Toro AU8OL81212

CONNECTION - 90 Deg, -12 ORFS / -12 ORFS

$

$

Currently unavailable

14

Toro AU8OE81616

FITTING-ELBOW, 45

$

$

Currently unavailable

15

Toro AU121716

FITTING, FUEL HOSE BARB - M12 x 3/4 Hose ID

$

$

Currently unavailable

16

Toro AU121717

SEAL-FITTING, FUEL

$

$

Currently unavailable

17

Toro AU8TS06216

KIT, SPLIT FLANGE -16 SAE, w/o Rings and Bolts

$

$

Currently unavailable

18

Toro AU91-FF593-40

SPLIT FLANGE KIT

$

$

Currently unavailable

19

Toro AU8TS46220

SPLIT FLANGE KIT

$

$

Currently unavailable

20

Toro AU8OA30606

CONNECTION - Straight, -6 ORFS / -6 ORB

$

$

Currently unavailable

21

Toro AU8OA30406

CONNECTION - Straight, -4 ORFS / -6 ORB

$

$

Currently unavailable

22

Toro AU8OA30404

CONNECTION - Straight, -4 ORFS / -4 ORB

$

$

Currently unavailable

23

Toro AU8OA80406

CONNECTION, REDUCER, -4 ORFS / -7 ORFS

$

$

Currently unavailable
