DD 4045 - Toro EarthPro Directional Drill (2009) HYDRAULIC MOTOR FITTING KIT Parts Diagram

EarthPro Directional Drill

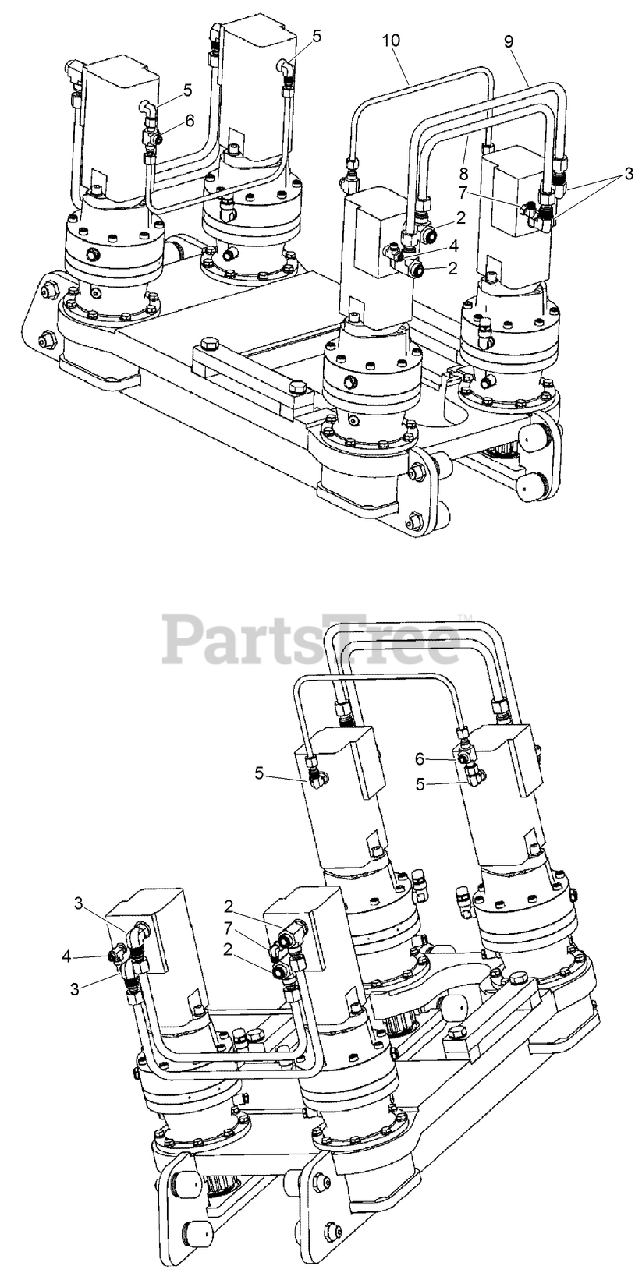

HYDRAULIC MOTOR FITTING KIT Parts Diagram

  • Title

1

Toro AU116581

KIT - Hydraulic Fittings

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU8OR31010

CONNECTION - Run Tee, -10 ORFS / -10 ORB

$

$

Currently unavailable

3

Toro AU8OL31010

CONNECTION - 90 Deg, -10 ORFS / -10 ORB

$

$

Currently unavailable

4

Toro AU8OR30404

CONNECTION - Run Tee, -4 ORFS / -4 ORB

$

$

Currently unavailable

5

Toro AU8OL30606

CONNECTION - 90 Deg, -6 ORFS / -6 ORB

$

$

Currently unavailable

6

Toro AU8OR80606

CONNECTION - Run Tee, -6 ORFS / -6 ORFS

$

$

Currently unavailable

7

Toro AU8OL30404

CONNECTION - 90 Deg, -4 ORFS / -4 ORB

$

$

Currently unavailable

8

Toro AU119409

TUBE-HYD, 5/8 IN (MOTOR TO MOTOR)

$

$

Currently unavailable

9

Toro AU119410

TUBE-HYD, 5/8 IN (MOTOR TO MOTOR)

$

$

Currently unavailable

10

Toro AU119452

TUBE-HYD, 3/8 IN (CASE DRAIN MTR TO MTR)

$

$

Currently unavailable
