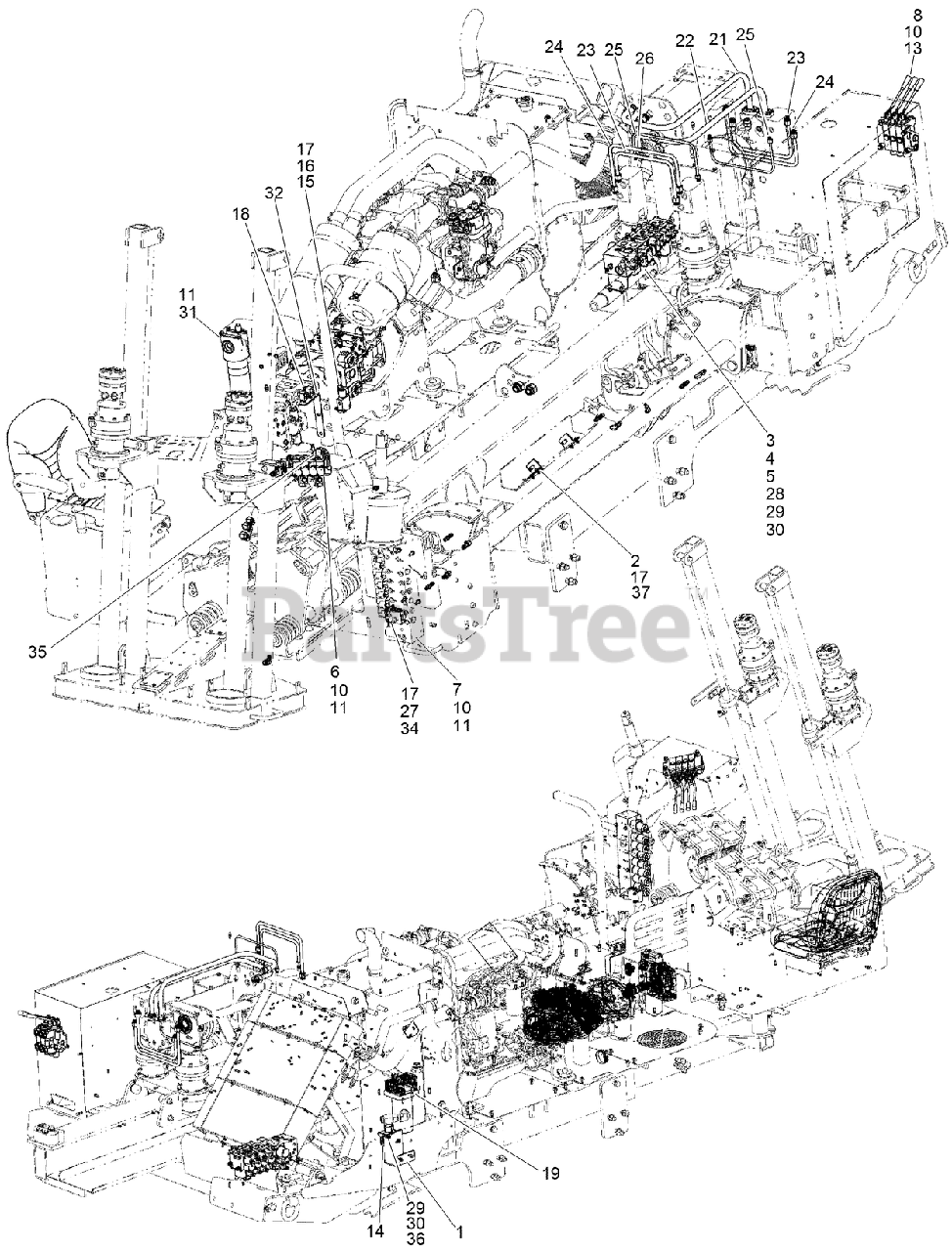

DD 4045 - Toro EarthPro Directional Drill (2009) HYDRAULIC ASSEMBLY Parts Diagram

EarthPro Directional Drill

HYDRAULIC ASSEMBLY Parts Diagram

  • Title

Toro AU116580

HYDRAULIC GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU124864

PLATE - Mount, Thermal Bypass

$

$

Currently unavailable

2

Toro AU124863

PLATE - Mount

$

$

Currently unavailable

3

Toro AU121320

BRACKET-FRONT, 5-SECTION VALVE

$

$

Currently unavailable

4

Toro AU121285

5-SECTION HYD VALVE ASM

$

$

Not available

5

Toro AU121321

BRACKET-REAR, 5-SECTION VALVE

$

$

Currently unavailable

6

Toro AU8HV80159

4 SPOOL HYD VALVE ASM

$

$

Currently unavailable

7

Toro AU111494

9 SECTION HYD VALVE ASM

$

$

Not available

8

Toro AU8HV80153

3 SPOOL HYD VALVE ASM

$

$

Currently unavailable

9

Toro AU116581

KIT - Hydraulic Fittings

Note: Not illustrated

$

$

Currently unavailable

10

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU119060

KIT - Hydraulic Hose

Note: Not illustrated

$

$

Currently unavailable

13

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

14

Toro AU8HV01001

VALVE-THERMOSTAT

$

$

Currently unavailable

15

Toro AU8HV80118

VALVE - Dir, Cart, 3W2P, SOL, 12VDC

$

$

Currently unavailable

16

Toro AU1009721

SCREW, METRIC FLANGE w/BODY - M6 x 50

$

$

Currently unavailable

17

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU270083

VALVE-SHUTTLE, LOAD

$

$

Currently unavailable

19

Toro AU118533

FILTER-HYD, RETURN

$

$

Currently unavailable

20

Toro AU119010

CARRIER-HOSE, 36 LINKS

Note: Not illustrated

$

$

Currently unavailable

21

Toro AU119408

TUBE-HYD, ROTARY A (BULKHEAD TO MOTOR)

$

$

Currently unavailable

22

Toro AU119407

TUBE-HYD, ROTARY B (BULKHEAD TO MOTOR)

$

$

Currently unavailable

23

Toro AU119409

TUBE-HYD, 5/8 IN (MOTOR TO MOTOR)

$

$

Currently unavailable

24

Toro AU119410

TUBE-HYD, 5/8 IN (MOTOR TO MOTOR)

$

$

Currently unavailable

25

Toro AU119452

TUBE-HYD, 3/8 IN (CASE DRAIN MTR TO MTR)

$

$

Currently unavailable

26

Toro AU214-1712

CLAMP - Hose, Type M # 12

$

$

Currently unavailable

27

Toro AU112323

HYD FLOW DIVIDER VALVE ASM

$

$

Currently unavailable

28

Toro AU100394

SCREW-FLANGE

$

$

Currently unavailable

29

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

30

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU118636

FILTER-HYD, HIGH PRESSURE

$

$

Currently unavailable

32

Toro AU121543

PLATE - Mount, Shuttle Valve

$

$

Currently unavailable

33

Toro AU122283

SCHEMATIC - Hydraulic, DD4045

Note: Not illustrated

$

$

Currently unavailable

34

Toro AU100315

SCREW-FLANGE, METRIC

$1.99

$

Usually ships in 3-6 days

0

35

Toro AU21001356

CLAMP, T-BOLT - Spring Load, 2.75 Min - 3.06 Max

$

$

Currently unavailable

36

Toro AU100327

SCREW-FLANGE

$5.49

$

Usually ships in 3-6 days

0

37

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0
