DD 4045 - Toro EarthPro Directional Drill (2009) HI PRESSURE HYDRAULIC FLITER FITTING KIT Parts Diagram

EarthPro Directional Drill

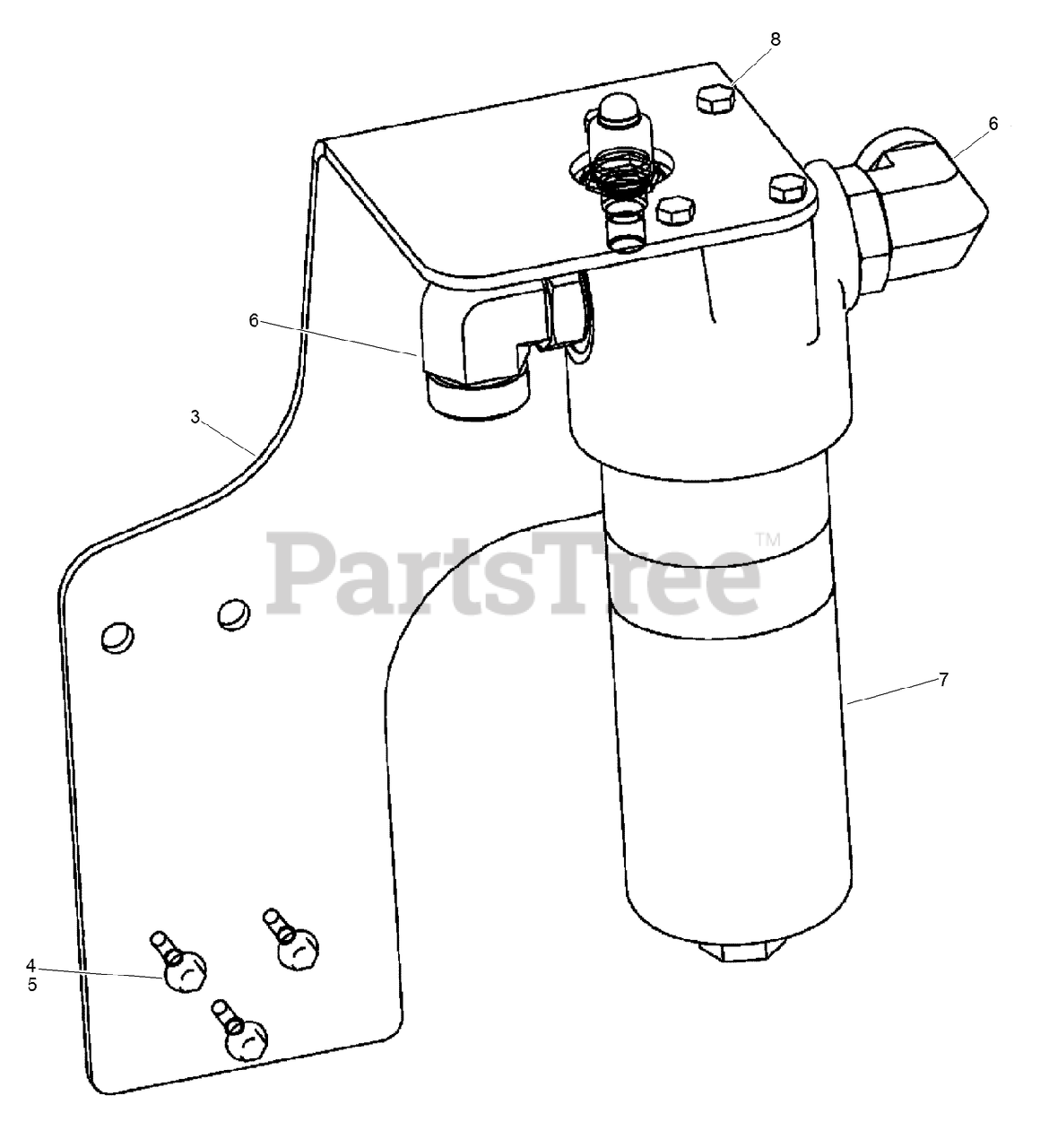

HI PRESSURE HYDRAULIC FLITER FITTING KIT Parts Diagram

  • Title

1

Toro AU116581

KIT - Hydraulic Fittings

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU116140

ASSEMBLY - Undercarriage

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU120230

ASSEMBLY - Filter Mount

$

$

Currently unavailable

4

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

$1.99

$

Usually ships in 3-6 days

0

5

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU8OL32020

CONNECTION - 90 Deg, -20 ORFS / -20 ORB

$

$

Currently unavailable

7

Toro AU118636

FILTER-HYD, HIGH PRESSURE

$

$

Currently unavailable

8

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0
