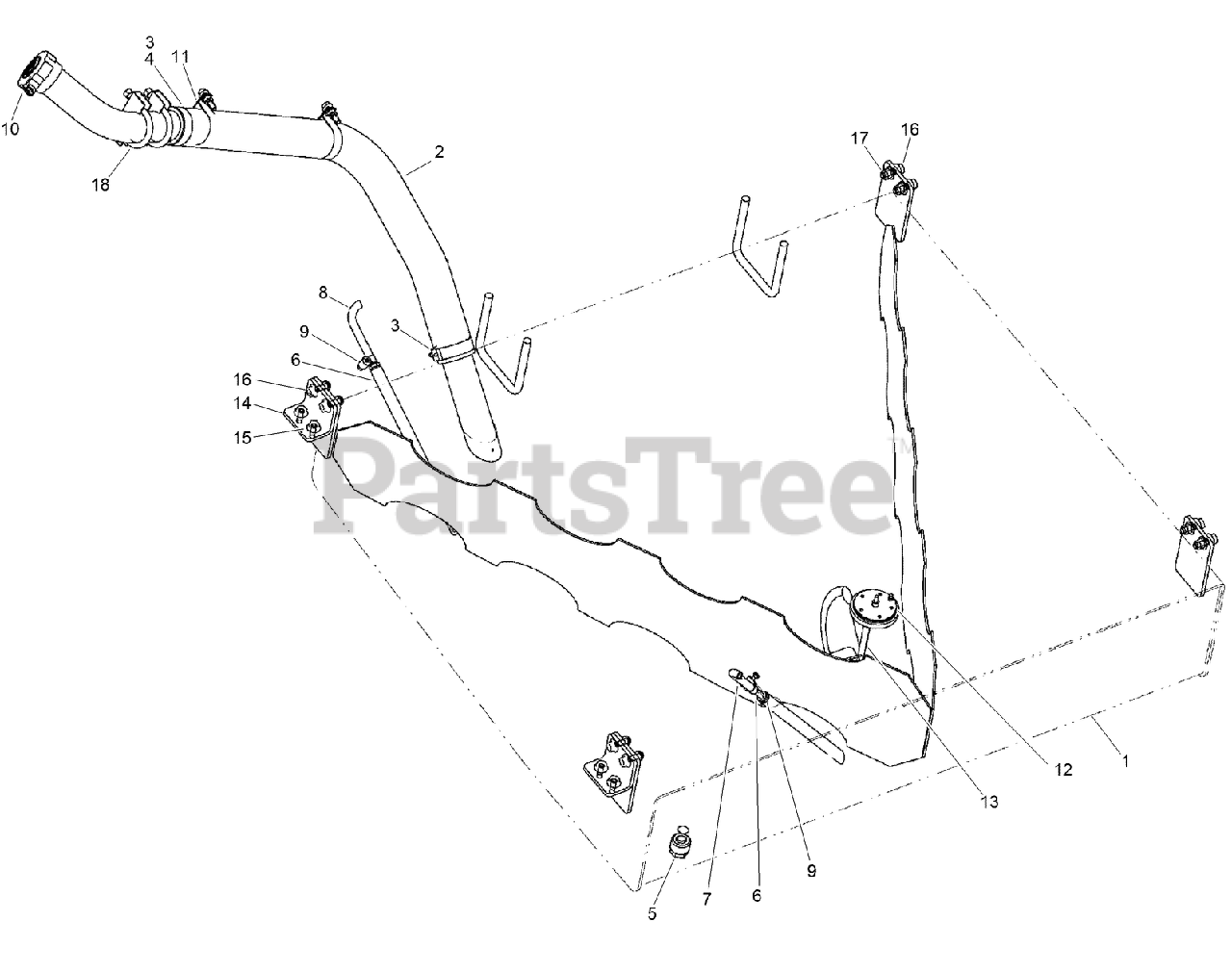

DD 4045 - Toro EarthPro Directional Drill (2009) FUEL TANK ASSEMBLY Parts Diagram

EarthPro Directional Drill

FUEL TANK ASSEMBLY Parts Diagram

  • Title

Toro AU117640

ASSEMBLY - Fuel Tank

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU116134

WELDMENT - Fuel Tank

$

$

Currently unavailable

2

Toro AU117637

HOSE - Fuel Tank Fill

$

$

Currently unavailable

3

Toro AU8CL14032

CLAMP, T-BOLT

$

$

Currently unavailable

4

Toro AU118832

NECK-FILLER, FUEL

$

$

Currently unavailable

5

Toro AU119908

PLUG-HEX, MAGNETIC

$

$

Currently unavailable

6

Toro AU217-151

STEM-STRAIGHT, BEAD

$28.99

$

Usually ships in 3-6 days

0

7

Toro AU117649

HOSE - 3/8", Engine Fuel Supply

$

$

Currently unavailable

8

Toro AU117650

HOSE - 3/8?, Engine Fuel Return

$

$

Currently unavailable

9

Toro AU214-1408

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

10

Toro AU117630

CAP-FUEL (W/LOCK)

$

$

Currently unavailable

11

Toro AU91-900729-14

CLAMP - Support, Hose

$

$

Currently unavailable

12

Toro AU528359R4

GASKET-SENDING UNIT

$

$

Not available

13

Toro AU117631

SENDER-FUEL

$

$

Currently unavailable

14

Toro AU119508

PLATE - Tank Mounting

$

$

Currently unavailable

15

Toro AU100875

SCREW, METRIC FLANGE w/BODY - M10 x 20

$3.99

$

Usually ships in 3-6 days

0

16

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

17

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU111838

BOLT-U, CLAMP

$

$

Currently unavailable

19

Toro AU121900

HOSE - 3/8, Engine to Fuel Filter

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU100318

SCREW, METRIC FLANGE w/BODY - M8 x 35

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

21

Toro AU100526

NUT-TORQUE, PREVAILING

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0
