DD 4045 - Toro EarthPro Directional Drill (2009) EXHAUST ASSEMBLY Parts Diagram

EarthPro Directional Drill

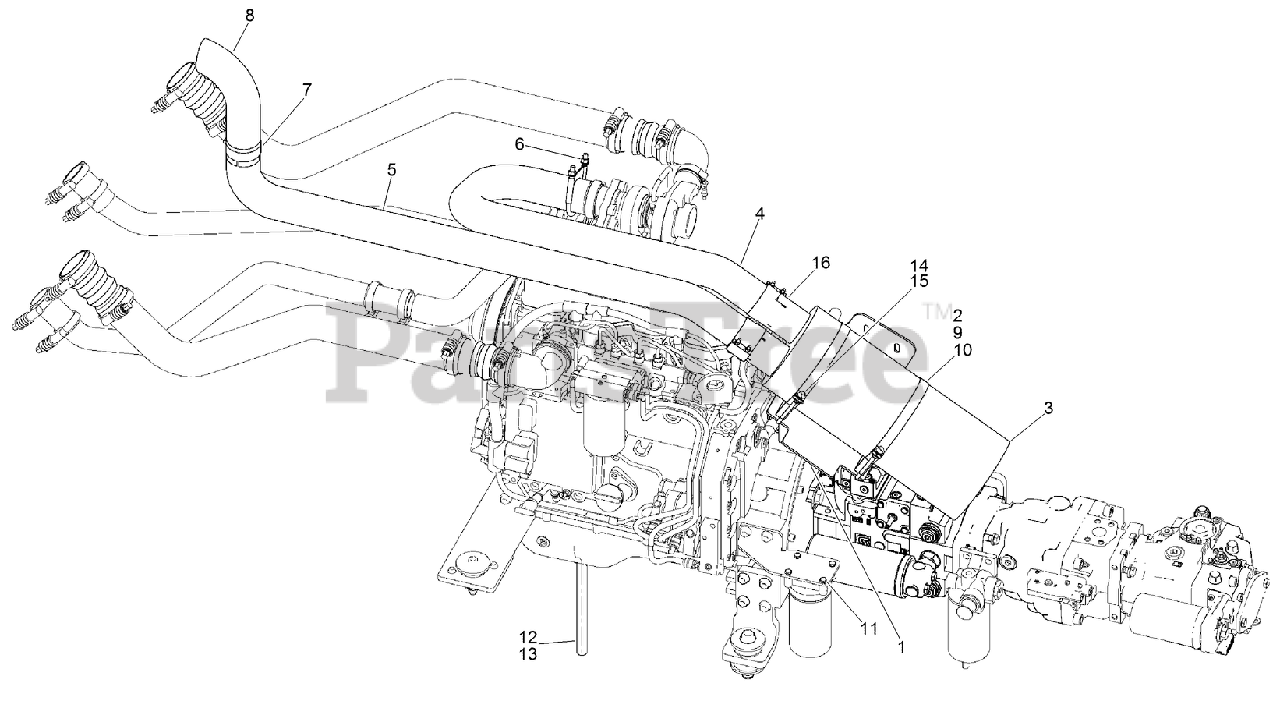

EXHAUST ASSEMBLY Parts Diagram

  • Title

Toro AU116048

ASSEMBLY - Engine Cummins 148 HP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU117213

BRACKET - Mounting, Muffler / Air Filter

$

$

Currently unavailable

2

Toro AU117217

BAND-MOUNTING, MUFFLER

$

$

Currently unavailable

3

Toro AU116316

ASSEMBLY - Muffler w/Insulation Blanket

$

$

Currently unavailable

4

Toro AU116317

TUBE - Exhaust, In

$

$

Currently unavailable

5

Toro AU116318

TUBE - Exhaust, Out

$

$

Currently unavailable

6

Toro AU8NG28118

CLAMP-GUILLOTINE

$

$

Currently unavailable

7

Toro AU106185

CLAMP-MUFFLER

$44.99

$

Usually ships in 3-6 days

0

8

Toro AUP206302

PIPE-STACK

$

$

Not available

9

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU426-524

BOLT-Hex, 5/16 NC x 1-1/2 inch
(Superseded to 5-1470)

$0.99

$

In Stock, Qty 10

0

12

Toro AU122422

HOSE-DRAIN, OIL

$

$

Currently unavailable

13

Toro AU214-1408

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

14

Toro AU100329

SCREW, METRIC FLANGE w/BODY - M8 x 110

$17.99

$

Usually ships in 3-6 days

0

15

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU110244

CLAMP - Torc Tite 3

$

$

Currently unavailable
