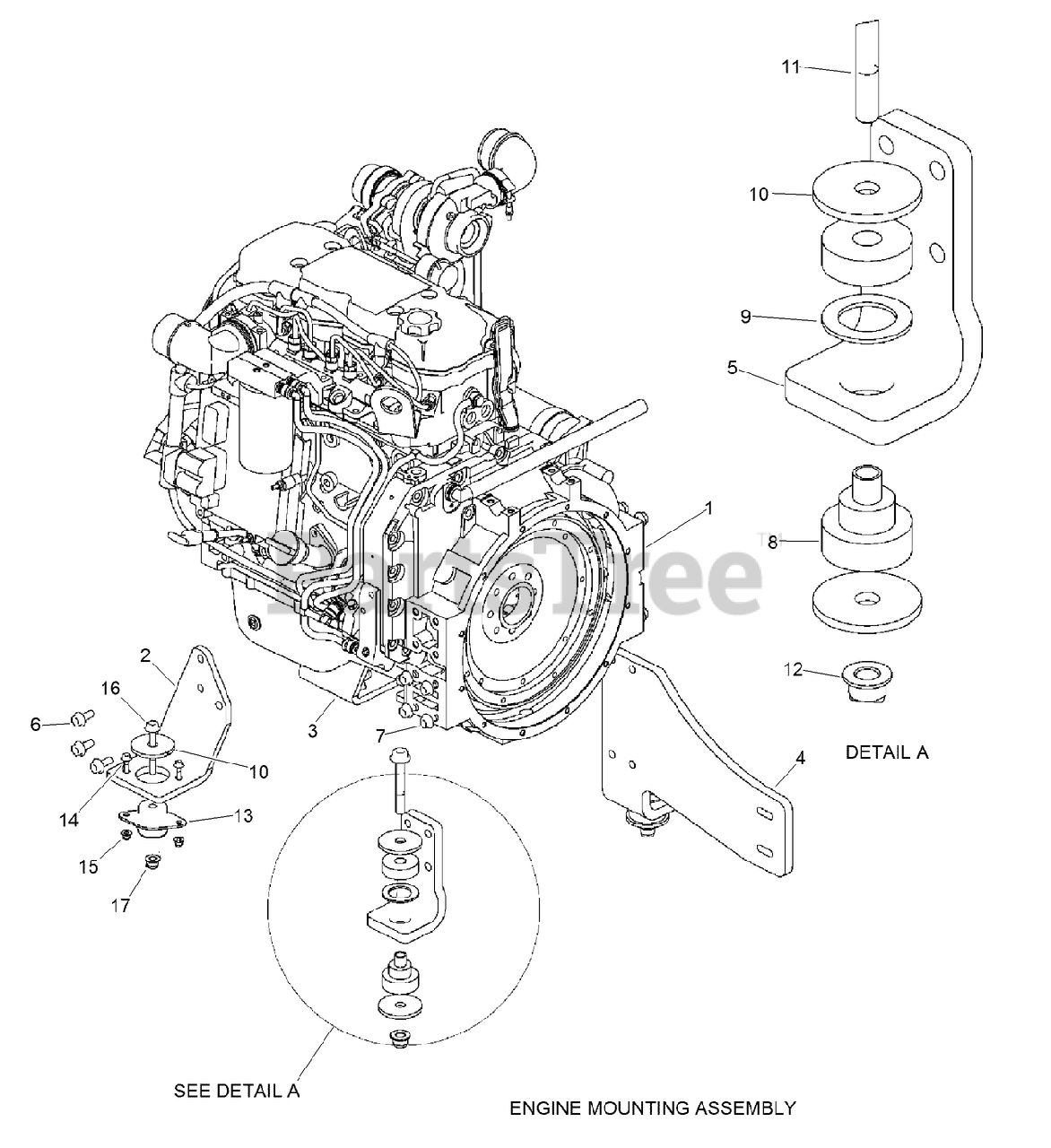

DD 4045 - Toro EarthPro Directional Drill (2009) ENGINE ASSEMBLY Parts Diagram

EarthPro Directional Drill

ENGINE ASSEMBLY Parts Diagram

  • Title

Toro AU116048

ASSEMBLY - Engine Cummins 148 HP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU115953

ENGINE - Cummins 148 HP

$

$

Currently unavailable

2

Toro AU116257

MOUNT - Engine (Front Left)

$

$

Currently unavailable

3

Toro AU116265

MOUNT - Engine (Front Right)

$

$

Currently unavailable

4

Toro AU117688

MOUNT - Engine (Rear Right)

$

$

Currently unavailable

5

Toro AU116259

MOUNT - Engine (Rear Left)

$

$

Currently unavailable

6

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

7

Toro AU100347

SCREW-HHF

$

$

Currently unavailable

8

Toro AU117690

ISOLATOR-MOUNT, UNIVERSAL

$

$

Currently unavailable

9

Toro AU117984

SPACER-ISOLATOR

$

$

Currently unavailable

10

Toro AU119802

WASHER

$

$

Currently unavailable

11

Toro AU100368

SCREW-FLANGE

$

$

Currently unavailable

12

Toro AU100529

NUT-HHF

$6.99

$

Usually ships in 3-6 days

0

13

Toro AU117985

ISOLATOR MOUNT - Front

$

$

Currently unavailable

14

Toro AU100398

SCREW, METRIC FLANGE FULL - M8 x 25

$2.49

$

Usually ships in 3-6 days

0

15

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU100354

SCREW, METRIC FLANGE w/BODY-M12 x 90

$9.49

$

Usually ships in 3-6 days

0

17

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0
