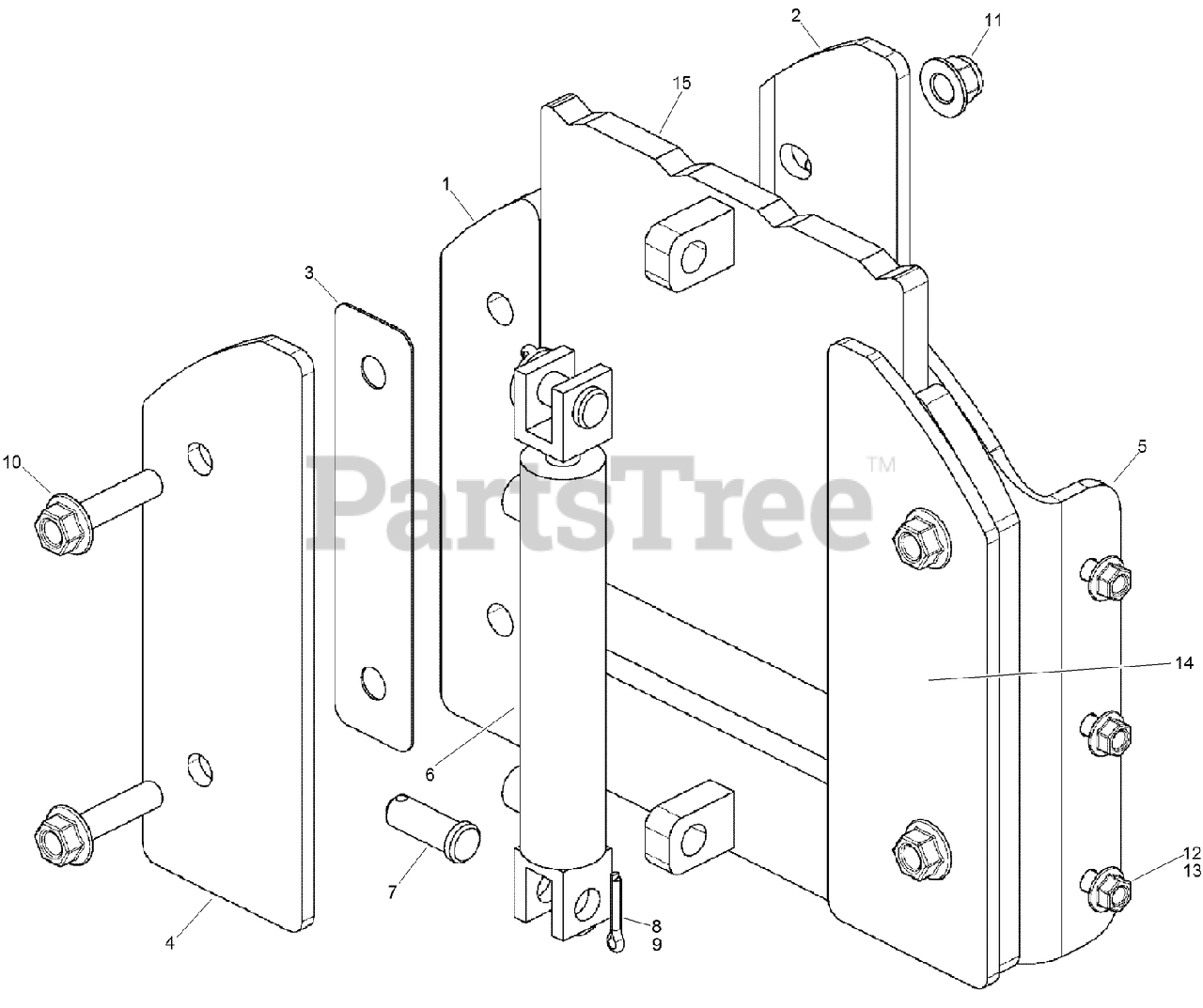

DD 4045 - Toro EarthPro Directional Drill (2009) ELEVATOR ASSEMBLY Parts Diagram

EarthPro Directional Drill

ELEVATOR ASSEMBLY Parts Diagram

  • Title

Toro AU121923

ASSEMBLY - Elevator

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU121928

PLATE - Elevator, Cylinder Lift Point

$

$

Currently unavailable

2

Toro AU118322

PLATE - Elevator

$

$

Currently unavailable

3

Toro AU118323

PLATE - Elevator

$

$

Currently unavailable

4

Toro AU118325

PLATE - Elevator

$

$

Currently unavailable

5

Toro AU118326

PLATE - Elevator

$

$

Currently unavailable

6

Toro AU118214

HYD CYLINDER ASM

$

$

Currently unavailable

7

Toro AUH030262

PIN - Clevis

$

$

Currently unavailable

8

Toro AU432-1620

PIN - Cotter, 0.250 x 1.25 in ZN

$

$

Not available

9

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU100363

SCREW-HHF

$

$

Currently unavailable

11

Toro AU100529

NUT-HHF

$6.99

$

Usually ships in 3-6 days

0

12

Toro AU100348

SCREW-HHF

$4.99

$

In Stock, Qty 7

0

13

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

14

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

15

Toro AU121929

PLATE - Elevator, Slide / Pipe Lift

$

$

Currently unavailable
