DD 4045 - Toro EarthPro Directional Drill (2009) COOLING PACKAGE MOUNTING ASSEMBLY Parts Diagram

EarthPro Directional Drill

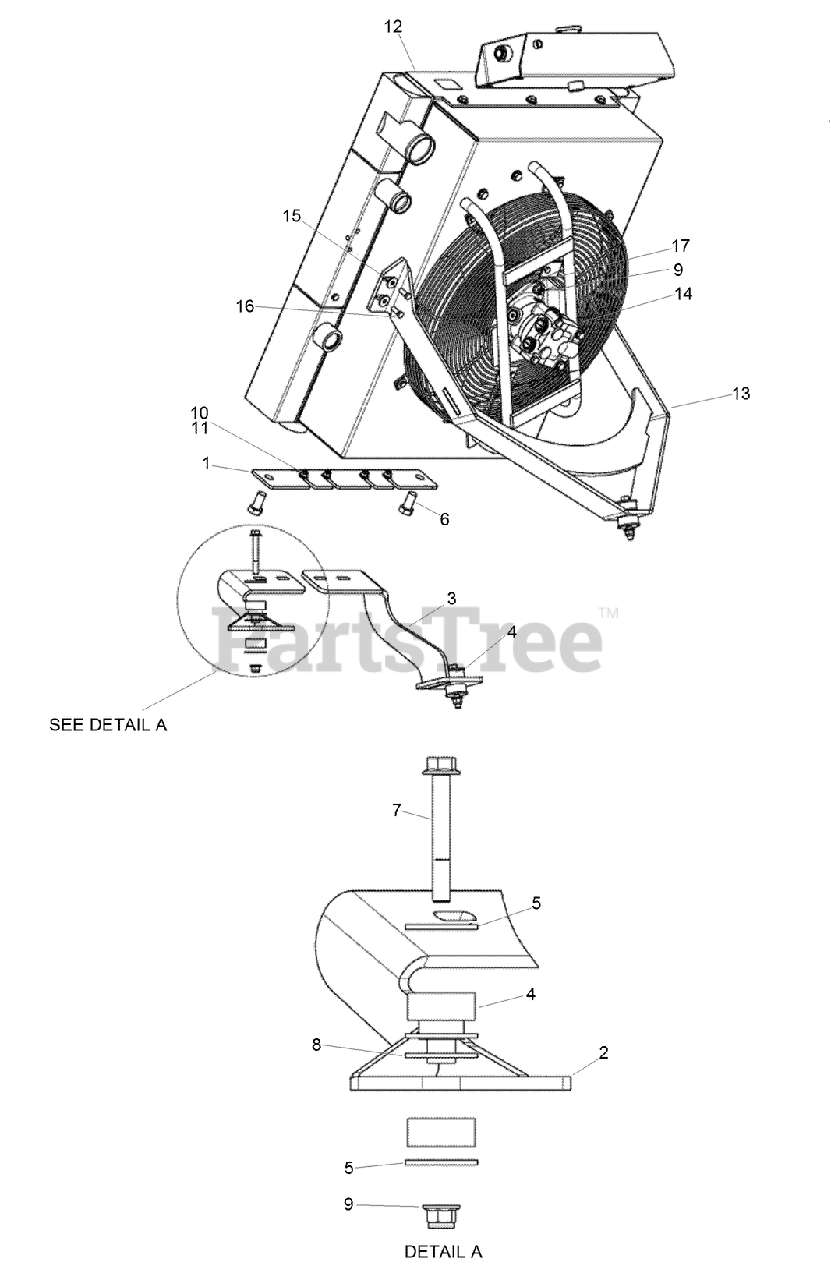

COOLING PACKAGE MOUNTING ASSEMBLY Parts Diagram

  • Title

Toro AU117986

MOUNTING - Cooling Package

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU118008

PLATE - Mounting

$

$

Currently unavailable

2

Toro AU118087

SUPPORT - Isolator, Left

$

$

Currently unavailable

3

Toro AU118088

SUPPORT - Isolator, Right

$

$

Currently unavailable

4

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

5

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

6

Toro AU426-1224

BOLT

$

$

Not available

7

Toro AU100354

SCREW, METRIC FLANGE w/BODY-M12 x 90

$9.49

$

Usually ships in 3-6 days

0

8

Toro AU495-81203

WASHER

$22.99

$

Usually ships in 3-6 days

0

9

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

10

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

11

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro AU117990

PACKAGE - Cooling

$

$

Currently unavailable

13

Toro AU118354

SUPPORT - Isolator, Center

$

$

Currently unavailable

14

Toro AU118007

HYD MOTOR ASM

$

$

Currently unavailable

15

Toro AU496-41041

WASHER

$9.49

$

Usually ships in 3-6 days

0

16

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0
