DD 4045 - Toro EarthPro Directional Drill (2009) COOLING PACKAGE ASSEMBLY Parts Diagram

EarthPro Directional Drill

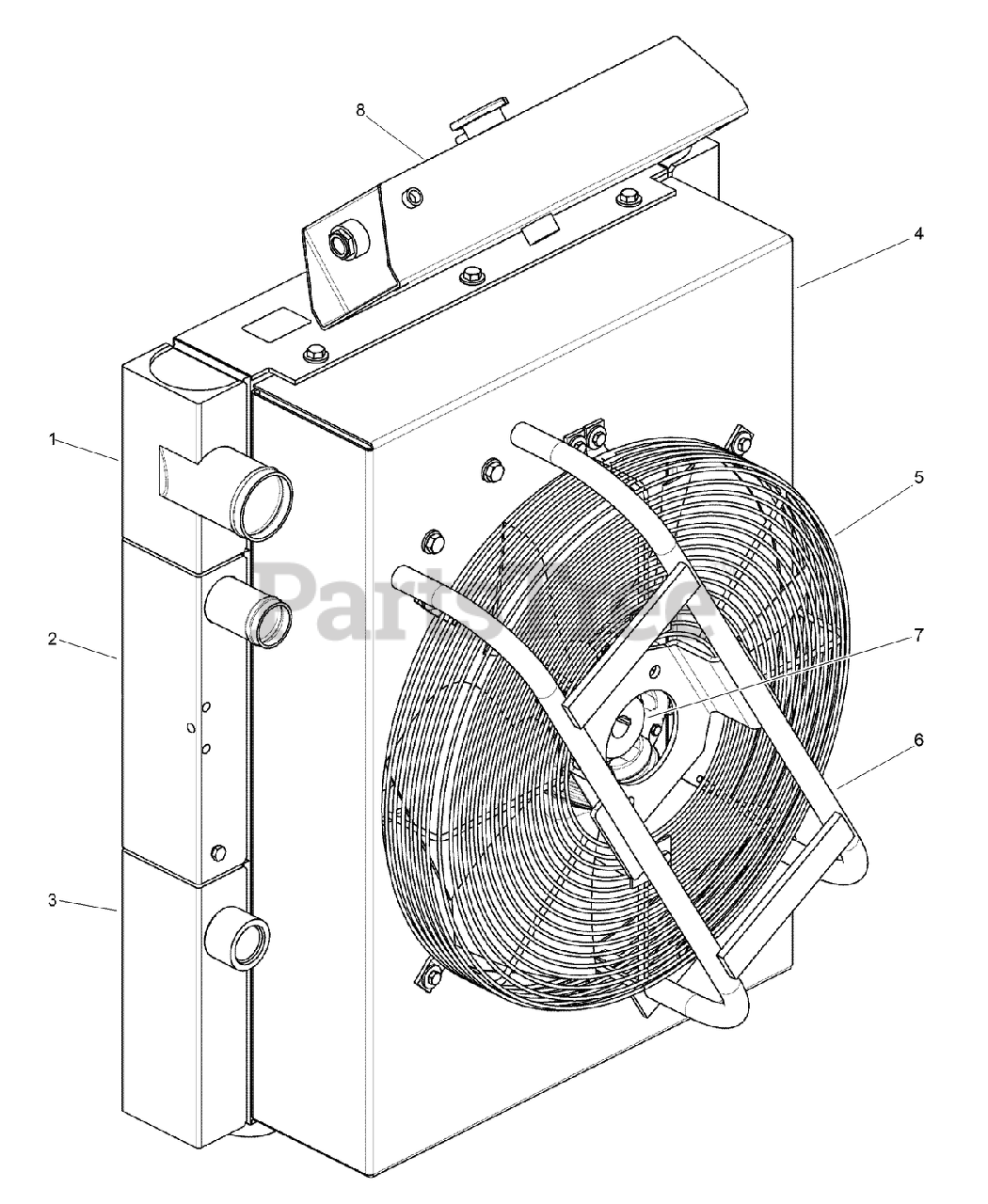

COOLING PACKAGE ASSEMBLY Parts Diagram

  • Title

Toro AU117990

PACKAGE - Cooling

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU117989

COOLER - Charge Air

$

$

Currently unavailable

2

Toro AU117988

COOLER - Radiator

$

$

Currently unavailable

3

Toro AU117987

COOLER - Hydraulic Oil

$

$

Currently unavailable

4

Toro AU117997

ASSEMBLY - Shroud

$

$

Currently unavailable

5

Toro AU118001

GUARD-FAN, 22 INCH

$

$

Currently unavailable

6

Toro AU117996

BRACKET-MOUNTING

$

$

Currently unavailable

7

Toro AU118000

OBS FAN-COOLING, 22IN
(Superseded to 130-7415)

$

$

Not available

8

Toro AU118080

TANK-FILL/SURGE

$

$

Currently unavailable
