DD 4045 - Toro EarthPro Directional Drill (2009) BASKET ROD LOADER ASSEMBLY Parts Diagram

EarthPro Directional Drill

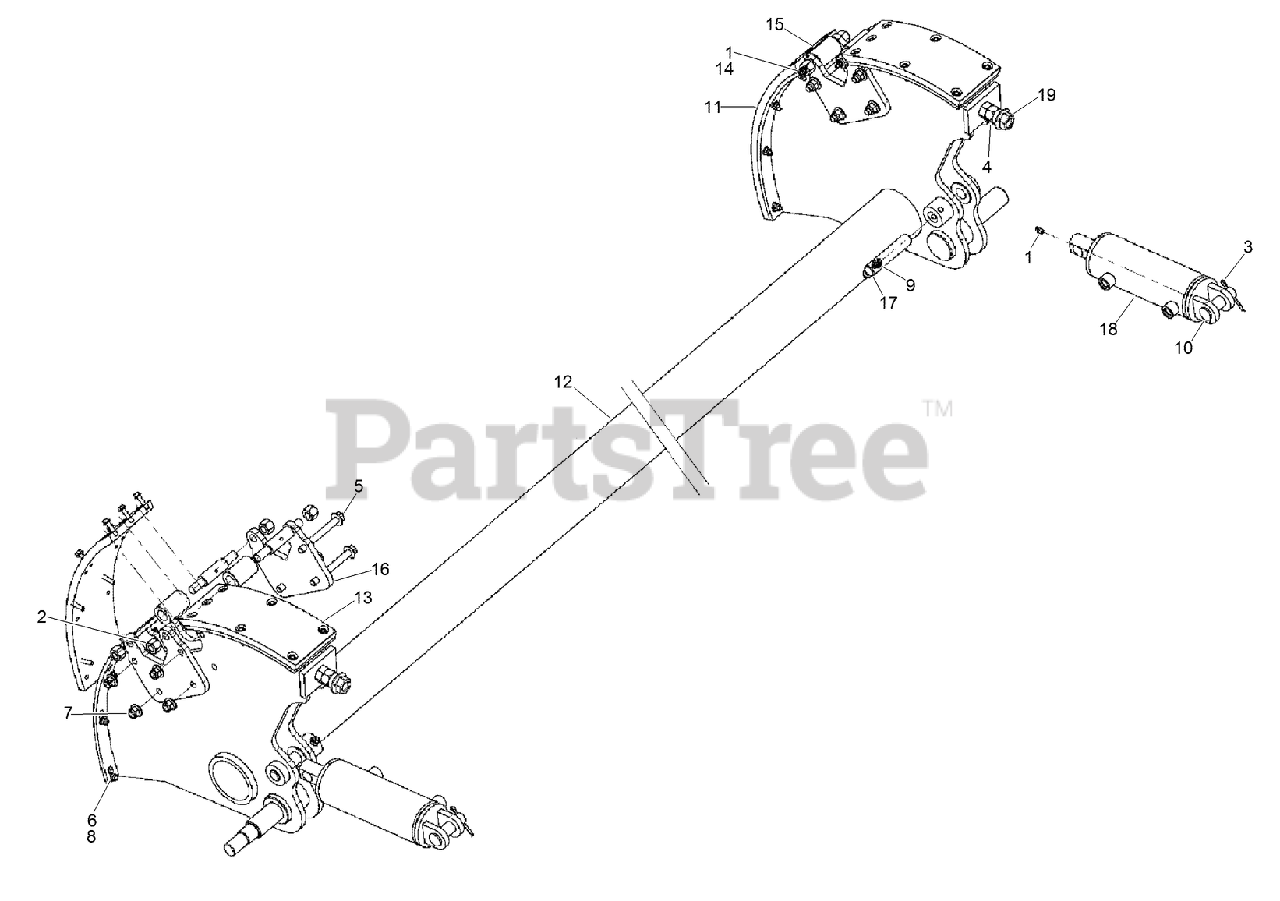

BASKET ROD LOADER ASSEMBLY Parts Diagram

  • Title

Toro AU117272

ASSEMBLY - Rod Loader

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU231-4218

NUT - Prev Trq 1/2 GRA ZND NonDir

$

$

Not available

3

Toro AU432-1028

PIN-cotter, 5/32 x 1-3/4 inch
(Superseded to 3272-17)

$2.99

$

In Stock, Qty 5

0

4

Toro AU829-1416

NUT - M16 Class 10 ZND

$

$

Currently unavailable

5

Toro AU100339

SCREW-FLANGE, METRIC

$2.99

$

Usually ships in 3-6 days

0

6

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

7

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

8

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU109721

SCREW, METRIC FLANGE w/BODY - M6 x 50

$

$

Currently unavailable

10

Toro AU109885

PIN-CLEVIS

$

$

Currently unavailable

11

Toro AU117284

PAD-WEAR, ROD LOADER (LONG)

$

$

Currently unavailable

12

Toro AU117300

ASSEMBLY - Cam

$

$

Currently unavailable

13

Toro AU117305

PAD-WEAR, ROD LOADER (SHORT)

$

$

Currently unavailable

14

Toro AU117339

SHAFT-ROLLER, PIPE

$

$

Currently unavailable

15

Toro AU117340

TUBE-ROLLER

$

$

Currently unavailable

16

Toro AU117358

PLATE - Pipe Holder

$

$

Currently unavailable

17

Toro AU117427

PIN-STRAIGHT

$

$

Currently unavailable

18

Toro AU120624

SCREW-HH

$

$

Currently unavailable

19

Toro AU120606

HYD CYLINDER ASM

$

$

Currently unavailable
