DD 4045 - Toro EarthPro Directional Drill (2009) AIR HAMMER ATTACHMENT KIT (OPTIONAL) Parts Diagram

EarthPro Directional Drill

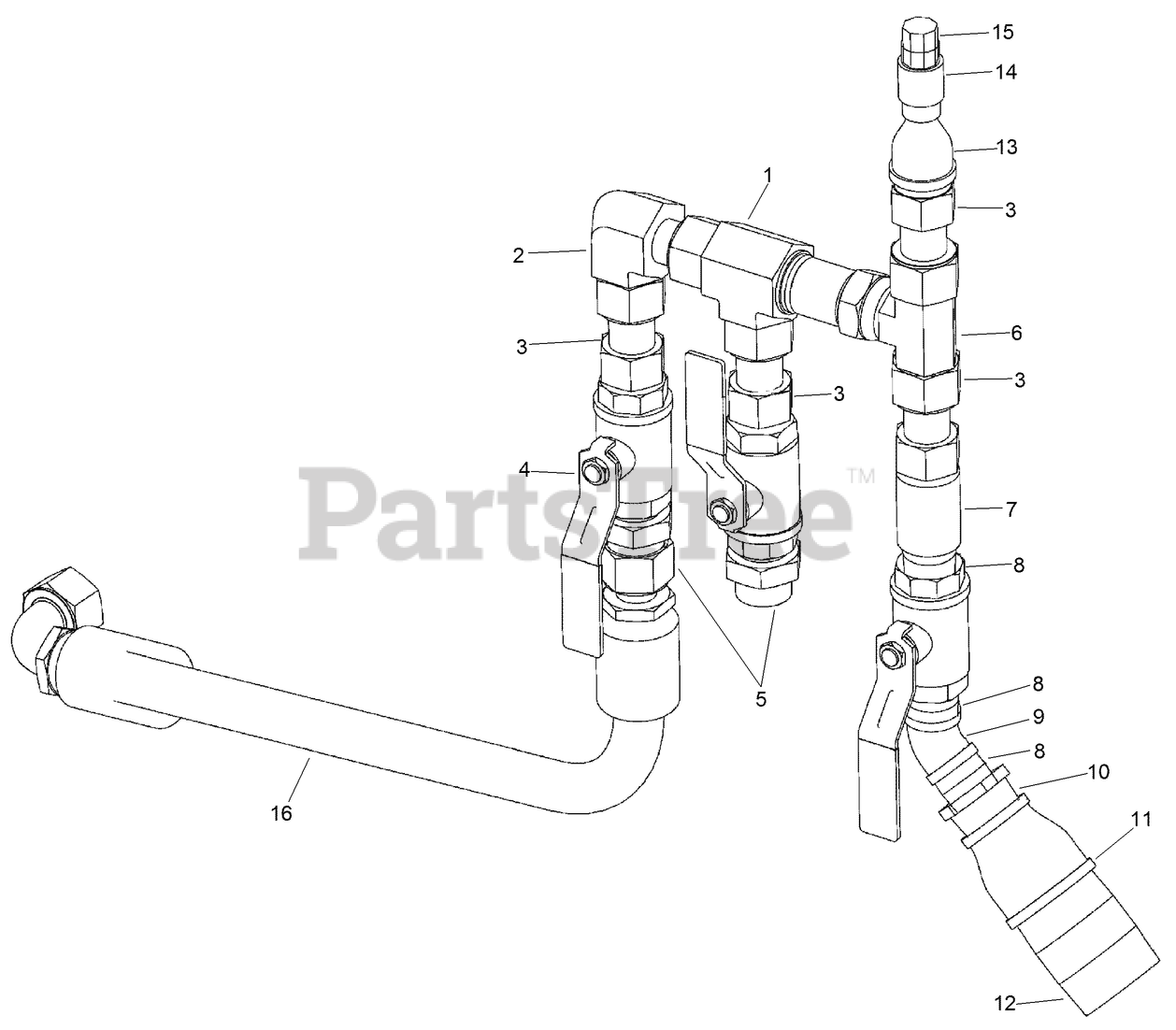

AIR HAMMER ATTACHMENT KIT (OPTIONAL) Parts Diagram

  • Title

Toro AU124704

Attachment Kit

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU8OR91616

FITTING-TEE, BULKHEAD

$

$

Currently unavailable

2

Toro AU8OL81616

CONNECTION - 90 Degree, -16 ORFS / -16 ORFS

$

$

Currently unavailable

3

Toro AU8OA65016

FITTING-STRAIGHT

$

$

Currently unavailable

4

Toro AU8HV22016

VALVE-BALL

$

$

Currently unavailable

5

Toro AU8OA11616

FITTING-STRAIGHT

$

$

Currently unavailable

6

Toro AU8OB81616

FITTING-TEE

$

$

Currently unavailable

7

Toro AU221-340

COUPLING-PIPE

$

$

Currently unavailable

8

Toro AU221-236

NIPPLE-PIPE

$

$

Currently unavailable

9

Toro AU221-370

FITTING-ELBOW, 45 DEG

$

$

Currently unavailable

10

Toro AU221-70

FITTING-REDUCER

$

$

Currently unavailable

11

Toro AU221-362

FITTING-REDUCER, BELL

$

$

Currently unavailable

12

Toro AU221-305

NIPPLE-PIPE

$

$

Currently unavailable

13

Toro AU8PC11604

FITTING-REDUCER

$

$

Currently unavailable

14

Toro AU8QD55204

NIPPLE-CONNECT, QUICK

$

$

Currently unavailable

15

Toro AU8QD08204

CAP-DUST, PLASTIC
(Superseded to 125-6145)

$

$

Not available

16

Toro AU124711

HYD HOSE ASM

$

$

Currently unavailable
