DD 4045 - Toro EarthPro Directional Drill (2009) AIR CLEANER AND PUMP MOUNT ASSEMBLY Parts Diagram

EarthPro Directional Drill

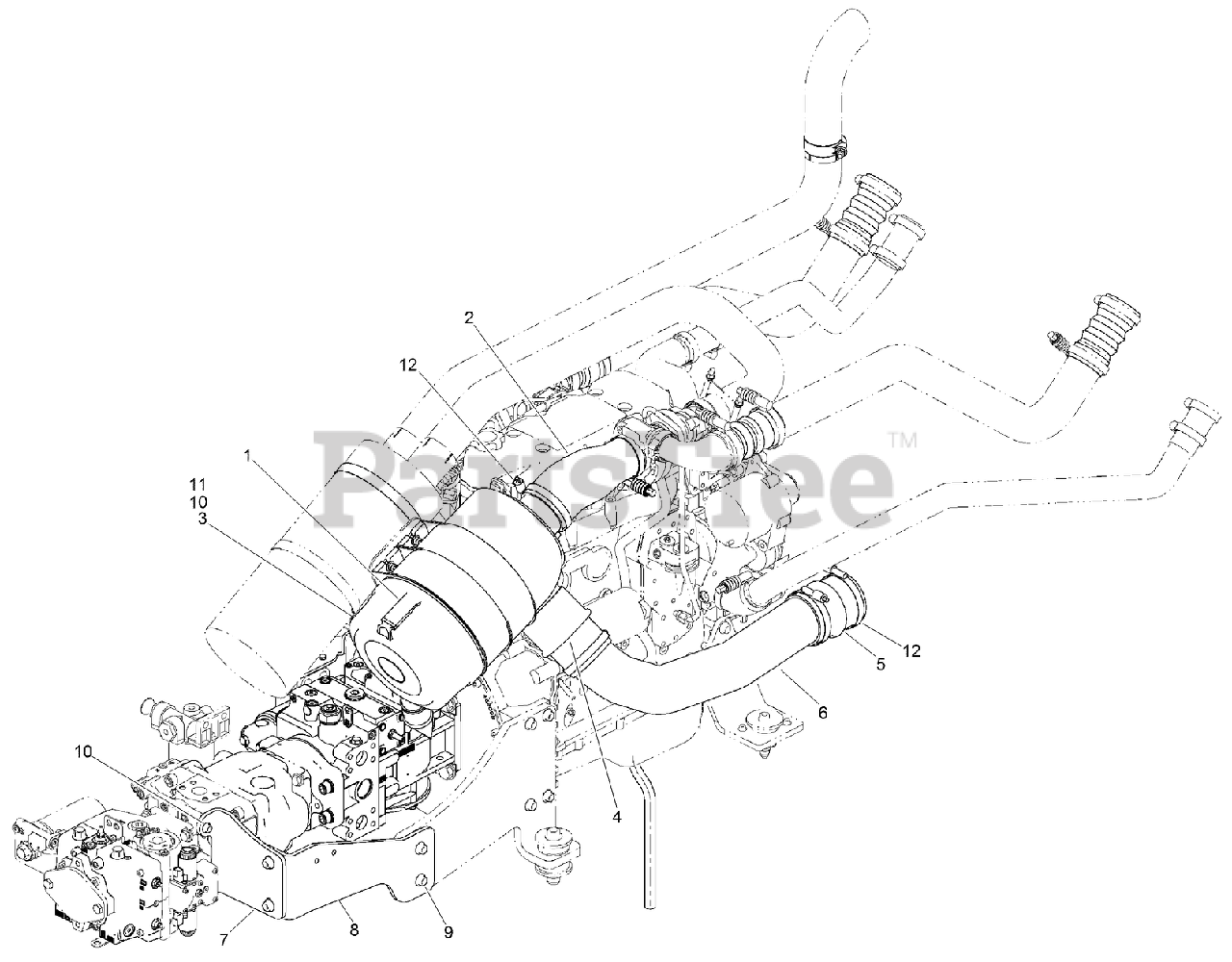

AIR CLEANER AND PUMP MOUNT ASSEMBLY Parts Diagram

  • Title

Toro AU116048

ASSEMBLY - Engine Cummins 148 HP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

2

Toro AU116319

AIR-INTAKE - Out

$

$

Currently unavailable

3

Toro AU116588

ASSEMBLY - Air Cleaner

$

$

Currently unavailable

4

Toro AUP105609

REDUCER, HUMP HOSE - 4-1/2 to 4

$

$

Currently unavailable

5

Toro AUP540256

ADAPTER, HUMP HOSE - 4

$

$

Currently unavailable

6

Toro AU117218

AIR INTAKE - Fresh Air

$

$

Currently unavailable

7

Toro AU116261

BRACKET - Mounting, Pump

$

$

Currently unavailable

8

Toro AU117689

BRACKET - Mounting, Center

$

$

Currently unavailable

9

Toro AU100348

SCREW-HHF

$4.99

$

In Stock, Qty 7

0

10

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

11

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

12

Toro AU102427

CLAMP-TORQUE, CONSTANT

$15.99

$

Usually ships in 3-6 days

0
