DD 4045 - Toro EarthPro Directional Drill (2009) 9 SECTION VALVE HYDRAULIC FITTING KIT Parts Diagram

EarthPro Directional Drill

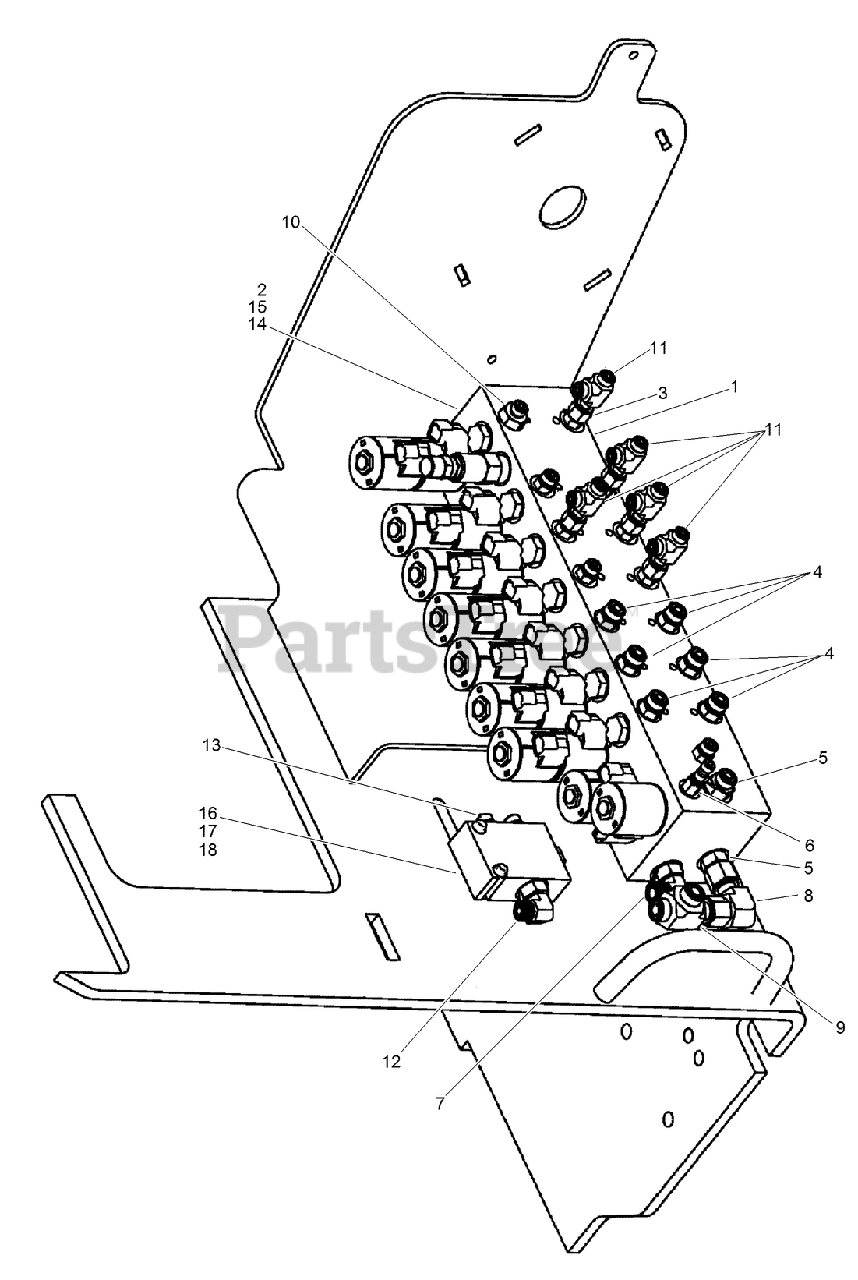

9 SECTION VALVE HYDRAULIC FITTING KIT Parts Diagram

  • Title

1

Toro AU116581

KIT - Hydraulic Fittings

$

$

Currently unavailable

2

Toro AU111494

9 SECTION HYD VALVE ASM

$

$

Not available

3

Toro AU8OA30406

CONNECTION - Straight, -4 ORFS / -6 ORB

$

$

Currently unavailable

4

Toro AU8OA30606

CONNECTION - Straight, -6 ORFS / -6 ORB

$

$

Currently unavailable

5

Toro AU8OA30608

CONNECTION - Straight, -6 ORFS / -8 ORB

$

$

Currently unavailable

6

Toro AU8QD63501

COUPLING - Quick Disconnect

$

$

Currently unavailable

7

Toro AU8OL30808

CONNECTION - 90 Deg, -8 ORFS / -8 ORB

$

$

Currently unavailable

8

Toro AU8OL80808

CONNECTION - 90 Deg, -8 ORFS / -8 ORFS

$

$

Currently unavailable

9

Toro AU8OR80808

CONNECTION - Run Tee, -8 ORFS / -8 ORFS

$

$

Currently unavailable

10

Toro AU112767

FITTING-STR,ORIF

$

$

Currently unavailable

11

Toro AU8OR80404

CONNECTION - Run Tee, -4 ORFS / -4 ORFS

$

$

Currently unavailable

12

Toro AU8OL30408

CONNECTION - 90 Deg, -4 ORFS / -8 ORB

$

$

Currently unavailable

13

Toro AU8OA30404

CONNECTION - Straight, -4 ORFS / -4 ORB

$

$

Currently unavailable

14

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU112323

HYD FLOW DIVIDER VALVE ASM

$

$

Currently unavailable

17

Toro AU100315

SCREW-FLANGE, METRIC

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0
