DD 2024 - Toro EarthPro Directional Drill (2007) TRAVEL PENDANT MACHINE SERIAL NUMBERS THRU DD202490150 Parts Diagram

EarthPro Directional Drill

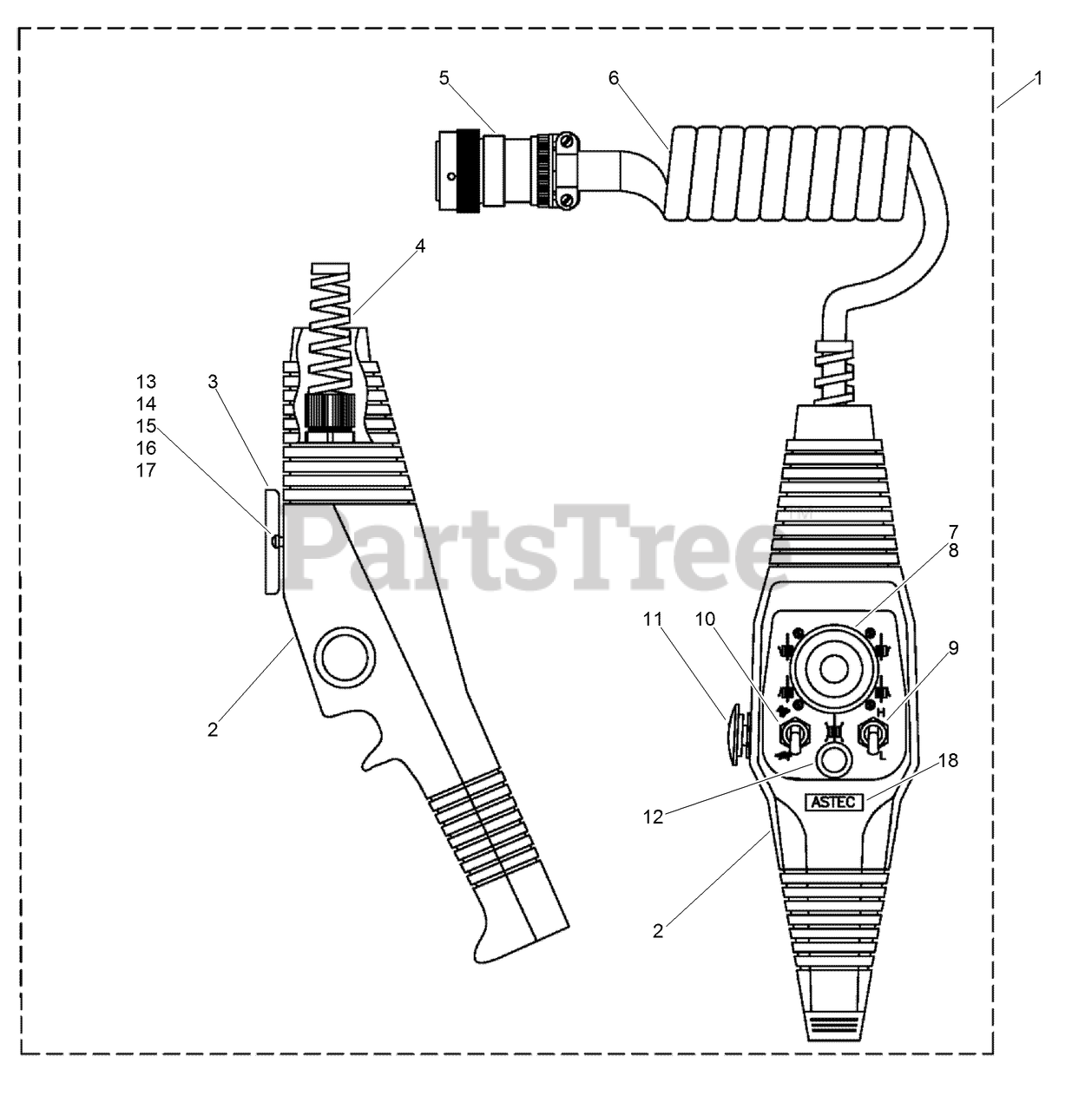

TRAVEL PENDANT MACHINE SERIAL NUMBERS THRU DD202490150 Parts Diagram

  • Title

1

Toro AU32GB9810

PENDANT - Travel
(Superseded to 125-1629)

$

$

Not available

2

Toro AU6EN83101

HOUSING - Pendant

$

$

Currently unavailable

3

Toro AU8EH12002

MAGNET - Ceramic, 2.03 Diameter x .312 H

$

$

Currently unavailable

4

Toro AU8EP19301

CORD GRIP - with Spiral, .39-.55, Black

$

$

Currently unavailable

5

Toro AU8EC61010-01

PLUG - Male, with Clamp, 18-14

$

$

Currently unavailable

6

Toro AU8EC81305

CORD - Control, Retract 24 inch/10Foot

$

$

Currently unavailable

7

Toro AU8EP47612

JOYSTICK - Travel

$

$

Currently unavailable

8

Toro AU8EP47612-1

CONNECTOR - 8 Pin Ribbon

$

$

Currently unavailable

9

Toro AU8EP46142

SWITCH - Toggle, Mini, Off-None-On

$

$

Currently unavailable

10

Toro AU8EP46141

SWITCH - Toggle, Mini, (On)-Off-(On)

$

$

Currently unavailable

11

Toro AU8EP46101A

PUSHBUTTON, Red Mushroom, Momentary

$

$

Currently unavailable

12

Toro AU8EP46111

PUSHBUTTON, Raised, Normally Open

$

$

Currently unavailable

13

Toro AU8HN32004

NUT - Hex, #10-32, 303 Stainless Steel

$

$

Currently unavailable

14

Toro AU8FW31004

WASHER - Flat, #10, 303 Stainless Steel

$

$

Currently unavailable

15

Toro AU8FW01203

WASHER - Flat, 1/4 inch Stainless Steel

$

$

Currently unavailable

16

Toro AU8LW60096

WASHER - Lock, Split Type, No. 10
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

17

Toro AU8MS32406

SCREW - Machine, Slotted Pan Head

$

$

Currently unavailable

18

Toro AU32GB9811-2

OVERLAY - 32GB9810 - Astec Logo

$

$

Currently unavailable

19

Toro AU114620

DECAL - Travel Pendant E-Stop

Note: Not illustrated

$

$

Currently unavailable
