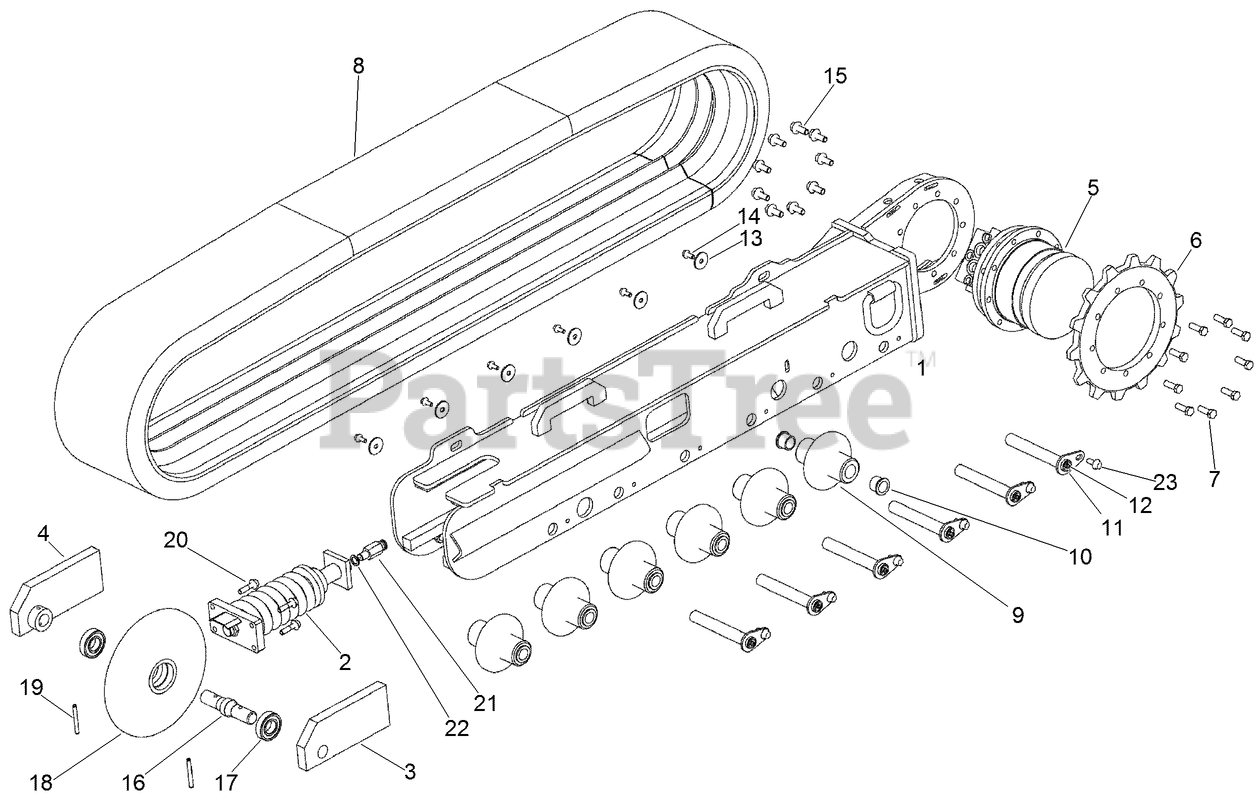

DD 2024 - Toro EarthPro Directional Drill (2007) TRACK ASSEMBLY RH Parts Diagram

EarthPro Directional Drill

TRACK ASSEMBLY RH Parts Diagram

  • Title

Toro AU109342

ASSEMBLY - Track RH

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU108605

WELDMENT - Track, RH

$

$

Currently unavailable

2

Toro AU12GB2412

TENSIONER-TRACK, SPRING/GREASE

$

$

Currently unavailable

3

Toro AU12GB2476

BRACKET - Idler, Right

$

$

Currently unavailable

4

Toro AU12GB2477

BRACKET - Idler, Left
(Superseded to AU12GB2477-03)

$

$

Not available

5

Toro AU8GB85014

PLANETARY GEARBOX ASM

$

$

Currently unavailable

6

Toro AU12GB2424

SPROCKET DRIVE

$

$

Not available

7

Toro AU614-12035

BOLT - Thd to Hd M12 x 35 CL8.8 ZND

$

$

Not available

8

Toro AU12GB2411

TRACK-RUBBER

$

$

Currently unavailable

9

Toro AU12GB2459

ROLLER - Track
(Superseded to AU12GB2459-03)

$

$

Not available

10

Toro AU8CF90016

BEARING-PLAIN, FLANGED

$

$

Currently unavailable

11

Toro AU111968

PIN-FLAG

$

$

Currently unavailable

12

Toro AU219-8

FITTING-Lube 1/4-28 Tpr SAE-LT .54 Long
(Superseded to 302-57)

$1.99

$

Usually ships in 3-6 days

0

13

Toro AU495-81143

WASHER - .406 x 1.50 x .119 in CST ZND

$

$

Currently unavailable

14

Toro AU100872

SCREW, METRIC FLANGE w/BODY - M8 x 20

$1.49

$

Usually ships in 3-6 days

0

15

Toro AU101477

SCREW, METRIC FLANGE w/BODY-M12 x 30

$5.99

$

Usually ships in 3-6 days

0

16

Toro AU12GB2461

PIN-MOUNT, IDLER

$

$

Currently unavailable

17

Toro AU8CF40021

BEARING-BALL

$

$

Not available

18

Toro AU12GB2460

WHEEL - Idler Track
(Superseded to AU12GB2460-03)

$

$

Not available

19

Toro AU38-12044

PIN-SPRING

$

$

Not available

20

Toro AU100333

SCREW-FLANGE

$

$

Not available

21

Toro AU30-807L-1060

VALVE-GREASE

$

$

Not available

22

Toro AU30-807L-1059

SEAL-O RING

$

$

Not available

23

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0
