DD 2024 - Toro EarthPro Directional Drill (2007) OPERATOR'S CONSOLE ASSEMBLY SERIAL NUMBERS SS202480135 AND AFTER Parts Diagram

EarthPro Directional Drill

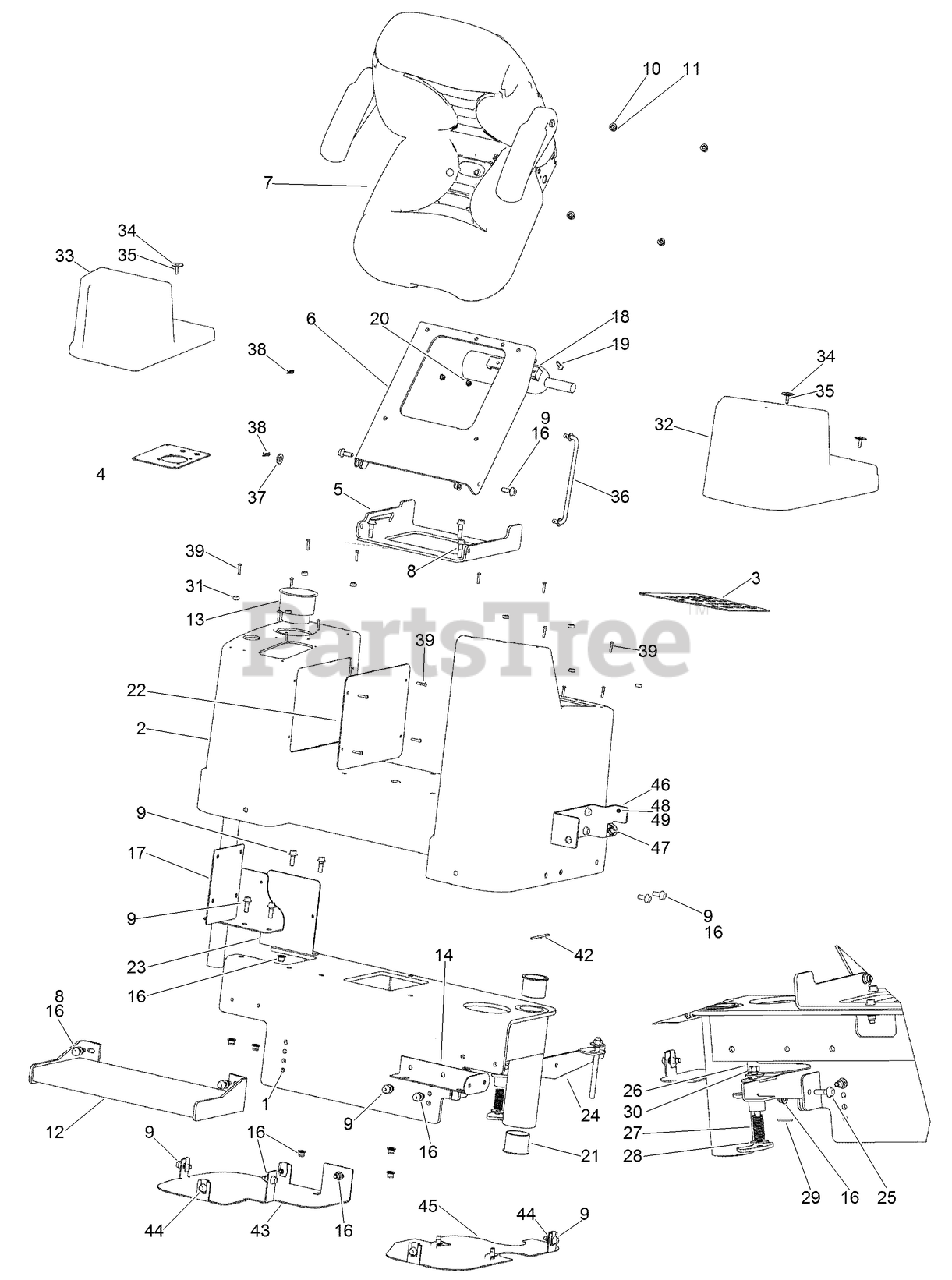

OPERATOR'S CONSOLE ASSEMBLY SERIAL NUMBERS SS202480135 AND AFTER Parts Diagram

  • Title

Toro AU114804

ASSEMBLY - Operators Console

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110259

WELDMENT - Operators Console

$

$

Currently unavailable

2

Toro AU12GB9210

CONSOLE - Fiberglass

$

$

Currently unavailable

3

Toro AU108630

PLATE - Cover, Left Console

$

$

Not available

4

Toro AU108631

PLATE - Mounting

$

$

Not available

5

Toro AU108632

PLATE - Seat Mount Bottom
(Superseded to AU108632-03)

$

$

Not available

6

Toro AU108633

PLATE - Seat Mount Top

$

$

Currently unavailable

7

Toro AU8EP47010

OPERATOR SEAT ASM (STATIC)

$

$

Currently unavailable

8

Toro AU100331

SCREW-HHF

$

$

Currently unavailable

9

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

10

Toro AU495-81129

WASHER - 0.406 x 0.750 x 0.119 in CST ZND

$

$

Currently unavailable

11

Toro AU329-106

NUT - Hex .375 - 16 GR8 PHC

$

$

Currently unavailable

12

Toro AU12GB9202

ASSEMBLY - Foot Rest

$

$

Currently unavailable

13

Toro AU8EO24121

CUP-HOLDER

$3.49

$

Usually ships in 3-6 days

0

14

Toro AU12GB9228

WELDMENT - Operators Console Support
(Superseded to AU12GB9228-03)

$

$

Not available

16

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU114805

WELDMENT - Umbrella Mount
(Superseded to AU114805-03)

$

$

Not available

18

Toro AU32GB9219

EXTINGUISHER - Fire

$

$

Currently unavailable

19

Toro AU100870

SCREW, METRIC FLANGE w/BODY-M6 x 25

$1.49

$

Usually ships in 3-6 days

0

20

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

21

Toro AU12GB9215

BEARING-FLANGED

$

$

Not available

22

Toro AU108634

PLATE - Seat Ins Panel
(Superseded to AU108634-03)

$

$

Not available

23

Toro AU108635

PLATE - CPU Mount

$

$

Currently unavailable

24

Toro AU108997

ARM - Seat Adjustment
(Superseded to AU108997-03)

$

$

Not available

25

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

26

Toro AU108909

ROD-SWING, SEAT

$

$

Currently unavailable

27

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

28

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

29

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 5

0

30

Toro AU425-108

NUT-Hex 0.500-13 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU8EO24122

GROMMET-RUBBER

$

$

Currently unavailable

32

Toro AU12GB9218

COVER-PROTECTIVE, LEFT
(Superseded to 130-4494)

$

$

Not available

33

Toro AU12GB9219

COVER-PROTECTIVE, RIGHT
(Superseded to 130-4495)

$

$

Not available

34

Toro AU495-81119

WASHER

$

$

Currently unavailable

35

Toro AU8BH21012

SCREW - Button Head (Allen)
(Superseded to 3274-65)

$1.99

$

Usually ships in 3-6 days

0

36

Toro AU109357

ROD-PROP, SEAT

$

$

Currently unavailable

37

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

38

Toro AU136-159

PIN - Cotter Hair Int 3/16 in ZND

$

$

Not available

39

Toro AU440-11016

SCREW - PHD Type 1, #10 - 24 x 1.00 CST ZND

$

$

Currently unavailable

40

Toro AU363-11014

SCREW - Hex Hd #10 - 24 x 0.875 CST PHC

Note: Not illustrated

$

$

Currently unavailable

41

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

Note: Not illustrated

$0.99

$

In Stock, only 3 left!

0

42

Toro AU432-1248

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

43

Toro AU114287

PLATE - Splash Guard

$

$

Currently unavailable

44

Toro AU100863

NUT-U

$

$

Currently unavailable

45

Toro AU115218

PLATE - Splash Guard

$

$

Currently unavailable

46

Toro AU115236

PLATE - Cord Retaining
(Superseded to AU115236-03)

$

$

Not available

47

Toro AU115238

CLIP - Tool

$

$

Currently unavailable

48

Toro AU440-1068

SCREW - PHd Type 1 #6 - 32 x 0.500 CST ZND

$

$

Not available

49

Toro AU193-1003

NUT - KEPS Ext T Wshr #6 - 32 UNC ZP

$0.99

$

Usually ships in 3-6 days

0

Toro AU8AA00005

UMBRELLA

Note: Not illustrated

$

$

Currently unavailable

Toro AU8AA00005

UMBRELLA

Note: Optional Equipment

$

$

Currently unavailable

Toro AU121927

OPERATOR STATION COVER

Note: Not illustrated

$

$

Currently unavailable

Toro AU121927

OPERATOR STATION COVER

Note: Optional Equipment

$

$

Currently unavailable
