DD 2024 - Toro EarthPro Directional Drill (2007) OPERATOR'S CONSOLE ASSEMBLY SERIAL NUMBERS DD202480143 AND PRIOR Parts Diagram

EarthPro Directional Drill

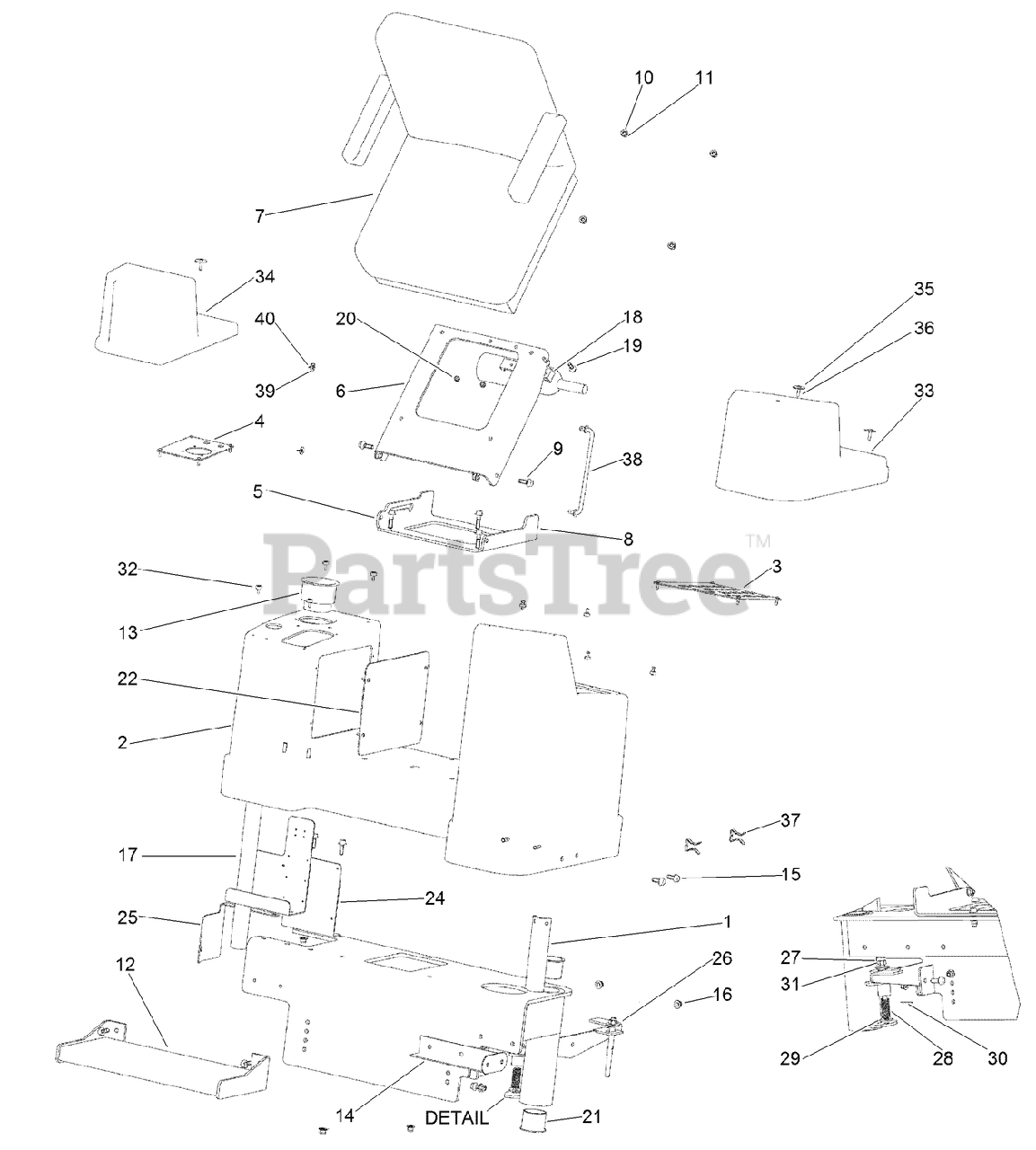

OPERATOR'S CONSOLE ASSEMBLY SERIAL NUMBERS DD202480143 AND PRIOR Parts Diagram

  • Title

Toro AU110232

ASSEMBLY - Operators Console

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU110259

WELDMENT - Operators Console

$

$

Currently unavailable

2

Toro AU12GB9210

CONSOLE - Fiberglass

$

$

Currently unavailable

3

Toro AU108630

PLATE - Cover, Left Console

$

$

Not available

4

Toro AU108631

PLATE - Mounting

$

$

Not available

5

Toro AU108632

PLATE - Seat Mount Bottom
(Superseded to AU108632-03)

$

$

Not available

6

Toro AU108633

PLATE - Seat Mount Top

$

$

Currently unavailable

7

Toro AU8EP47010

OPERATOR SEAT ASM (STATIC)

$

$

Currently unavailable

8

Toro AU100331

SCREW-HHF

$

$

Currently unavailable

9

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

10

Toro AU495-81129

WASHER - 0.406 x 0.750 x 0.119 in CST ZND

$

$

Currently unavailable

11

Toro AU329-106

NUT - Hex .375 - 16 GR8 PHC

$

$

Currently unavailable

12

Toro AU12GB9202

ASSEMBLY - Foot Rest

$

$

Currently unavailable

13

Toro AU8EO24121

CUP-HOLDER

$3.49

$

Usually ships in 3-6 days

0

14

Toro AU12GB9228

WELDMENT - Operators Console Support
(Superseded to AU12GB9228-03)

$

$

Not available

15

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

$1.99

$

Usually ships in 3-6 days

0

16

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

17

Toro AU12GB9230

WELDMENT - Umbrella Mount

$

$

Currently unavailable

18

Toro AU32GB9219

EXTINGUISHER - Fire

$

$

Currently unavailable

19

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

20

Toro AU100525

NUT, METRIC FLANGE PREVAILING - M6 Zinc

$1.49

$

Usually ships in 3-6 days

0

21

Toro AU12GB9215

BEARING-FLANGED

$

$

Not available

22

Toro AU108634

PLATE - Seat Ins Panel
(Superseded to AU108634-03)

$

$

Not available

23

Toro AU440-11012

SCREW - PHd Type 1 #10 - 24 x 0.75 CST ZND
(Superseded to 3250-13)

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

24

Toro AU108635

PLATE - CPU Mount

$

$

Currently unavailable

25

Toro AU108897

PLATE - Mount

$

$

Currently unavailable

26

Toro AU108997

ARM - Seat Adjustment
(Superseded to AU108997-03)

$

$

Not available

27

Toro AU108909

ROD-SWING, SEAT

$

$

Currently unavailable

28

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

29

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 20+

0

31

Toro AU425-108

NUT-Hex 0.500-13 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU8EO24122

GROMMET-RUBBER

$

$

Currently unavailable

33

Toro AU12GB9218

COVER-PROTECTIVE, LEFT
(Superseded to 130-4494)

$

$

Not available

34

Toro AU12GB9219

COVER-PROTECTIVE, RIGHT
(Superseded to 130-4495)

$

$

Not available

35

Toro AU495-81119

WASHER

$

$

Currently unavailable

36

Toro AU8BH21012

SCREW - Button Head (Allen)
(Superseded to 3274-65)

$1.99

$

Usually ships in 3-6 days

0

37

Toro AU109018

CLIP - Ground Stake

$

$

Currently unavailable

38

Toro AU109357

ROD-PROP, SEAT

$

$

Currently unavailable

39

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

40

Toro AU432-612

PIN - Cotter .094 x .75 in ZN

$0.99

$

Usually ships in 3-6 days

0
