DD 2024 - Toro EarthPro Directional Drill (2007) MUD PUMP - 30 GPM Parts Diagram

EarthPro Directional Drill

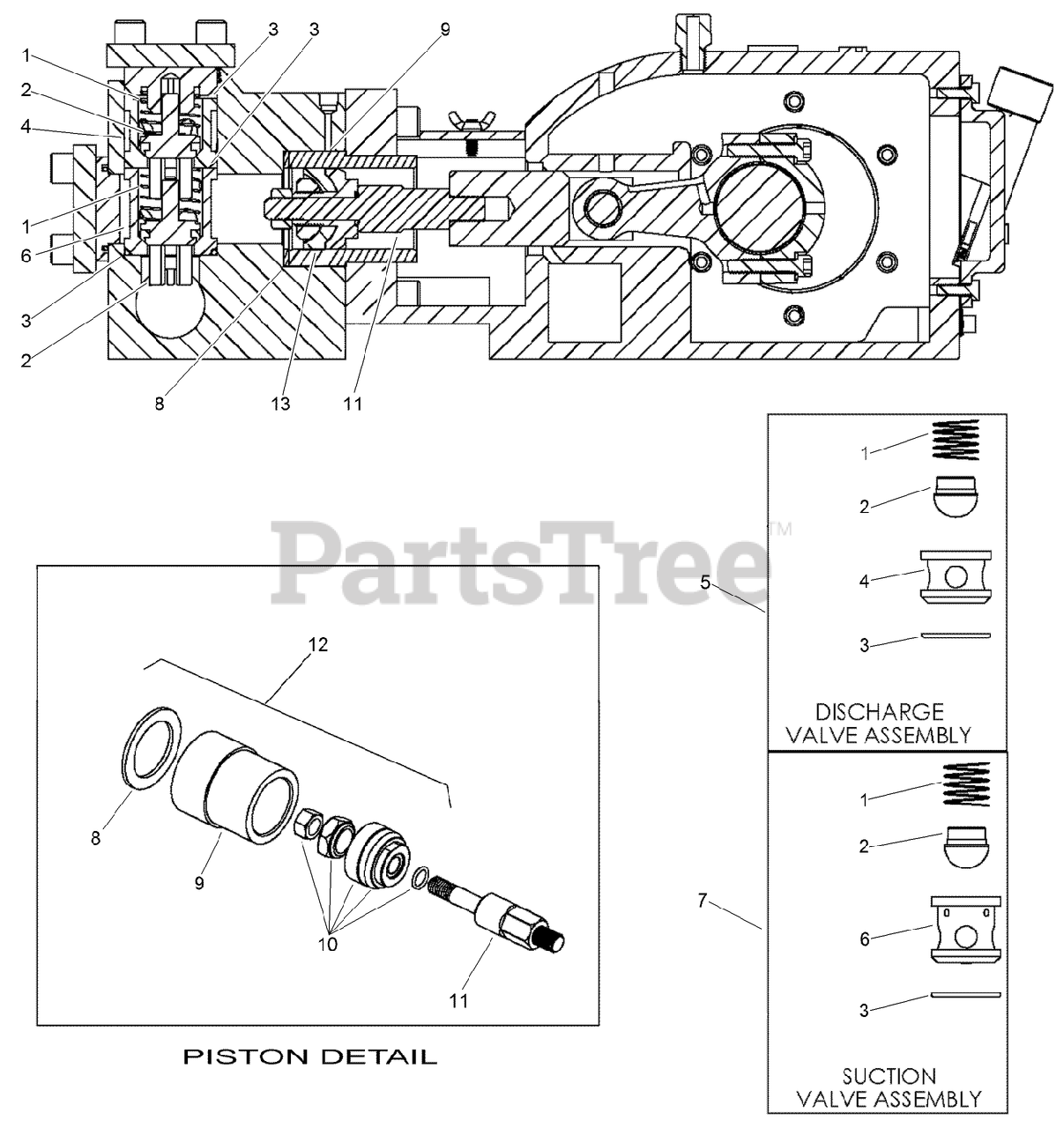

MUD PUMP - 30 GPM Parts Diagram

  • Title

Toro AU14MP4113

MUD PUMP ASM
(Superseded to 127-5314)

Note: Not illustrated

$

$

Not available

1

Toro AU112479

SPRING-VALVE

$

$

Currently unavailable

2

Toro AU112480

VALVE-BODY

$

$

Currently unavailable

3

Toro AU112481

O RING-SEAT, VALVE

$

$

Currently unavailable

4

Toro AU112482

SEAT-VALVE, DISCHARGE

$

$

Currently unavailable

5

Toro AU112483

DISCHARGE VALVE ASM

$

$

Currently unavailable

6

Toro AU112484

SEAT-VALVE, SUCTION

$

$

Currently unavailable

7

Toro AU112485

SUCTION VALVE ASM

$

$

Currently unavailable

8

Toro AU112486

Liner Gasket

$

$

Currently unavailable

9

Toro AU112487

LINER-PISTON, CERAMIC

$

$

Currently unavailable

10

Toro AU112488

HSN PISTON KIT

$

$

Currently unavailable

11

Toro AU112489

ROD-EXTENSION, PISTON

$

$

Currently unavailable

12

Toro AU112490

GOLD PISTON KIT

$

$

Currently unavailable

13

Toro AU112497

CUP-PISTON, GOLD

$

$

Currently unavailable
