DD 2024 - Toro EarthPro Directional Drill (2007) MAIN RELAY PANEL MACHINES WITH SERIAL NUMBERS DD202480143 AND PRIOR Parts Diagram

EarthPro Directional Drill

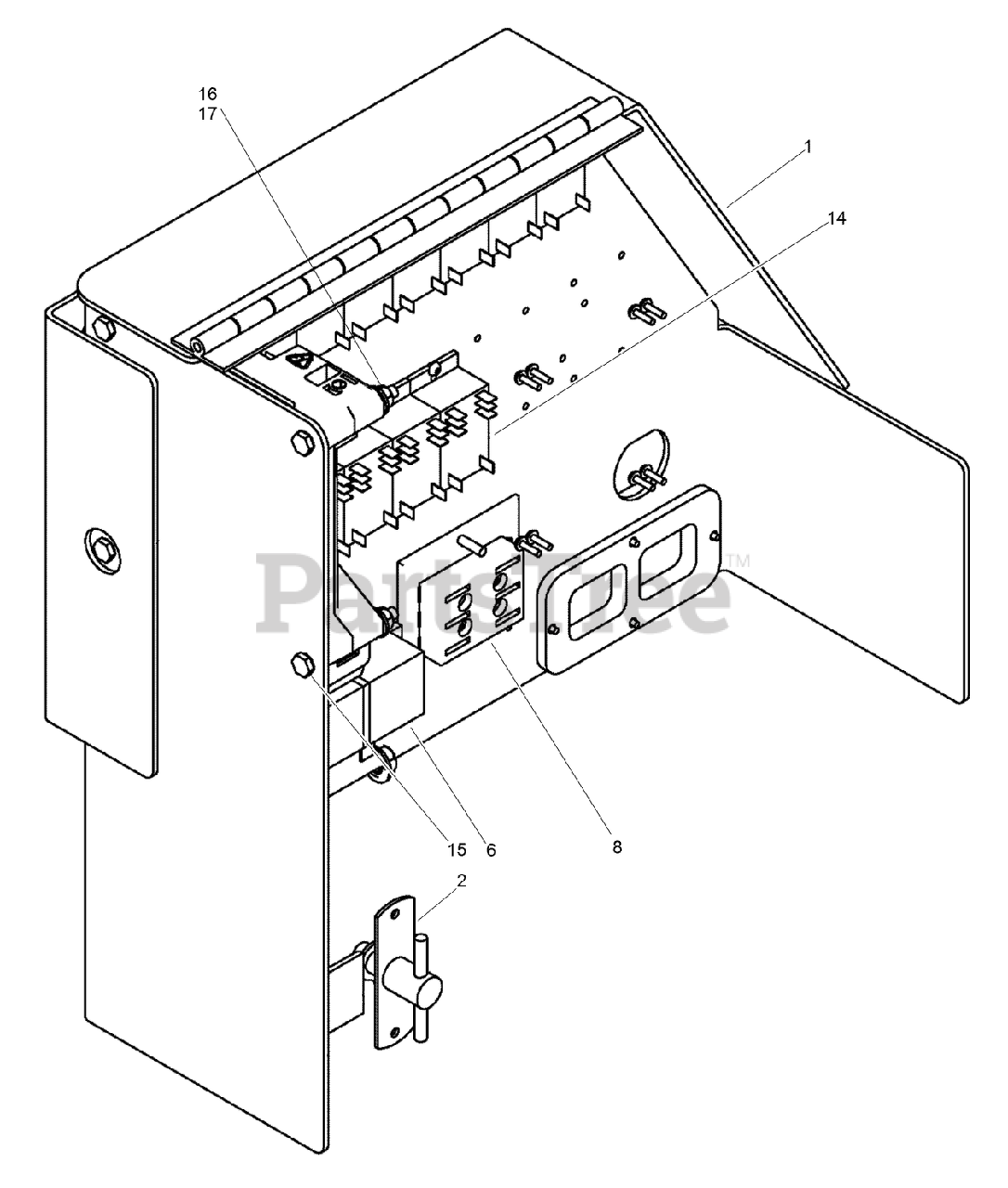

MAIN RELAY PANEL MACHINES WITH SERIAL NUMBERS DD202480143 AND PRIOR Parts Diagram

  • Title

Toro AU20GB9712

ASSEMBLY - Relay Panel

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU12GB2351

BOX - Electrical

$

$

Currently unavailable

2

Toro AUL102515

LATCH

$147.99

$

Usually ships in 3-6 days

0

Toro AU103217

CONTROLLER-MICRO, 50-PIN

Note: Not illustrated

$4159.99

$

Usually ships in 3-6 days

0

Toro AU110988

PROGRAM

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU100876

SCREW-FLANGE
(Superseded to 108-1531)

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

4

Toro AU100527

NUT-FLANGE, NYLOCK

Note: Not illustrated

$1.49

$

Usually ships in 3-6 days

0

5

Toro AU110994

CONTROLLER - Module B, Programmed

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU8EP48283

RELAY - Power, 12 VDC

$

$

Currently unavailable

7

Toro AU8EP29105

ALARM-BACKUP

Note: Not illustrated

$

$

Currently unavailable

8

Toro AU8EF40006

FUSEHOLDER

$

$

Currently unavailable

10

Toro AU8ET02001

TERM STRIP

Note: Not illustrated

$

$

Currently unavailable

11

Toro AU8EO51505

RESISTOR - 5 Ohm

Note: Not illustrated

$

$

Currently unavailable

12

Toro AU8EO51518

RESISTOR - 7.5 Ohm

Note: Not illustrated

$

$

Currently unavailable

13

Toro AU8EO51519

RESISTOR - 12 Ohm

Note: Not illustrated

$

$

Currently unavailable

9

Toro AU8EF41020

FUSE - 20 Amp

Note: Not illustrated

$

$

Currently unavailable

14

Toro AU8EP48253

RELAY - 2 Pole 12 VDC Panel Mount

$

$

Currently unavailable

15

Toro AU326-440

BOLT - Hex Hd .250 x 2.50 GR8 PHC

$

$

Currently unavailable

16

Toro AU495-11028

WASHER-FLAT

$

$

Not available

17

Toro AU425-104

NUT - Hex .250 - 20 GR5 ZND

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU8EF41002

FUSE - 2 Amp

Note: Not illustrated

$

$

Currently unavailable

19

Toro AU8EP02262

TERM STUD - 3/8 Black

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU8EP02263

TERM STUD - 3/8 Red

Note: Not illustrated

$

$

Currently unavailable

21

Toro AU8EP51102

DIODE - 40V 9 Amp

Note: Not illustrated

$

$

Currently unavailable

22

Toro AU8ET35401

TERM RING - Nylon

Note: Not illustrated

$

$

Currently unavailable

23

Toro AU8EC61019

FEMALE PLUG

Note: Not illustrated

$

$

Currently unavailable

24

Toro AU8EC62019

RECEPTICLE - Male

Note: Not illustrated

$

$

Currently unavailable

25

Toro AU8ET65001

DISCONNECT

Note: Not illustrated

$

$

Currently unavailable

26

Toro AU8ET35701

TERM RING - Nylon

Note: Not illustrated

$

$

Currently unavailable

27

Toro AU8EP51101

DIODE - 400V 1 Amp

Note: Not illustrated

$

$

Currently unavailable

28

Toro AU8EC61020-L

BOOT - 70 Pin Connector

Note: Not illustrated

$

$

Currently unavailable

29

Toro AU8ET64003

DISCONNECT - 16-14 Nylon Blue

Note: Not illustrated

$

$

Currently unavailable

30

Toro AU8ET64104

DISCONNECT - Female

Note: Not illustrated

$

$

Currently unavailable

31

Toro AU8ET44201

TERM FORK - Nylon

Note: Not illustrated

$

$

Currently unavailable

32

Toro AU8ET69001

TERM-Y ADAPTER

Note: Not illustrated

$

$

Currently unavailable

33

Toro AU8ET55003

BUTTSPLICE

Note: Not illustrated

$

$

Currently unavailable

34

Toro AU8EC69009

PIN CONTACT

Note: Not illustrated

$

$

Currently unavailable

35

Toro AU8ET34301

TERM RING - Nylon

Note: Not illustrated

$

$

Currently unavailable

36

Toro AU8ET45401

TERM FORK - Nylon

Note: Not illustrated

$

$

Currently unavailable

37

Toro AU8EC61033

PLUG - 3 Socket

Note: Not illustrated

$

$

Currently unavailable

38

Toro AU8EC61033-L

SECONDARY LOCK

Note: Not illustrated

$

$

Currently unavailable

39

Toro AU8EC69008

SOCKET-CONNECTOR - SZ 16-18
(Superseded to AU30-1260-8040)

Note: Not illustrated

$

$

Not available

40

Toro AU7ES02206

COATING - Conform

Note: Not illustrated

$

$

Currently unavailable

41

Toro AU109970

PIN-SNAP RING

Note: Not illustrated

$

$

Currently unavailable

42

Toro AU8EC69010

SOCKET CONTACT

Note: Not illustrated

$

$

Currently unavailable

43

Toro AU425-106

NUT-Hex 0.375-16 GR5 ZND

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

44

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

45

Toro AU760-34313

SCREW - Pan Hd Machine

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

46

Toro AU440-11016

SCREW - PHD Type 1, #10 - 24 x 1.00 CST ZND

Note: Not illustrated

$

$

Currently unavailable

47

Toro AU193-1004

NUT-#10-24 KEPS
(Superseded to 32149-7)

Note: Not illustrated

$0.99

$

In Stock, only 3 left!

0
