DD 2024 - Toro EarthPro Directional Drill (2007) LIFE JACKET SEVICE Parts Diagram

EarthPro Directional Drill

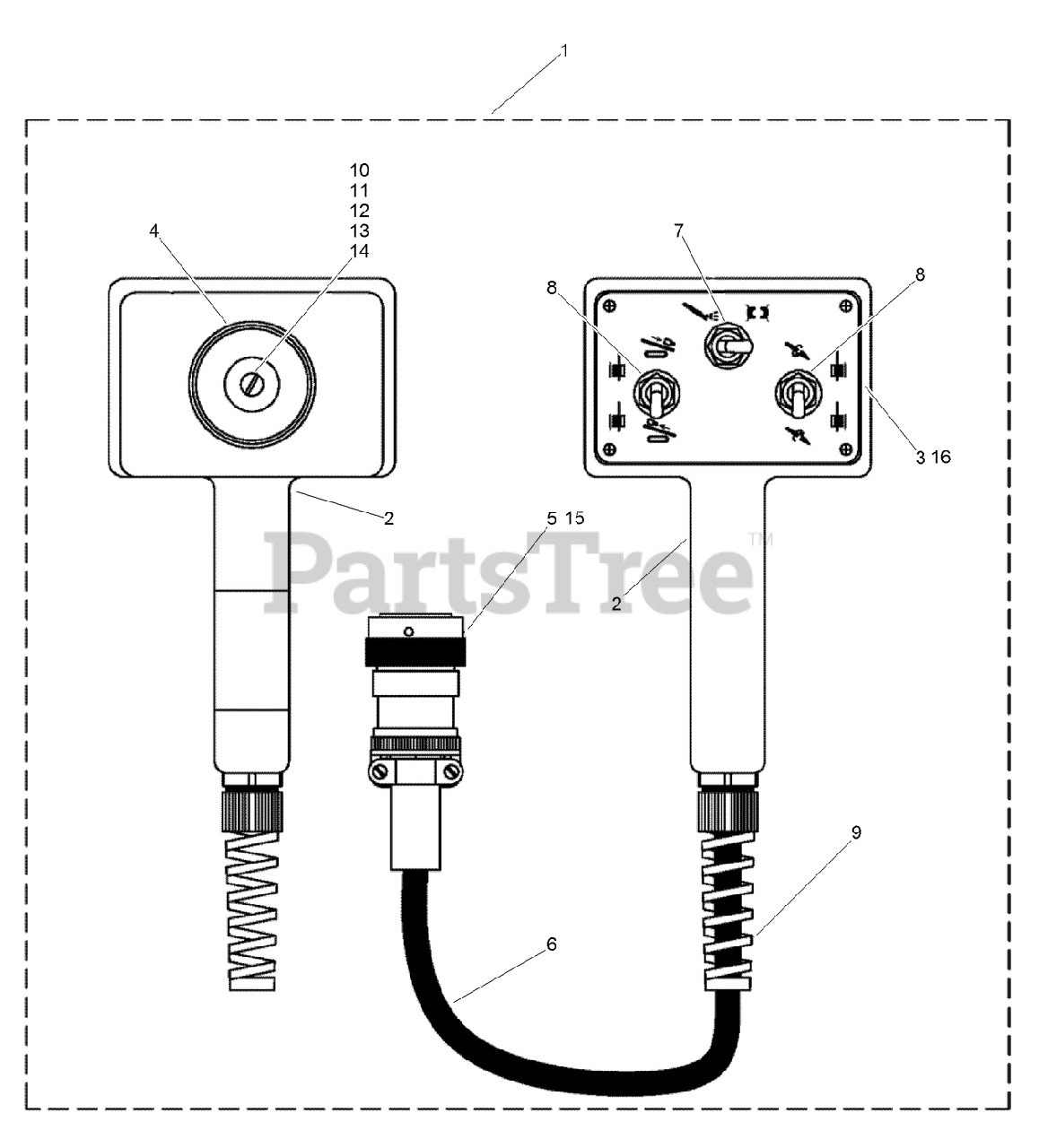

LIFE JACKET SEVICE Parts Diagram

  • Title

1

Toro AU32GB9820

CONTROL - Life Jacket

$

$

Currently unavailable

2

Toro AU8EN83005

HOUSING - Pendant

$

$

Currently unavailable

3

Toro AU32GB9821-1

PLATE - Mounting, Life Jacket

$

$

Currently unavailable

4

Toro AU8EH12002

MAGNET - Ceramic, 2.03 Diameter x .312 H

$

$

Currently unavailable

5

Toro AU8EC61016

PLUG - Female, with Clamp, 18-14

$

$

Currently unavailable

6

Toro AU7EC23108

CABLE - Type SDN, 18/10, 6 Feet

$

$

Currently unavailable

7

Toro AU8EO72003

SWITCH - Toggle, SPDT, On-Off-On, Seal

$

$

Currently unavailable

8

Toro AU8EO72004

SWITCH - Toggle, SPDT, (On)-Off-(On), Seal

$

$

Currently unavailable

9

Toro AU8EP19321

CORD GRIP - With Spiral, .24-.47, Black

$

$

Currently unavailable

10

Toro AU8HN32004

NUT - Hex, #10-32, 303 Stainless Steel

$

$

Currently unavailable

11

Toro AU8FW31004

WASHER - Flat, #10, 303 Stainless Steel

$

$

Currently unavailable

12

Toro AU8FW01203

WASHER - Flat, 1/4 inch Stainless Steel

$

$

Currently unavailable

13

Toro AU8LW60096

WASHER - Lock, Split Type, No. 10
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

14

Toro AU8MS32406

SCREW - Machine, Slotted Pan Head

$

$

Currently unavailable

15

Toro AU30-1260-8040

SOCKET - Connector, SZ 16-18

$

$

Not available

16

Toro AU32GB9821-2

OVERLAY

$

$

Currently unavailable
