DD 2024 - Toro EarthPro Directional Drill (2007) HYDRAULIC FITTINGS SERIAL NUMBERS DD202490151 AND LATER Parts Diagram

EarthPro Directional Drill

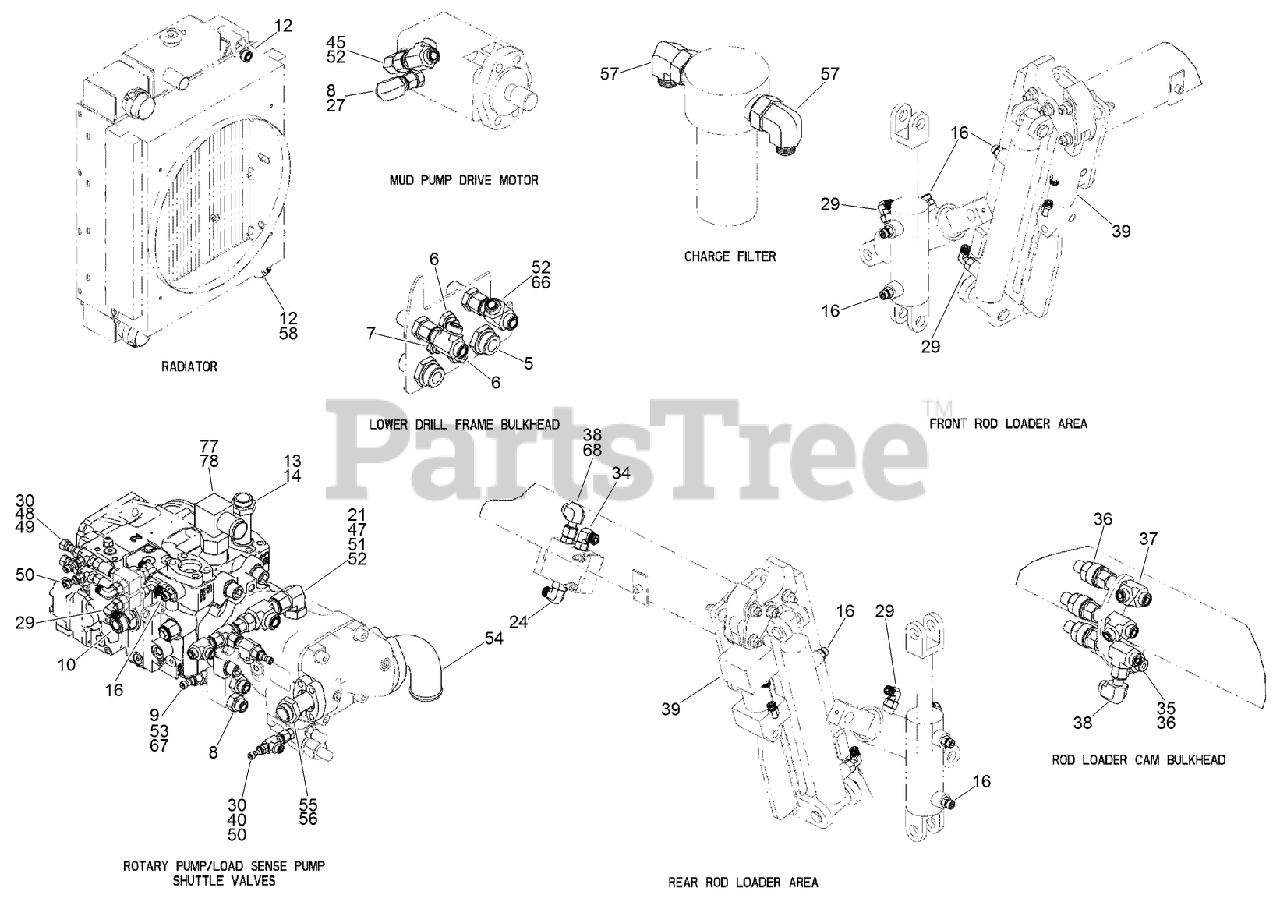

HYDRAULIC FITTINGS SERIAL NUMBERS DD202490151 AND LATER Parts Diagram

  • Title

5

Toro AU114276

KIT - Hydraulic Fittings (not shown)

$

$

Currently unavailable

6

Toro AU8OA31208

CONNECTION - Straight, -12 ORFS / -8 ORB

$

$

Currently unavailable

Toro AU8OA90808

CONNECTION - Straight, Bulkhead, ORFS

Note: Not illustrated

$

$

Currently unavailable

7

Toro AU8OA90404

FITTING-STRAIGHT

$

$

Currently unavailable

8

Toro AU8OA30810

CONNECTION - Straight, -8 ORFS / -10 ORB

$

$

Currently unavailable

9

Toro AU8OB30606

CONNECTION - Branch Tee, -6 ORFS / -6 ORB

$

$

Currently unavailable

10

Toro AU8OA31212

CONNECTION - Straight, -12 ORFS / -12 ORB

$

$

Currently unavailable

12

Toro AU8OA31216

CONNECTION - Straight, -12 ORFS / -16 ORB

$

$

Currently unavailable

13

Toro AU8OS51616

ADAPTER-FLANGE, STRAIGHT

$

$

Currently unavailable

14

Toro AU8TS46216

KIT - Split Flange, -16 SAE, w/O-Rings and Bolts

$

$

Currently unavailable

16

Toro AU8OA30406

CONNECTION - Straight, -4 ORFS / -6 ORB

$

$

Currently unavailable

21

Toro AU8OA80610

CONNECTION - 90 Degree, -4 ORFS / -4 ORB

$

$

Not available

24

Toro AU8OL30608

CONNECTION - 90 Deg, -6 ORFS / -8 ORB

$

$

Currently unavailable

27

Toro AU8OL80808

CONNECTION - 90 Deg, -8 ORFS / -8 ORFS

$

$

Currently unavailable

29

Toro AU8OL30406

CONNECTION - 90 Deg, -4 ORFS / -6 ORB

$

$

Currently unavailable

30

Toro AU8OR80404

CONNECTION - Run Tee, -4 ORFS / -4 ORFS

$

$

Currently unavailable

34

Toro AU8OL30606

CONNECTION - 90 Deg, -6 ORFS / -6 ORB

$

$

Currently unavailable

35

Toro AU8OA90606

CONNECTION - Straight, Bulkhead, ORFS

$

$

Currently unavailable

36

Toro AU8SW00022

CONNECTION - Swivel, -6 ORFS

$

$

Currently unavailable

37

Toro AU8OR90606

CONNECTION - Bulkhead, Run Tee, -6 ORFS / -6 ORFS

$

$

Not available

38

Toro AU8OL80606

CONNECTION - 90 Deg, -6 ORFS / -6 ORFS

$

$

Currently unavailable

39

Toro AU8OL10404

CONNECTION - 90 Degree, -4 ORFS / -4 NPT

$

$

Currently unavailable

40

Toro AU8OA30404

CONNECTION - Straight, -4 ORFS / -4 ORB

$

$

Currently unavailable

45

Toro AU8OL31010

CONNECTION - 90 Deg, -10 ORFS / -10 ORB

$

$

Currently unavailable

47

Toro AU8OR80606

CONNECTION - Run Tee, -6 ORFS / -6 ORFS

$

$

Currently unavailable

48

Toro AU8OAA0406

FITTING-STRAIGHT

$

$

Currently unavailable

49

Toro AU8SA60404

FITTING-STRAIGHT

$39.99

$

Usually ships in 3-6 days

0

50

Toro AU8QD11504

NIPPLE-QD, DIAGNOSTIC

$

$

Currently unavailable

51

Toro AU8OL31012

CONNECTION - 90 Degree, -10 ORFS / -12 ORB (Serial Numbers DD202480146 and Thereafter)

$

$

Currently unavailable

52

Toro AU8OR81010

FITTING-TEE

$

$

Currently unavailable

53

Toro AU8QD14506

NIPPLE-QD, DIAGNOSTIC

$

$

Currently unavailable

54

Toro AU8HF18501

HOSE END - Formrite ORFC - 32 - 90

$

$

Currently unavailable

55

Toro AU8TS46116

SPLIT FLANGE KIT

$

$

Currently unavailable

56

Toro AU8OS11616

ADAPTER-FLANGE, STRAIGHT

$

$

Currently unavailable

57

Toro AU8OL30812

CONNECTION - 90 Degree, -8 ORFS / -12 ORB

$

$

Currently unavailable

58

Toro AU8OE81212

CONNECTION - 45 Degree, -12 ORFS / -12 ORFS

$

$

Currently unavailable

66

Toro AU8OA91010

CONNECTION - Straight, Bulkhead, ORFS

$

$

Currently unavailable

67

Toro AU8OA80406

CONNECTION, REDUCER, -4 ORFS / -7 ORFS

$

$

Currently unavailable

68

Toro AU8OA30606

CONNECTION - Straight, -6 ORFS / -6 ORB

$

$

Currently unavailable

76

Toro AU8OL81212

CONNECTION - 90 Deg, -12 ORFS / -12 ORFS

Note: Not illustrated

$

$

Currently unavailable

77

Toro AU91-2066-16-16S

FITTING-STRAIGHT

$

$

Currently unavailable

78

Toro AU217-166

FITTING-ELBOW, 90

$28.99

$

Usually ships in 3-6 days

0
