DD 2024 - Toro EarthPro Directional Drill (2007) HYDRAULIC FITTINGS SERIAL NUMBERS DD202490150 Parts Diagram

EarthPro Directional Drill

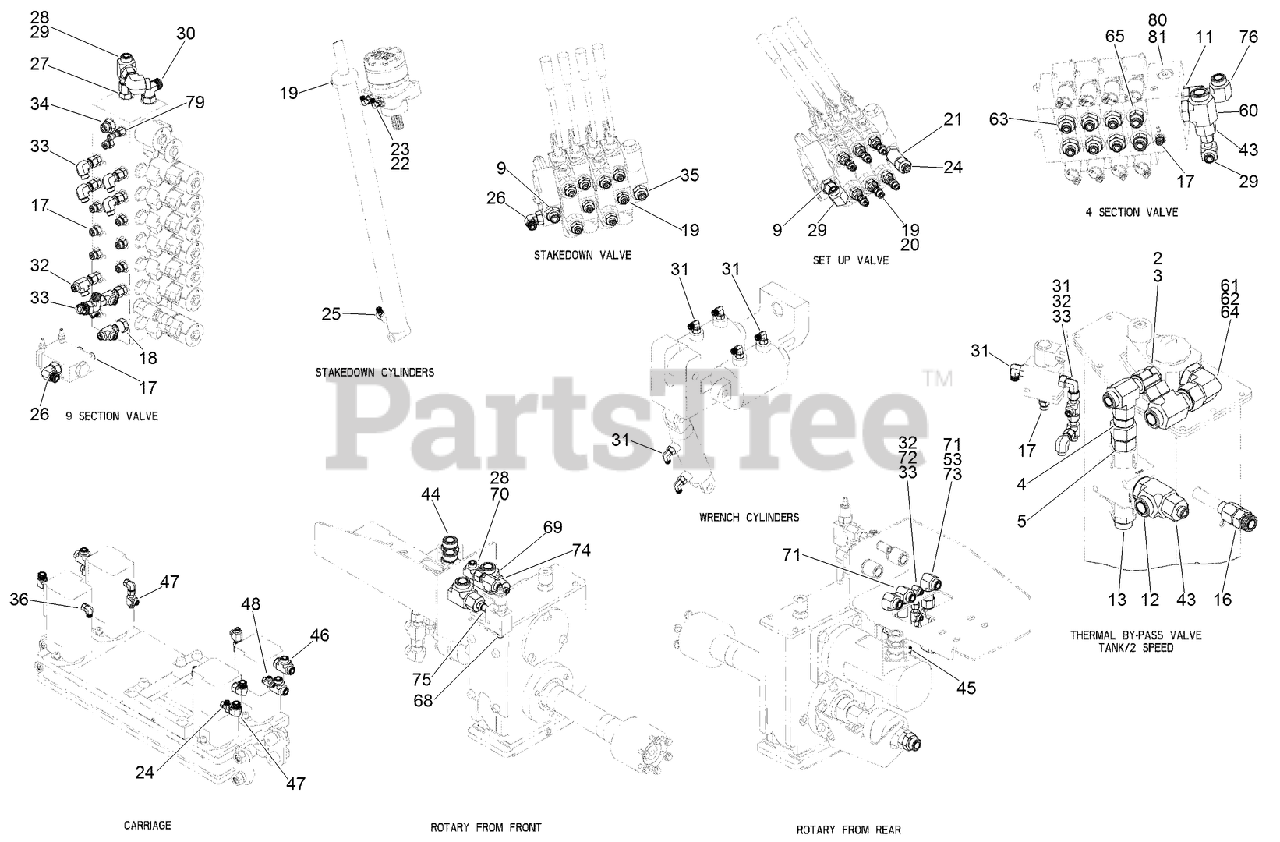

HYDRAULIC FITTINGS SERIAL NUMBERS DD202490150 Parts Diagram

  • Title

Toro AU20GB3201

KIT - Hydraulic Fittings (not shown)

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU8OA31208

CONNECTION - Straight, -12 ORFS / -8 ORB

$

$

Currently unavailable

3

Toro AU8OR81212

FITTING-TEE

$

$

Currently unavailable

4

Toro AU8OA01212

CONNECTION - Adapter, -12 ORB / -12 ORFS

$

$

Currently unavailable

5

Toro AU8SA31612

FITTING-STRAIGHT

$

$

Currently unavailable

9

Toro AU8OA30810

CONNECTION - Straight, -8 ORFS / -10 ORB

$

$

Currently unavailable

11

Toro AU8OA31212

CONNECTION - Straight, -12 ORFS / -12 ORB

$

$

Currently unavailable

12

Toro AU8OR31616

CONNECTION - Run Tee, -16 ORFS / -16 ORB

$

$

Currently unavailable

13

Toro AU8OA31216

CONNECTION - Straight, -12 ORFS / -16 ORB

$

$

Currently unavailable

16

Toro AU8TA61212

FITTING-STRAIGHT

$

$

Currently unavailable

17

Toro AU8OA30406

CONNECTION - Straight, -4 ORFS / -6 ORB

$

$

Currently unavailable

18

Toro AU112767

FITTING-STR,ORIF

$

$

Currently unavailable

19

Toro AU8OA30408

CONNECTION - Straight, -4 ORFS / -8 ORB

$

$

Currently unavailable

20

Toro AU111506

FITTING-STRAIGHT

$

$

Currently unavailable

21

Toro AU8OA41010

CONNECTOR

$

$

Currently unavailable

22

Toro AU8OL30404

CONNECTION - 90 Deg, -4 ORFS / -4 ORB

$

$

Currently unavailable

23

Toro AU8SA31004

REDUCER-STRAIGHT, THREADED

$

$

Currently unavailable

24

Toro AU8OA80610

CONNECTION - 90 Degree, -4 ORFS / -4 ORB

$

$

Not available

25

Toro AU8OL30408

CONNECTION - 90 Deg, -4 ORFS / -8 ORB

$

$

Currently unavailable

26

Toro AU8OL30608

CONNECTION - 90 Deg, -6 ORFS / -8 ORB

$

$

Currently unavailable

27

Toro AU8OA30808

CONNECTION - Straight, -8 ORFS / -8 ORB

$

$

Currently unavailable

28

Toro AU8OR80808

CONNECTION - Run Tee, -8 ORFS / -8 ORFS

$

$

Currently unavailable

29

Toro AU8OL80808

CONNECTION - 90 Deg, -8 ORFS / -8 ORFS

$

$

Currently unavailable

30

Toro AU8OL30808

CONNECTION - 90 Deg, -8 ORFS / -8 ORB

$

$

Currently unavailable

31

Toro AU8OL30406

CONNECTION - 90 Deg, -4 ORFS / -6 ORB

$

$

Currently unavailable

32

Toro AU8OR80404

CONNECTION - Run Tee, -4 ORFS / -4 ORFS

$

$

Currently unavailable

33

Toro AU8OL80404

CONNECTION - 90 Deg, -4 ORFS / -4 ORFS

$

$

Currently unavailable

34

Toro AU8OA30608

CONNECTION - Straight, -6 ORFS / -8 ORB

$

$

Currently unavailable

35

Toro AU8OA30610

CONNECTION - Straight, -6 ORFS / -10 ORB

$

$

Currently unavailable

36

Toro AU8OL30606

CONNECTION - 90 Deg, -6 ORFS / -6 ORB

$

$

Currently unavailable

43

Toro AU8OA80816

FITTING-REDUCER

$

$

Not available

44

Toro AU8OA31616

CONNECTION - Straight, -16 ORFS / -16 ORB

$

$

Currently unavailable

45

Toro AU8OA30806

CONNECTION - Straight, -8 ORFS / -6 ORB

$

$

Currently unavailable

46

Toro AU8OR31010

CONNECTION - Run Tee, -10 ORFS / -10 ORB

$

$

Currently unavailable

47

Toro AU8OL31010

CONNECTION - 90 Deg, -10 ORFS / -10 ORB

$

$

Currently unavailable

48

Toro AU8OR30404

CONNECTION - Run Tee, -4 ORFS / -4 ORB

$

$

Currently unavailable

49

Toro AU8OR80606

CONNECTION - Run Tee, -6 ORFS / -6 ORFS

Note: Not illustrated

$

$

Currently unavailable

53

Toro AU8OR81010

FITTING-TEE

$

$

Currently unavailable

60

Toro AU8OB31616

CONNECTION - Branch Tee, -16 ORFS / -16 ORB

$

$

Currently unavailable

61

Toro AU8OL31620

CONNECTION - 90 Degree, -16 ORFS / -20 ORB

$

$

Currently unavailable

62

Toro AU8OR81616

FITTING-TEE

$

$

Currently unavailable

63

Toro AU8OA30812

CONNECTION - Straight, -8 ORFS / -12 ORB

$

$

Currently unavailable

64

Toro AU8OA81216

FITTING-REDUCER

$

$

Currently unavailable

65

Toro AU8OA31012

CONNECTION - Straight, -10 ORFS / -12 ORB

$

$

Currently unavailable

68

Toro AU8OA30606

CONNECTION - Straight, -6 ORFS / -6 ORB

$

$

Currently unavailable

69

Toro AU8OR91616

FITTING-TEE, BULKHEAD

$

$

Currently unavailable

70

Toro AU8OR90808

CONNECTION - Run Tee, Bulkhead, -8 ORFS / -8 ORFS

$

$

Currently unavailable

71

Toro AU8OL91010

CONNECTION - 90 Degree, Bulkhead, -10 ORFS / -10 ORFS

$

$

Currently unavailable

72

Toro AU8OL90404

CONNECTION - 90 Degree, Bulkhead, -4 ORFS / -4 ORFS

$

$

Currently unavailable

73

Toro AU8OL81010

CONNECTION - 90 Degree, -10 ORFS / -10 ORFS

$

$

Currently unavailable

74

Toro AU8OA80616

FITTING-REDUCER

$

$

Not available

75

Toro AU8OA00606

CONNECTION - Straight, -6 ORFS / -6 ORB

$

$

Currently unavailable

76

Toro AU8OL81212

CONNECTION - 90 Deg, -12 ORFS / -12 ORFS

$

$

Currently unavailable

79

Toro AU8QD63501

COUPLING - Quick Disconnect

$

$

Currently unavailable

80

Toro AU8OA60020

CONNECTION - Straight, -8 ORFS / -8 ORB

$

$

Currently unavailable

81

Toro AU8QD11508

COUPLING - Quick Disconnect

$

$

Currently unavailable
