DD 2024 - Toro EarthPro Directional Drill (2007) FUEL TANK Parts Diagram

EarthPro Directional Drill

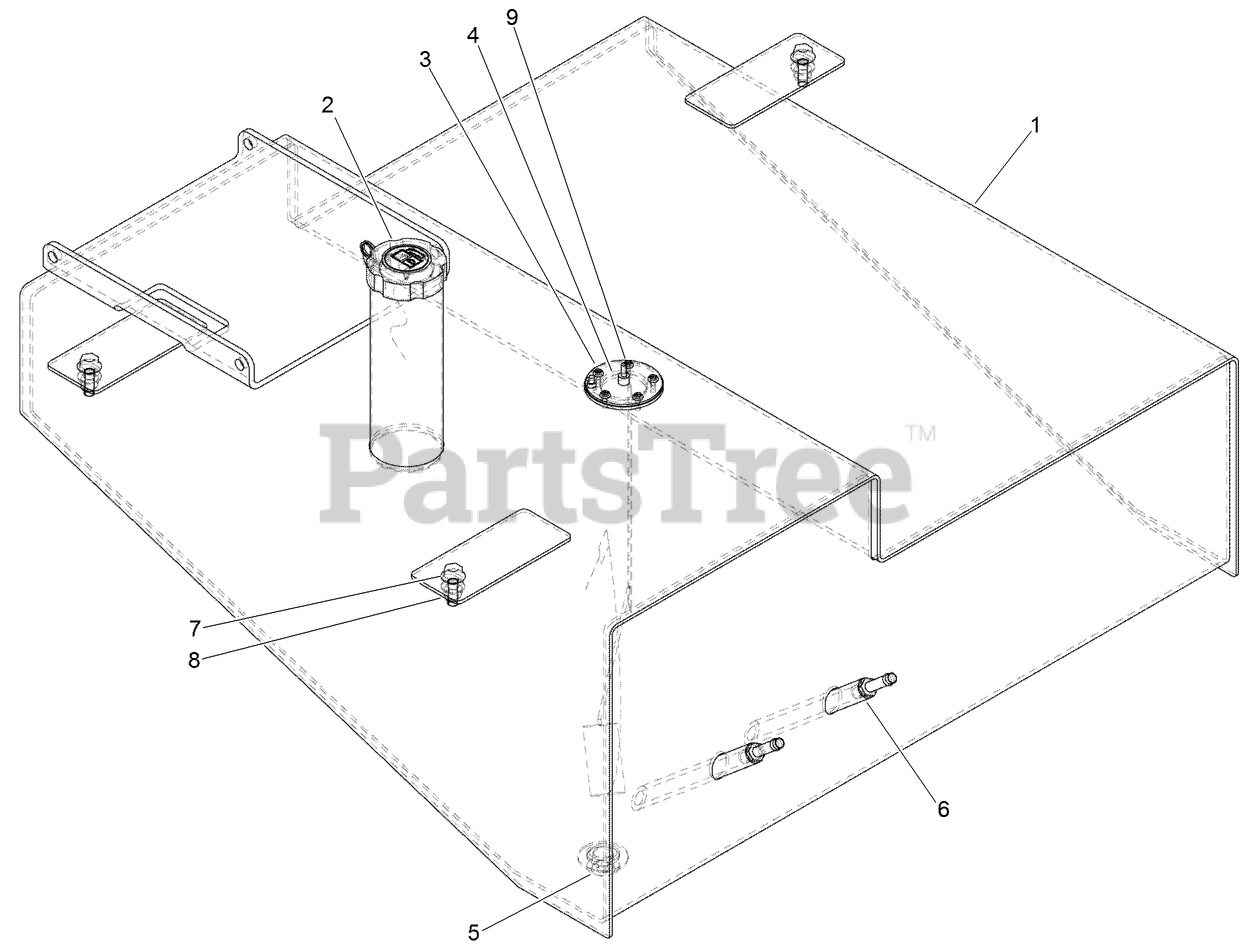

FUEL TANK Parts Diagram

  • Title

Toro AU111265

ASSEMBLY - Fuel Tank

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU111011

TANK - Fuel

$

$

Currently unavailable

2

Toro AU102188

CAP-DIESEL FUEL W/ LOCK

$

$

Currently unavailable

3

Toro AU528359R4

GASKET-SENDING UNIT

$

$

Not available

4

Toro AU118484A1

SENDER-FUEL

$

$

Not available

5

Toro AU217-439

PLUG-PIPE, HEX SOCKET

$1.99

$

Usually ships in 3-6 days

0

6

Toro AU217-151

STEM-STRAIGHT, BEAD

$28.99

$

Usually ships in 3-6 days

0

7

Toro AU100877

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

8

Toro AU100527

NUT-FLANGE, NYLOCK

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU760-34313

SCREW - Pan Hd Machine

$0.99

$

Usually ships in 3-6 days

0
